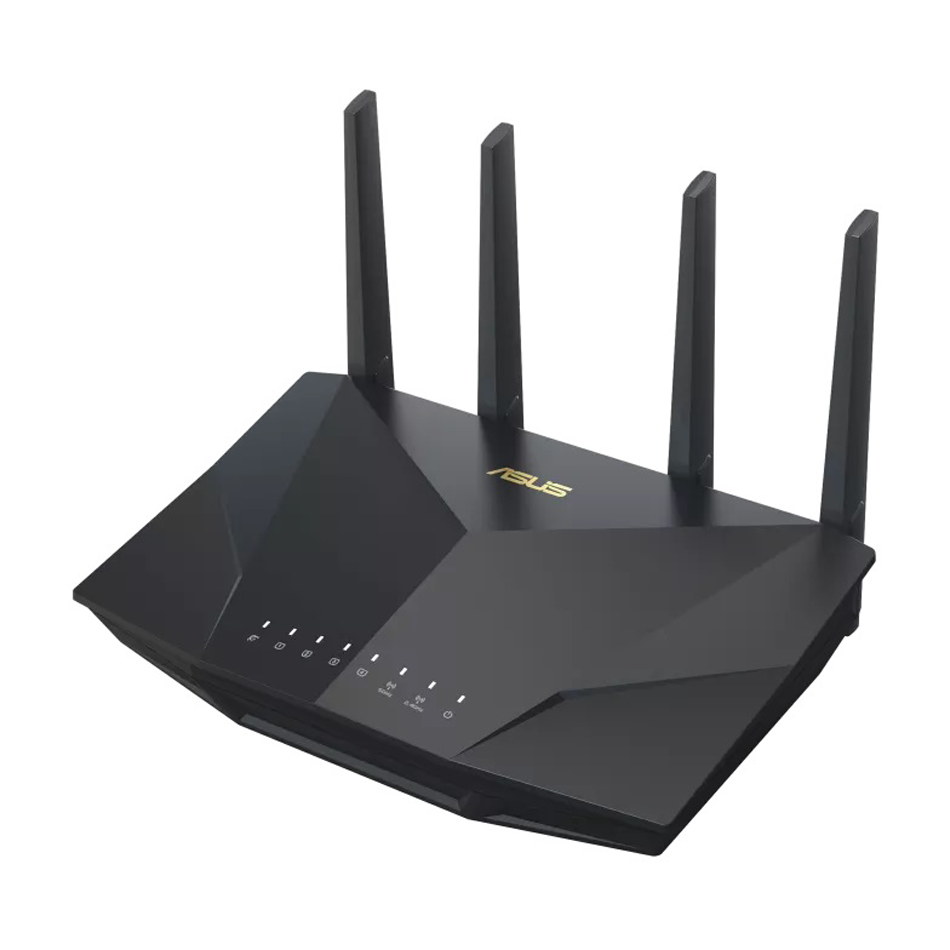

ASUS AX5400 Dual Band WiFi 6 Router - Black

ASUS AX5400 Dual Band WiFi 6 (802.11ax) Extendable Router

AX5400 Dual Band WiFi 6 (802.11ax) Extendable Router, Included built-in VPN, AiProtection Pro Network Security, Parental Control, Instant Guard, AiMesh-Compatible

Compelling Speed,

Reliable Connectivity

With comprehensive built-in VPN network protection provided by advanced ASUS security tech, RT-AX5400 can definitely exceed your imagination of networking experience and work perfectly with your existing WiFi devices*! Let’s gear up for ultra-secure connectivity and powerful performance!

*To benefit from WiFi 6 features, the WiFi client needs to be WiFi 6 capable

Warp-speed WiFi

RT-AX5400 leverages WiFi 6 to deliver faster and more stable internet to the growing multitude of smart devices in your home. The faster speed, higher network efficiency and capacity free you to connect as many devices as you need, while enjoying top WiFi speeds.

*The data compares speed of 4x4 WiFi 6 solution on 5GHz band to speed of 4x4 WiFi 5 solution on 5GHz band.

A Safer Browsing Experience

The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won't affect router performance. It can even filter explicit content from search engine results to protect your kids online.

*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.

Make Free WiFi Secure with Instant Guard

The free public WiFi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure, and hackers can easily capture any digital information you send to the internet . The ASUS Instant Guard mobile app gives you one tap secure internet access via your RT-AX5400 router adding rock-solid security to any public WiFi connections you use. Our newly upgraded app even lets you easily share this worry-free network connection with your family and friends through a URL link.

Enhanced Security Anywhere

Complete Security for Your Home Network

Alongside the latest WPA3 security protocol, the ASUS RT-AX5400 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.

Network Control in Your Way

Easily setup and manage your RT-AX5400 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.

Simple but Complete Functions

The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AX5400 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.

Advanced Controls

If you want to take advantage of the advanced capabilities of the RT-AX5400, its powerful web interface gives you access to at-a-glance status reports and in-depth settings via a handy dashboard. You can use it to monitor web traffic, set up your router's QoS settings, manage ports, configure security features, and much more.

Flexible and Scalable Wireless AiMesh Networking

Does your router leave you with WiFi dead spots? RT-AX5400 supports ASUS AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!

Specifications

Model

• RT-AX5400

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)

Product Segment

• AX5400 ultimate AX performance : 574+4804 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 400 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 3466 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

• External antenna x 4 (non-detachable)

Processor

• 1.5 GHz tri-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4G Hz / 5 GHz

Operating Mode

• Wireless router mode
• Access point mode
• Media bridge mode
• Repeater mode
• AiMesh node mode

I/O Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
• USB 3.2 Gen 1 x 1

Buttons

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1
• 2.4G x 1
• 5G x 1
• LAN x 4
• WAN x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 1.75 A current

Package Content

• RT-AX5400 WiFi router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight (g)

• 612.4g

Product Dimensions

• 161.05*226.23*160.23mm

AiMesh

• AiMesh

                    • Primary AiMesh Router

                    • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."

Safe Browsing

• Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."
• • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection Time Limit
• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security AiProtection

• WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• -- Maximum Bandwidth Limiter Rule : 32
• Traditional QoS
• -- Maximum Traditional QoS Rule : 32
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Traffic Analysis Period : Daily, Weekly, Monthly
• • Website History

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G / 4G LTE dongle
• Port forwarding
• • Maximum Port Forwarding Rule : 64
• Port triggering
• • Maximum Port Triggering Rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Manually Assign IP Address
• • Maximum Manually Assign IP Address Rule : 64
• Wake on LAN (WOL)

Wireless

• MU-MIMO
• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : 64
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
