ASUS PCE-AXE59BT AXE5400 WiFi 6E PCI-E Adapter with 2 External Antennas and Magnetized Base

ASUS PCE-AXE59BT AXE5400 WiFi 6E PCI-E Adapter with 2 External Antennas and Magnetized Base

The WiFi 6E Leader

ASUS provides a total solution for the latest WiFi 6E standard, from routers to wireless PCIe® cards. With carefully designed engineering and supporting software, the ASUS WiFi 6E total solution ensures optimized capabilities and performance.

* PCE-AXE59BT only supports PCI-Express x1 standard,

please install the adapter in PCI-e x1 slot.

Least Congested WiFi

ASUS PCE-AXE59BT is a WiFi 6E PCIe® card that allows your PC to connect to a WiFi 6E router via the dedicated 6 GHz band. This means it will not compete for bandwidth with non-WiFi 6E devices. The 6 GHz band provides up to seven extra 160 MHz channels, providing more bandwidth, more flexibility, and less congestion.

Ultrafast WiFi 6E

Desktop Upgrade

With WiFi 6E's 6 GHz technology and wide 160 MHz channels, PCE-AXE59BT delivers wireless speeds that are up to 4.6X faster* than WiFi 5 devices, making it perfect for even the most bandwidth-demanding tasks.

*Comparison based on a 2x2 160 MHz WiFi 6E PCIe card versus a 2x2 80 MHz WiFi 5 PCIe card

Low Latency. Fast WiFi.

PCE-AXE59BT adds powerful OFDMA and MU-MIMO functionality your PC. Instead of making your PC wait in turn with other connected devices when transferring wireless data to the router, these technologies allow each device's data to be sent simultaneously. The result is increased network efficiency and lower latency for maximum WiFi performance.

Instant Bluetooth® Upgrade

Slot PCE-AXE59BT into your PC for an instant upgrade to the latest Bluetooth® 5.2 technology, and enjoy up to 2X-faster transmit speeds and 4X-greater range compared to Bluetooth 4.2. Interference is also reduced compared to Bluetooth 5.0. Your PC will enjoy fast and stable connections to all your wireless peripherals.

Better WiFi with Optimal Antenna Placement

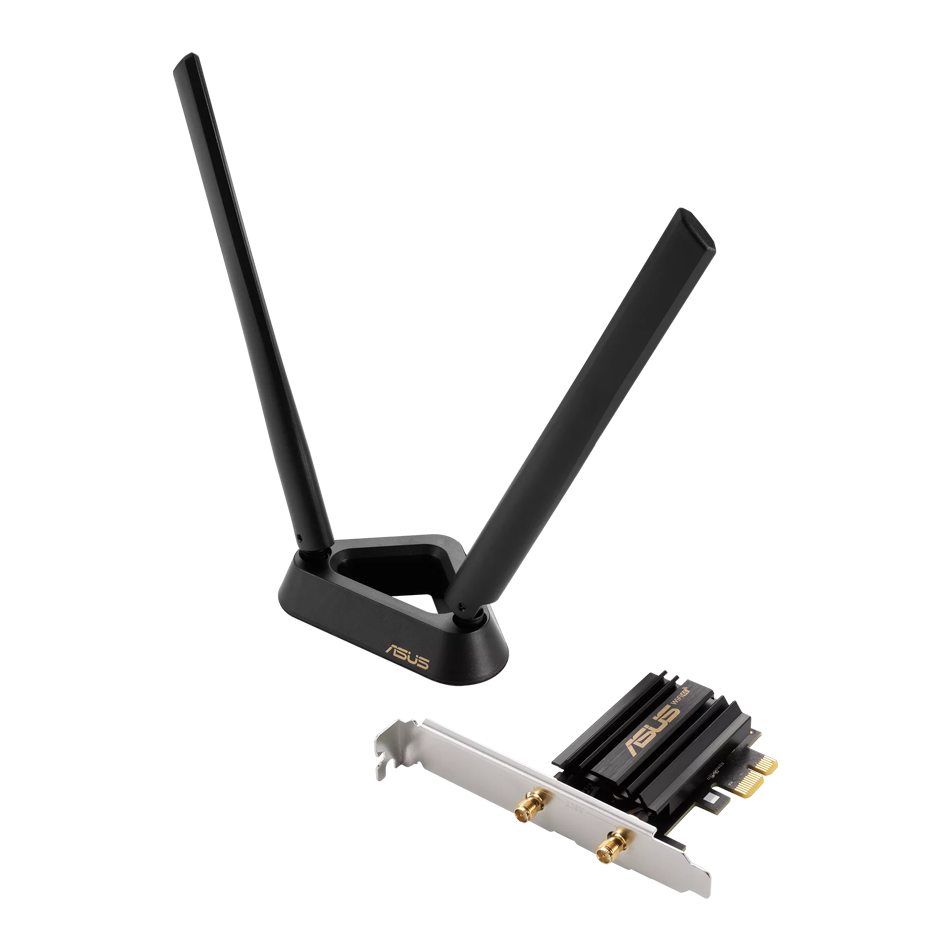

PCE-AXE59BT comes with an external transceiver that allows you to position the antennas outside of your PC chassis, and adjust their angle for less interference and optimal signal reception. The magnetized base allows even more flexible placement.

Enhanced Network

Security with WPA3

PCE-AXE59BT uses the WPA3 WiFi security protocol, providing your PC with an extra layer of protection against external attacks to give you added peace of mind.

Specifications:-

Network Standard

• Bluetooth® 5.2
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• WiFi 6E (802.11ax)

Bluetooth

• 5.2

Interface

• PCI-Express x 1

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 1733 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
• WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

Operating Frequency

• 2.4GHz / 5GHz / 6GHz

OS Support

• OS Support : Windows 11 64-bit
• Windows 10 64-bit (support 2.4GHz & 5GHz band only)

Package content

• ASUS PCE-AXE59BT WLAN Card x1
• Low Profile Bracket x1
• Motherboard USB Cable x1
• Antenna Base
• Quick Start Guide

Product Weight (g)

• 78.4g
