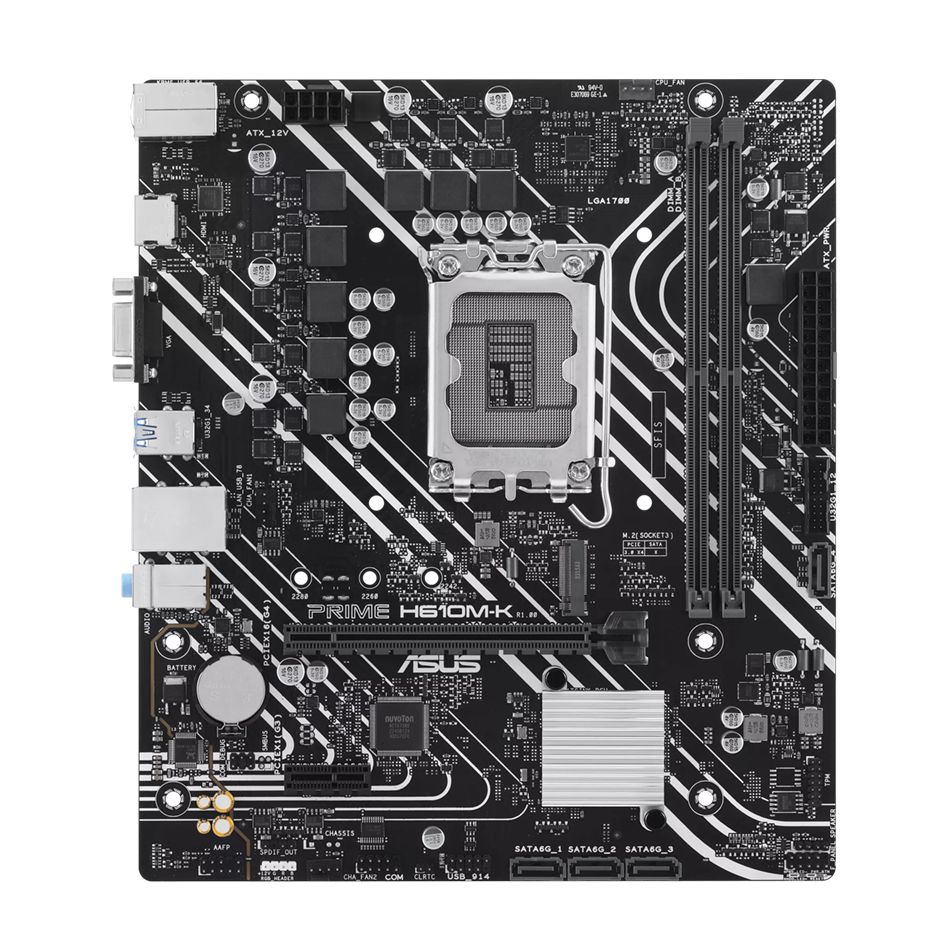

ASUS PRIME H610M-K DDR5 Motherboard - Black

ASUS PRIME H610M-K DDR5 Micro-ATX Motherboard - Black

Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Cooler by Design

Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE

Prime H610 series are built to handle the additional cores and increased bandwidth of 13th & 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Memory

DDR5 Performance

Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME H610M-K, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For those who want to fly past stock DDR5 speeds, the PRIME H610M-K is primed and ready for enthusiast-grade kits courtesy of Intel® Extreme Memory Profile (XMP) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

Storage

M.2 slot (up to 32 Gbps)

PRIME H610M-K offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

* Actual transmission speeds will be lower than the theoretical maximum speed.

Connectivity

PCIe 4.0

Prime H610 motherboards are designed specifically for 13th & 12th Generation Intel® Core™ CPUs and offer PCIe 4.0 connectivity for GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalization

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Specifications

Model

• PRIME H610M-K

CPU

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x VGA port
• 1 x HDMI™ port**
• * Graphics specifications may vary between CPU types.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® 13th & 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel® H610 Chipset
• 1 x PCIe 3.0 x1 slot
• - To ensure compatibility of the device installed.

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel® H610 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 4 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x VGA port
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS Lighting Control
• - RGB header

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - Fan Xpert 2+
• AI Suite 3
• - EPU
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 Anchor
• Documentation
• 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor
• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
