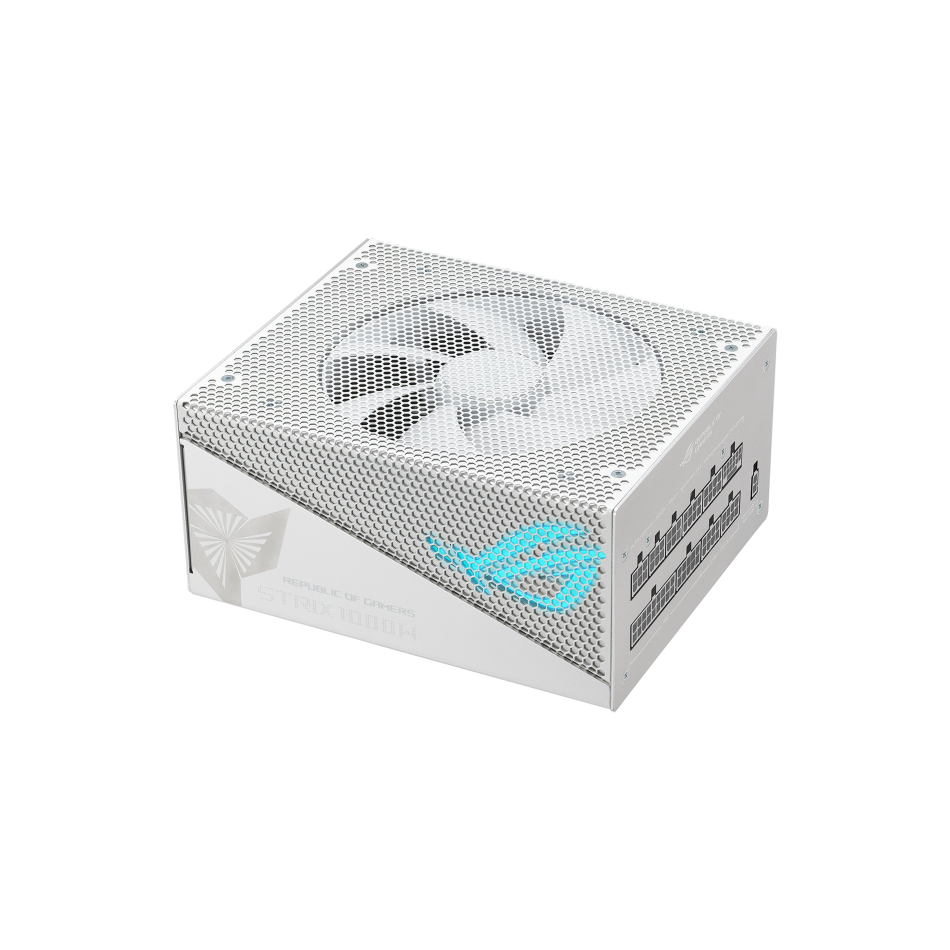

ASUS ROG STRIX GAMING 1000G 1000W AURA Power Supply - White

ASUS ROG STRIX GAMING 1000W - GEN5.0 GOLD Fully Modular AURA Power Supply Unit - White

ROG Strix Gold Aura White Edition

Exude Power

The ROG Strix 1000W Gold Aura White Edition combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.

COOLING

Aluminum Case

Built to run cool

The ROG Strix 1000W Gold Aura White Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design

Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura White Edition, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings

2x longer lifespan

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology

Quiet intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 60% or below.

ENGINEERING

80 Plus Gold Certification

Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura White Edition earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Lambda A+ Certification

Quietly deviant

On average, ROG Strix 1000W Gold Aura White Edition emits less than 20 dB of noise – earning a coveted Cybenetics Lambda A+ certification.

ATX 3.0 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura White Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.

EXPERIENCE

Aura Sync Outshine the competition

Addressable RGB lighting is built right in to the ROG Strix 1000W Gold Aura White Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.

Specifications

Intel Form Factor

• ATX12V

PFC Type

• Active PFC

ATX 3.0

• Yes

Dimensions

• 180 x 150 x 86 mm

Efficiency

• 80Plus Gold

Protection Features

• OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

• ROHS

AC Input Range

• 100-240Vac

DC Output Voltage

• +3.3V +5V +12V -12V +5Vsb

Maximum Load

• 22A 22A 83.3A 0.3A 3A

Combined Load

• 120W 120W 996.6W 3.6W 15W

Total Output

• 1000W

Cable Connectors

• MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side)PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4

Package Contents

• Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675 mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675 mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400+120mm)SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1

Weight

• 3.03 kg (single PSU)

AURA SYNC

• ARGB

Cybenetics Noise Level Certification

• A+

0dB Technology

• Supported. The fan shuts off entirely when the PSU is under certain load
