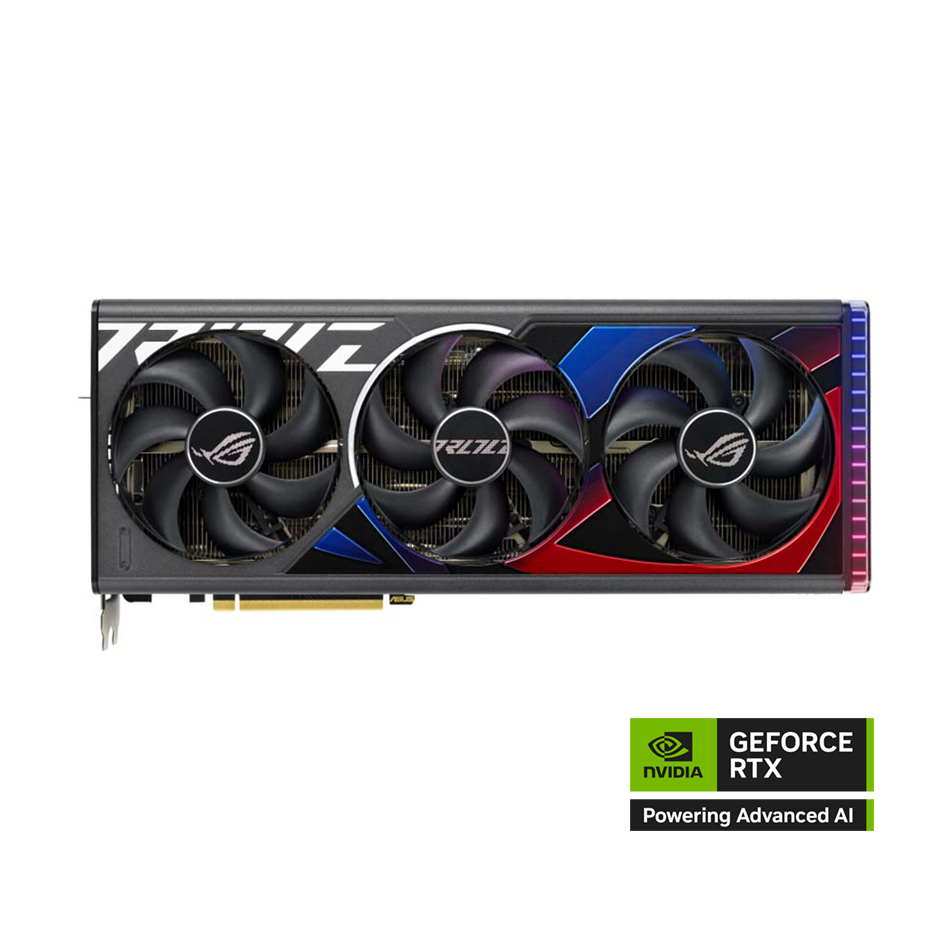

ASUS ROG STRIX NVIDIA GEFORCE RTX 4090 OC 24GB DLSS 3 Graphics Card - Black

ASUS ROG Strix Nvidia GeForce RTX 4090 OC 24GB DLSS 3 Graphics Card - Alan Wake 2 GeForce RTX Bundle

ROG Strix GeForce RTX® 4090 OC Edition 24GB GDDR6X buffed-up design with chart-topping thermal performance.

FLOW TO VICTORY

The ROG Strix GeForce RTX® 4090 brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The unleashed reign of the Nvidia Ada Lovelace architecture is here.

-NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency.

-4th Generation Tensor Cores: Up to 2X AI performance.

-3rd Generation RT Cores: Up to 2X ray tracing performance.

-Axial-tech fans scaled up for 23% more airflow.

-New patented vapor chamber with milled heatspreader for lower GPU temps.

-3.5-slot design: massive fin arrary optimized for airflow from the three Axial-tech fans.

-Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation.

-Digital power control with high-current power stages and 15k capacitors to fuel maximum performance.

-Auto-Extreme precision automated manufacturing for higher reliability.

-GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring.

Axial-tech Upgrades

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.5-slot Design

The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4090 GPU so that it can be efficiently whisked away by the three Axial-tech fans.

Patented Vapor Chamber

A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.

Premium Power Delivery

Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

Compact PCB

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

Metal Exoskeleton

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.

Auto-Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Aura Sync

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.

Specifications

• Graphic Engine : NVIDIA® GeForce RTX® 4090
• Bus Standard : PCI Express 4.0
• OpenGL : OpenGL®4.6
• Video Memory : 24GB GDDR6X
• Engine Clock : OC mode: 2640 MHz Default mode: 2610 MHz (Boost Clock)
• CUDA Core : 16384
• Memory Speed : 21 Gbps
• Memory Interface : 384-bit
• Resolution : Digital Max Resolution 7680 x 4320
• Interface : Yes x 2 (Native HDMI 2.1a), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3)
• Maximum Display Support : 4
• NVlink/ Crossfire Support : No
• Accessories : 1 x Collection Card​ 1 x Speedsetup Manual​ 1 x Adapter Cable​ 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card
• Software : ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions : 357.6 x 149.3 x 70.1mm
• Recommended PSU : 1000W
• Power Connectors : 1 x 16-pin
• Slot : 3.5 Slot
• AURA SYNC : ARGB
