ASUS ROG STRIX X670E-E GAMING WIFI DDR5 Motherboard - Black

ASUS ROG STRIX X670E-E GAMING WIFI AM5 ATX Motherboard - Black

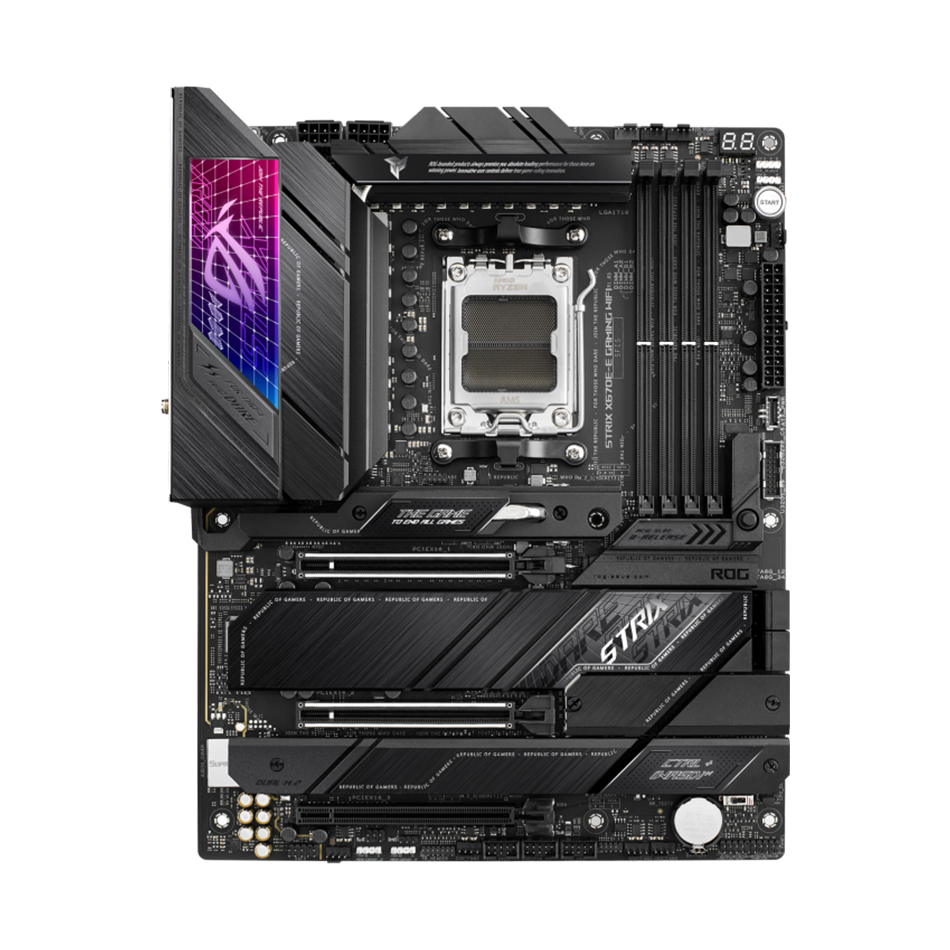

ROG STRIX X670E-E GAMING WiFi

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

ALL-ROUND PERFORMANCE

From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the Strix X670E-E fully flexes AM5 and infuses AMD Ryzen 7000 Series processors with additional agility to plough through every task.

PCIe 5.0

Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include SafeSlot to support heavy graphics cards and Q-release (top slot only) for easy upgrades.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

DYNAMIC OC SWITCHER

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher dynamically engages PBO or your preferred settings based on the CPU current or temperature, giving you the best of both worlds. Core Flex and PBO Enhancement can also be deployed to work in tandem with the Dynamic OC Switcher and further bolster performance on both sides of the aisle.

TEAMED POWER ARCHITECTURE

18 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen 7000 through any workload.

DDR5 STRENGTH

For those who want to fly past stock DDR5 speeds, the Strix X670E-E is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

LEADING CONNECTIVITY

The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

Intel 2.5G Ethernet

Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PLAY IN STYLE

A bold and balanced aesthetic ties together elements from the ROG Strix lineup and then subtly increases contrast with bright accents, visible silver components, and a splash of RGB. Pair the ROG Strix X670E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

SOFTWARE UTILITIES

ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

THIS CHANGES EVERYTHING.

FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE

Build your next rig with an AMD Ryzen 7000 Series processor and ROG Strix X670E-E Gaming WiFi to experience advanced performance. With up to 16 Zen cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen 7000 Series keeps you ahead of the game.

You'll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO technology.

Specifications

CPU

• AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*

Chipset

• AMD X670

Memory

• 4 x DIMM, Max. 128GB, DDR5
• 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
• 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
• * Non-ECC, Un-buffered DDR5 Memory supports
• On-Die ECC function

Graphics

• 1 x DisplayPort**
• 1 x HDMI® port***
• **Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• ***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• AMD Ryzen 7000 Series Desktop Processors
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
• AMD X670 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))
• AMD X670 Chipset
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
• * WiFi 6E 6GHz regulatory may vary between
• countries, and function will be ready in Windows 11 or later.
• **The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

USB

• Rear USB (Total 13 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x
• USB Type-C®)
• Front USB (Total 9 ports)
• 1 x USB 3.2 Gen 2x2 connector
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High
• Definition Audio CODEC ALC4080
• - Impedance sense for front and rear
• Headphone outputs
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback
• output and 113 dB SNR recording input
• - Supports up to 32-Bit/384 kHz playback
• Audio Features
• - Audio Shielding
• - Savitech SV3H712 AMP
• - Gold-plated audio jacks
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Audio cover
• * A chassis with an HD audio module in the
• front panel is required to support 7.1 Surround Sound audio output.
• *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
• 12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB
• Type-C®)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks*
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack  button
• 1 x Clear CMOS button
• *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports
• additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Alteration Mode Switch
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x Start button
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

Special Features

• Extreme Engine Digi+
• - 5K Black Metallic Capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Code
• - Q-DIMM
• - Q-LED (CPU [red], DRAM [yellow], VGA
• [white], Boot Device [yellow green])
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• - VRM heatsink design
• - Massive M.2 Heatsink
• ASUS EZ DIY
• - BIOS FlashBack button
• - BIOS FlashBack LED
• - Clear CMOS button
• - ProCool II
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 headers

Software Features

• ROG Exclusive Software
• - GameFirst VI
• - ROG CPU-Z
• - Sonic Studio III + Sonic Studio Virtual
• Mixer + Sonic Suite Companion
• - Sonic Radar III
• - DTS® Sound Unbound
• - Anti-virus software
• ASUS Exclusive Software
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - AURA Creator
• - AURA Sync
• - Fan Xpert 4 (with AI Cooling II)
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - TPU
• - DIGI+ VRM
• - Turbo app
• - PC Cleaner
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• Dynamic OC Switcher
• FlexKey

BIOS

• 256 MbFlash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x Massive M.2 Heatsink
• 1 x M.2 Q-Latch package for M.2 backplate
• 1 x M.2 Q-Latch package
• 1 x ROG Graphics card holder
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 backplate
• 1 x ROG key chain
• 1 x ROG Strix sticker
• 1 x ROG Strix thank you card
• Documentation
• 1 x User guide

Operating System

• Windows® 11 64-bit, Windows 10 64-bit

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
