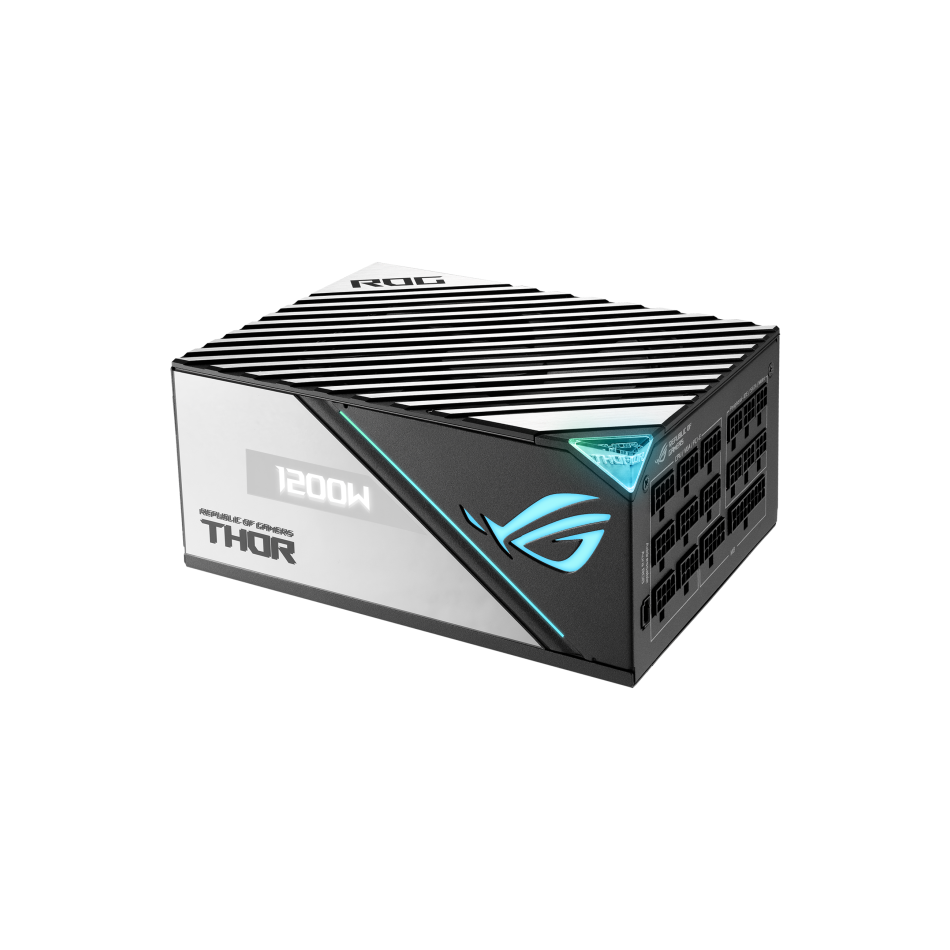

ASUS ROG THOR 1200W Platinum II GEN 5.0 Power Supply - Grey
Brand
Acer
- Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
- A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
- Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification.
- OLED display monitors power draw in real time.
- Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
- PCI Gen 5.0 Ready arriving bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards.
Categories:
ASUS ROG THOR 1200W - 80 Plus Platinum II GEN5.0 Power Supply Unit - Grey
ROG Thor 1200W Platinum II is the quietest PSU in its class.
The Quietest 1200W Power Supply
Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
COOLING
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
ENGINEERING
80 Plus Platinum Certification
The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.
EXPERIENCE
OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Aura Sync
Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1200W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
Specifications
- PFC Type : Active PFC
- Dimensions : 190 x 150 x 86 mm
- Efficiency : 80Plus Platinum
- Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials : ROHS
- AC Input Range : 100-240Vac
- Thermal Features : ROG Thermal Solution
- DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
- Maximum Load : 25A 25A 100A 0.3A 3A
- Combined Load : 125W 125W 1200W 3.6W 15W
- Total Output : 1200W
- Cable Connectors : MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 8
SATA x 12
PERIPHERAL x 6
- Package Contents : Power Cord x 1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (650mm)
PCIE Cable 16-pin x1 (675mm)
PCIE 1-to-1 Cable x4 (675mm)
PCIE 1-to-2 Cable x2 (675+75mm)
SATA 1-to-4 Cable x3 (400+120+120+120mm)
Peripheral 1-to-3 Cable x2 (450+120+120mm)
Addressable RGB Cable x1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Sleeved Cable Combs (6-pin) x 4
Sleeved Cable Combs (8-pin) x 10
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
- Weight : 2.37 KG
- AURA SYNC : ARGB
- Cybenetics Noise Level Certification : A++
- 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
