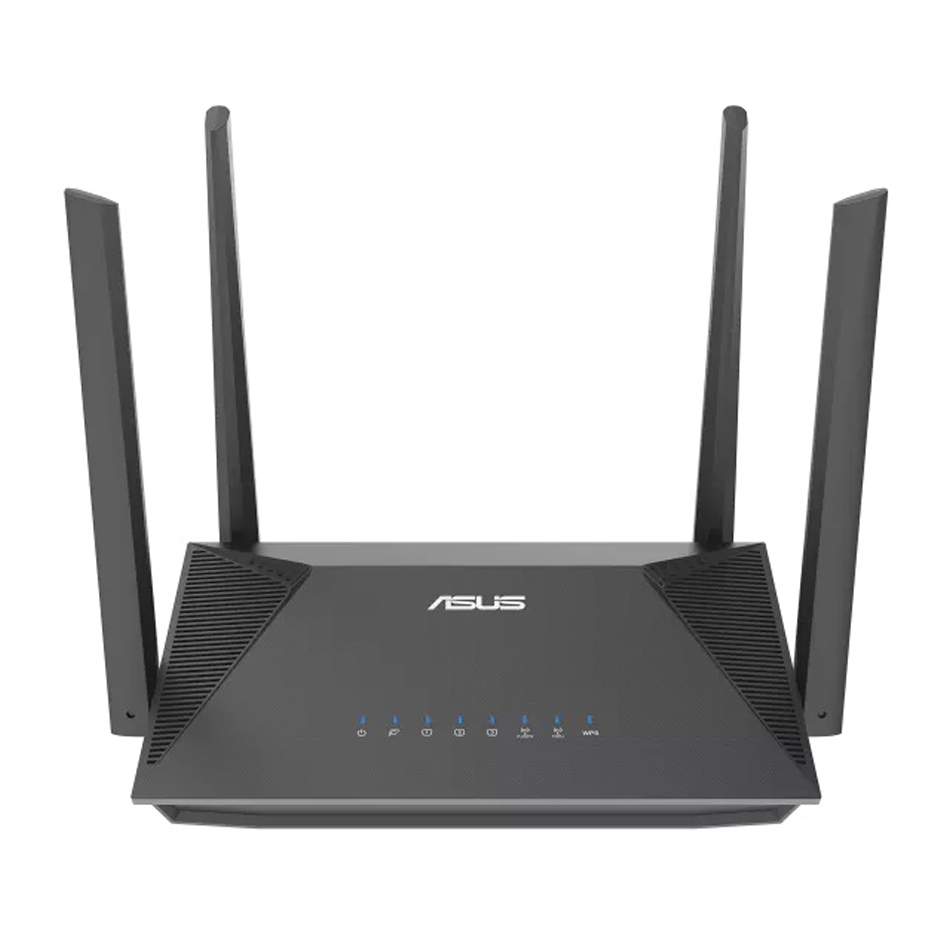

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router - Black

ASUS RT-AX52 - AX1800 Dual Band WiFi 6 Extendable Router

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible.

WiFi 6

Built for Smart Home

WiFi 6 (802.11ax) is engineered to cope with multiple devices, providing up to 4X greater network capacity and efficiency.

WiFi that Goes Further

WiFi 6 provides increased WiFi signal range and better coverage of up to 80% farther.

Faster WiFi. Smoother Usage.

With a total networking speed of 1,800Mbps— RT-AX52 is 1.5X faster than 802.11ac 2X2 dual-band routers*.

BSS Coloring Boosts Connection Efficiency

WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately.* This greatly reduces router waiting times and boosts network efficiency.

The Latest WPA3 Network Security

The next generation of WiFi security, bringing new capabilities to enhance WiFi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify WiFi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.

More Privacy, Anywhere

Free public WiFi is rarely secure. Thanks to Instant Guard VPN technology, you can surf on public WiFi network safely through RT-AX52 with one-click setup. In addition, it’s free!

Flexible and Scalable Wireless Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

The Way You Want, Easy Control

Download the latest ASUS Router App. With graphic icons and clear instructions, You can easily start RT-AX52 and setup dedicated functions as you want.

Specifications

Model : RT-AX52

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

• External antenna x 4

Transmit / Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 1.3GHz dual-core processor

Memory

• 128 MB Flash
• 256 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz

Operating Mode

• Access Point, AiMesh Node, Repeater, Router

I/O Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1
• WAN x 1
• LAN x 3
• 2.4G x 1
• 5G x 1
• WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1 A current

Package Content

• RT-AX52
• RJ45 Ethernet Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight (g)

• 298g

Product Dimensions

• 192 x 126.3 x 47.5 mm (WxDxH)

AiMesh

• AiMesh

            • Primary AiMesh Router

            • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Customized Internet Schedule

Guest Network

• "The Guest Network provides Internet connection for guests but restricts access to your local network."

Security

• Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• SSH
• Firewall

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP

Traffic Control

            • Bandwidth Limiter

            Traditional QoS

            Traffic Monitor

            • Real-time Traffic Monitor

            • Wired Traffic Monitor

            • Wireless Traffic Monitor

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• Port triggering
• DMZ
• DDNS

LAN

• DHCP Server
• IGMP Snooping
• IPTV
• Manually Assign IP Address
• Wake on LAN (WOL)

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

Administration

• Configuration Backup and Restore
• Diagnosis tools
• Feedback System
• System Log
