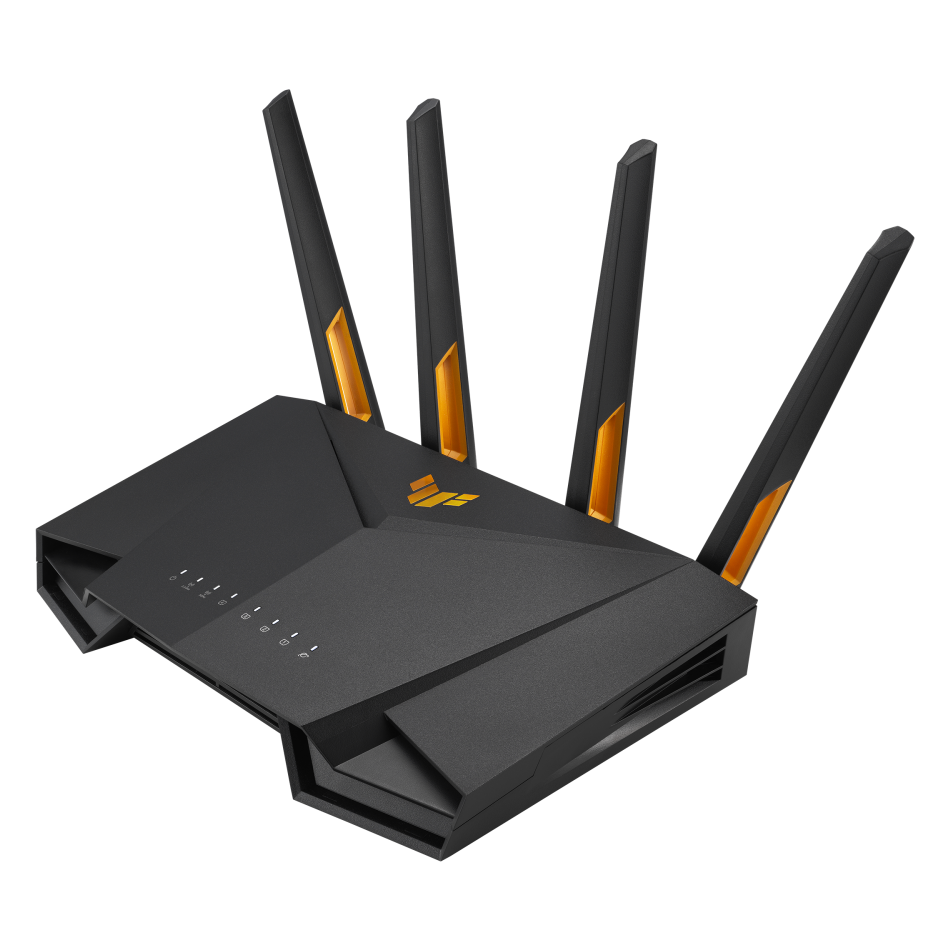

ASUS TUF Gaming AX3000 V2 Dual Band WiFi 6 Gaming Router with Mobile Game Mode - Black

ASUS TUF Gaming AX3000 V2 Dual Band WiFi 6 Gaming Router with Mobile Game Mode

TUF Gaming AX3000 V2 Dual Band WiFi 6 Gaming Router with Mobile Game Mode, 3 steps port forwarding, 2.5Gbps port, AiMesh for mesh WiFi, AiProtection Pro network security

TUF Gaming AX3000 V2

TUF Gaming AX3000 V2 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.

4X Capacity. 2.5X Faster.*

WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.

*The data compares speed of 2X2 WiFi 6 solution on 5GHz band 160MHz channel to speed of 2X2 WiFi 5 solution on 5GHz band 80MHz channel

True Multi-Gigabit wired speeds

TUF Gaming AX3000 V2 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.*

*Link Aggregation (802.3ad) refers to the combining throughput of multiple devices.

WiFi that Goes Further

We've designed TUF Gaming AX3000 V2 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. With a 2x2 MIMO configuration, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX3000 V2 reaches every corner.

Flexible and Scalable Wireless Mesh Networking

If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

Stable and Durable

TUF Gaming AX3000 V2 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

One Router.

All Game Types.

TUF Gaming AX3000 V2 provides gamers with different features for different game types.

Switch Modes for an Easy Life

Optimize whatever you're doing with different modes, and boost the task at hand!

Simultaneous Gaming and VPN

VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Commercial-Grade

Security for Your Home

Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX3000 V2 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX3000 V2, and you can keep an eye on everything that's happening on your network via the handy mobile app.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via TUF Gaming AX3000 V2 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX3000 V2, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Specifications

Model Name

• TUF-AX3000 V2

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

• External antenna x 4

Transmit/Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 1.7GHz quad-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4GHz / 5GHz

Ports

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,
• RJ45 for Gigabits BaseT for LAN x 4,
• USB 3.2 Gen 1 x 1,

Button

• WPS Button, Reset Button, Power Button

LED Indicator

• Power x 1
• 2.4G x 1
• 5G x 1
• LAN x 4
• WAN x 1

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 1.5 A current

Package content

• TUF Gaming AX3000 V2 Dual Band WiFi 6 router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card

Product Weight (g)

• 547 g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Game

• Game Boost / Acceleration

Alexa

• Support Alexa skill

AiProtection

• AiProtection Pro
• AiProtection
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule : 32
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

Wireless

• IPv6
• Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection time limit
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
• Safe browsing
• DNS-over-TLS

LAN

• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• 3G/4G LTE dongle
• HDD hibernation
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration

• Operating mode : Wireless router mode
• Access point mode
• Media bridge mode
• Repeater mode
• AiMesh node mode
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• SSH
• Wake on LAN (WOL)
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
