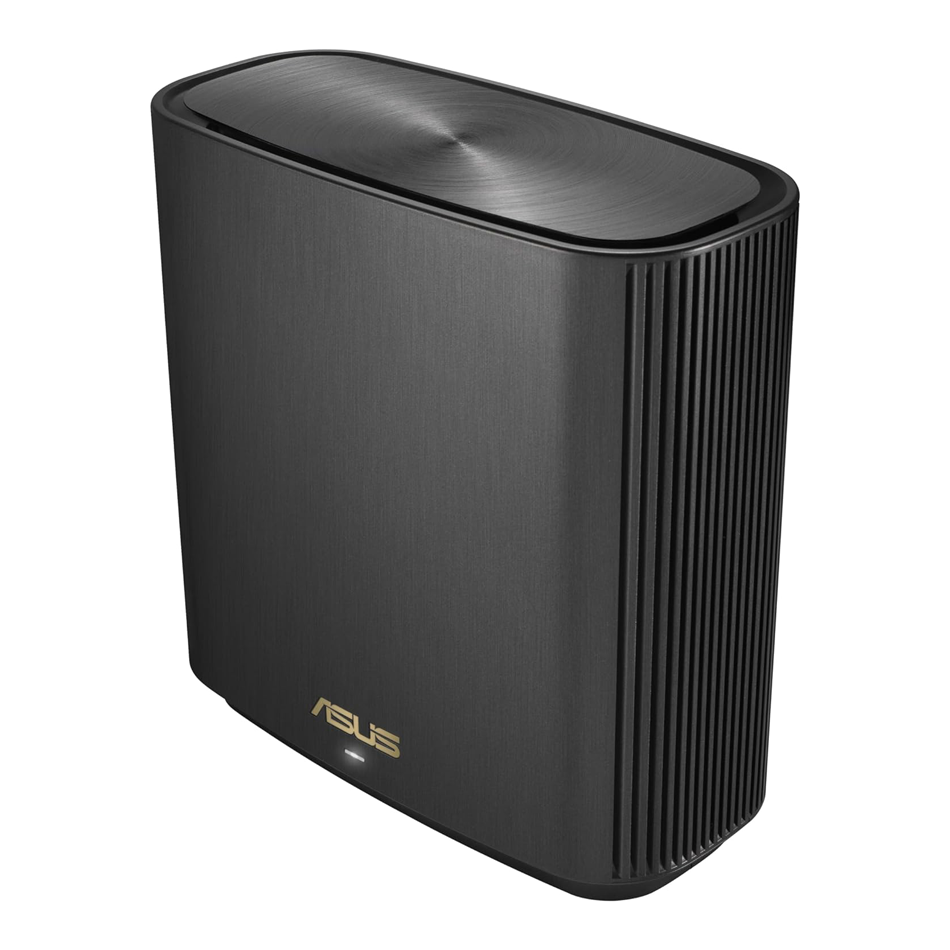

ASUS ZenWiFi AX XT8 - AX6600 Whole-Home Tri-band Mesh WiFi 6 System 1 Pack - Black

ASUS ZenWiFi AX XT8 - AX6600 Whole-Home Tri-band Mesh WiFi 6 System - 1 Pack Black

ASUS ZenWifi AX (XT8)

AX6600 Whole-Home Tri-band Mesh WiFi 6 System  Coverage up to 5,500 Sq. ft. or 6+ rooms, 6.6Gbps WiFi, 3 SSIDs, life-time free network security and parental controls, 2.5G port

Whole-home Coverage

High speed tri-band. Stable WiFi.

ASUS ZenWiFi AX (XT8) provides whole-home mesh WiFi coverage

The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections  inside or outside your home!

Flexible Network Naming

Uniquely, ZenWiFi AX lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Easier-than-ever Setup

What makes ZenWiFi AX setup so easy?

    One-time setup, with auto synchronization for all the hubs in each package

    Hassle-free: each unit can work as the main router or an extender node

Make the Internet a

Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

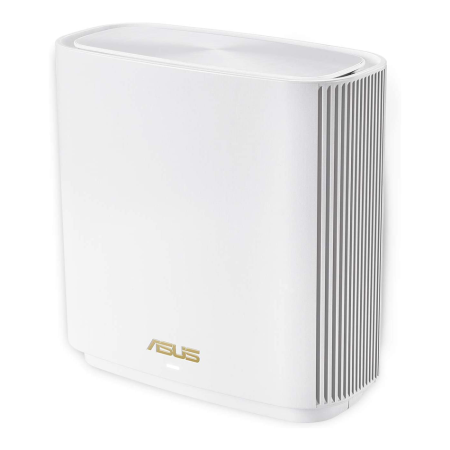

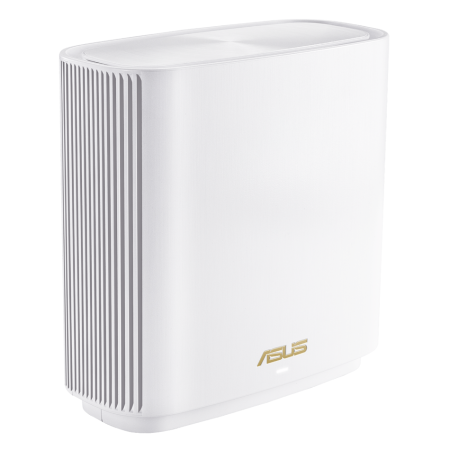

ZenWiFi AX works perfectly with smart-home services  including Alexa skills and IFTTT  and is available in black or white to suit your dcor.

AiMesh Technology

Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Performance

Through Engineering

ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.

• Special designed vents for increased airflow
• Double heatsink for maximized heat dissipation
• 45° antennas ensure strong WiFi in multi-story homes
• Vertical housing with space between antennas and circuit board for minimal WiFi signal interference
• Quad-core CPU (with WiFi) plus additional WiFi chipset
• 2.5G WAN/LAN port

Specifications

Model Name

• XT8 (B-1-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX6600 ultimate AX performance：574+1201+4804Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
• WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

• Internal antenna x 6

Transmit/Receive

• 2.4GHz 2x2
• 5GHz-1 2x2
• 5GHz-2 4x4

Memory

• 256 MB Flash
• 512 MB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

        * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

• 2.4G Hz, 5 GHz-1, 5 GHz-2

Ports

• RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
• USB 3.1 Gen 1 x 1

Button

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 19 V with max. 1.75 A current
• DC Output : 12 V with max. 3 A current

Package content

• ZenWiFi AX
• RJ-45 Cable
• Power Adapter
• Quick Start Guide
• Warranty Card

Product Weight (g)

• 716 g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Alexa

• Support Alexa skill

AiProtection

• AiProtection Pro
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control

Traffic Control

• Adaptive QoS
• Traffic Monitor
• Traffic Analyzer

Wireless

• IPv6
• Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : Max 9 rules
• WPS
• WiFi MAC address filter
• Maximum MAC filters : Max 64 rules
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

WAN

• Dual WAN
• 3G/4G LTE dongle
• DMZ
• DDNS
• Let's Encrypt
• Safe browsing
• DNS-over-TLS

LAN

• IGMP snooping
• IPTV

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Fusion
• VPN Server WireGuard

USB application

• File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server

Administration

• Operating mode : Wireless router mode
• Range extender mode
• Access point mode
• Firewall
• Maximum Firewall keyword filter : Max 64 rules
• Maximum Firewall network service filter : Max 32 rules
• Maximum Firewall URL filter : Max 64 rules
• Wake on LAN (WOL)
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
