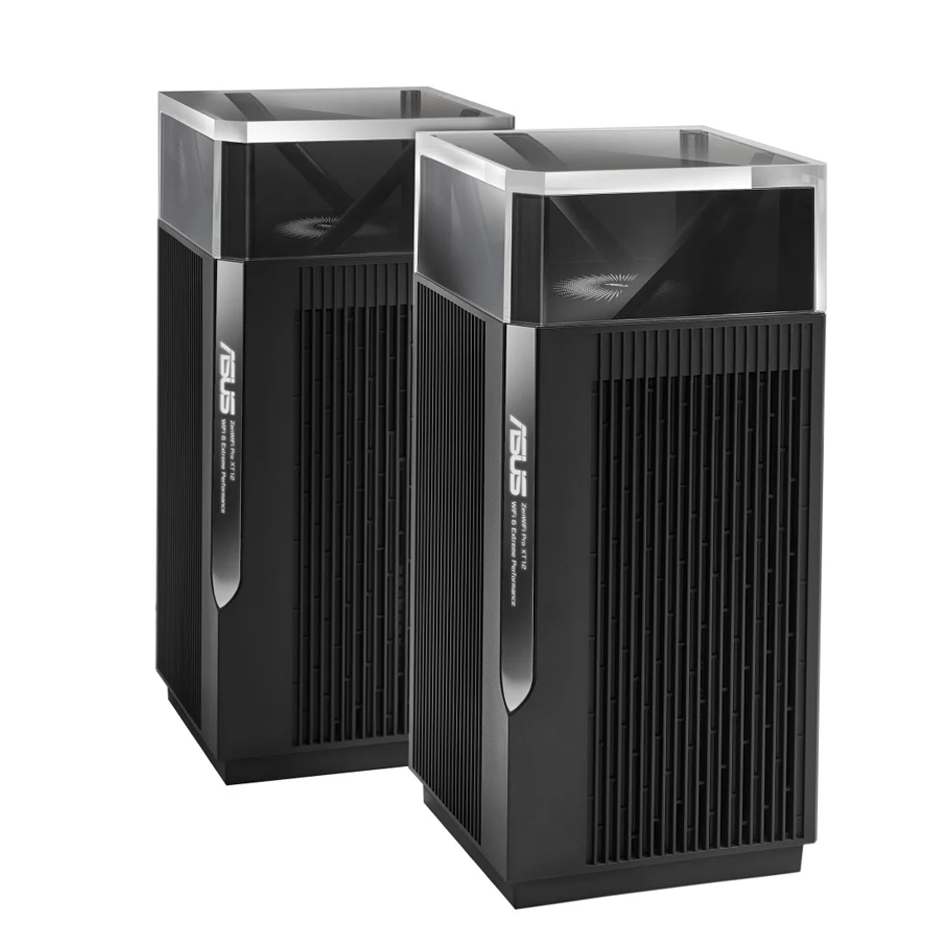

ASUS ZenWIFI PRO XT12 - AX11000 Tri-band Whole-Home WiFi 6 Mesh System 2 Pack - Black

ASUS ZENWIFI PRO XT12 - AX11000 Tri-band Whole-Home WiFi 6 Mesh System - 2 Pack

ASUS ZenWiFi Pro XT12

Wider Range with Superior Speed

ZenWiFi Pro is the new paradigm for whole-home mesh WiFi, combining performance and beauty in a perfectly balanced package. It takes the productivity and entertainment capabilities of your whole-home network to the next level, with scalable capacity for the new generation of home networking ecosystems.

Massive Capacity, Lightning-Fast Speed

WiFi 6 gives ZenWiFi Pro XT12 up to 4X the capacity and 2X the speed of WiFi 5, thanks to advanced technologies like BSS Color, uplink and downlink OFDMA, and 160 MHz MU-MIMO. Network efficiency is improved too, so your devices get all the bandwidth they need. If you have lots of different networked devices, such as PCs, laptops, smartphones, NAS and smart home devices, ZenWiFi Pro XT12 is your ideal choice.

More Streams, More Bandwidth

ZenWiFi Pro XT12 is a 12-stream device, with combined total data rates up to 11000 Mbps. This boosts its capacity for transmitting and receiving data to large numbers of devices simultaneously, reducing dead zones and giving ZenWiFi Pro XT12 the performance edge for the busiest home networks.

RangeBoost Plus

ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, and it improves coverage for all your WiFi devices including legacy devices. Using a next-gen flagship Broadcom WiFi 6 chipset and a 2.0GHz 64-bit quad-core CPU, RangeBoost Plus leverages multiple exclusive ASUS technologies to dramatically improve WiFi signal range and coverage by up to 38%*

Easy Scalability for Flexible Networking

With ASUS AiMesh, it's easy to add extra nodes for improved coverage or new features — simply add any AiMesh-compatible router!

Dual 2.5G LAN and WAN Ports

ZenWiFi Pro XT12 has both a 2.5G LAN port and a 2.5G WAN port, so you can enjoy full 2.5 Gbps speeds all the way from a compatible ISP to your compatible wired devices.

Flexible Backhaul Choice

ZenWiFi Pro XT12 lets you allocate either the second 5 GHz band or wired Ethernet for the backhaul connection between nodes. Alternatively, you can choose automatic mode and let ZenWiFi Pro XT12 choose the best connection type based on your environment. The choice is always yours!

Engineered for Performance

ZenWiFi Pro XT12 is engineered to deliver maximum WiFi performance — with throughput improved by up to 18%*— from the latest Broadcom WiFi 6 chipset and CPU . The eight external antennas are carefully located and angled within the special transparent compartment on the top of the router, minimizing interference while maximizing signal coverage.

Commercial-Grade Security for Your Home

Home network security is crucial when you have multiple connected devices, especially if your network hosts devices without virus protection, such as IoT devices. ZenWiFi Pro XT12 includes lifetime free AiProtection Pro, including advanced Parental Controls, and also uses the latest WPA3 security protocol.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via ZenWiFi Pro XT12 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi Pro XT12, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Specifications

• Model : ASUS ZenWiFi Pro XT12
• Model Name : XT12(1-PK)

                                       XT12(2-PK)

• Network Standard

                                        IEEE 802.11a

                                        IEEE 802.11b

                                        IEEE 802.11g

                                        WiFi 4 (802.11n)

                                        WiFi 5 (802.11ac)

                                        WiFi 6 (802.11ax)

                                        IPv4

                                        IPv6

• Product Segment

                                        AX11000 ultimate AX performance : 1148+4804+4804Mbps

• WiFi Data Rate

                                        802.11a : up to 54 Mbps

                                        802.11b : up to 11 Mbps

                                        802.11g : up to 54 Mbps

                                        WiFi 4 (802.11n) : up to 600 Mbps

                                        WiFi 5 (802.11ac) : up to 1000 Mbps

                                        WiFi 5 (802.11ac) : up to 4333 Mbps

                                        WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps

                                        WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps

                                        WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

• Antenna

                                internal antenna x 10

• Transmit / Receive

                                2.4GHz 4x4

                                5GHz-1 4x4

                                5GHz-2 4x4

• Processor

                                2.0 GHz quad-core 64bits processor

• Memory

                                256 MB Flash

                                1GB RAM

• Boosts Speed

                                OFDMA (Orthogonal Frequency Division Multiple Access)

                                Beamforming: standard-based and universal

                                1024-QAM high data rate

                                20/40/80/160 MHz bandwidth

            * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

• Operating Frequency

                                2.4G Hz, 5 GHz-1, 5 GHz-2

• Operating Mode

                                Wireless router mode

                                Repeater mode

                                Access point mode

                                Media bridge mode

• I/O Ports

                            RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2

• Buttons

                            WPS Button, Reset Button, Power Switch

• LED Indicator

                            Power x 1

                            Status x 1

• Power Supply

                            AC Input : 110V~240V(50~60Hz)

                            DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

• Package Content

                            ZenWiFi Pro XT12

                            RJ-45 Cable

                            Power Adapter

                            Quick Start Guide

                            Warranty Card

• Product Weight (g)

                            1500 g

• Product Dimensions

                            115 x 115 x 241mm

                            115 x 115 x 241 mm

• AiMesh

                            AiMesh

                                • Primary AiMesh Router

                                • AiMesh Node

• Parental Control

                            "Allow you to block access to unwanted websites and apps."

• Router APP

                            APP: ASUS Router APP

• Guest Network

                            Support Guest Network

                            • Maximum Guest Network Rule : Max 9 rules

• Security

                            WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support

• WPS

                            Let's Encrypt

• Firewall

                            • Maximum Firewall Keyword Filter : Max 64 rules

                            • Maximum Firewall Network Service Filter : Max 32 rules

                            • Maximum Firewall URL Filter : Max 64 rules

• AiProtection

                            AiProtection Pro

                            • Malicious Site Blocking

                            • Two-Way IPS

                            • Infected Device Prevention and Blocking

• VPN

                            VPN Client L2TP

                            VPN Client Open VPN

                            VPN Client PPTP

                            VPN Server IPSec

                            VPN Server Open VPN

                            VPN Server PPTP

• Traffic Control

                            Adaptive QoS

                            Traffic Monitor

                            Traffic Analyzer

• WAN

                            Dual WAN

                            WAN Aggregation

                            DMZ

                            DDNS

• LAN

                            IGMP Snooping

                            IPTV

                            LAN Link Aggregation

                            Wake on LAN (WOL)

• Wireless

                            UTF-8 SSID

                            WiFi MAC Address Filter

                            • Maximum MAC Filters : Max 64 rules

                             Wireless Scheduler

                            Airtime Fairness

                            RADIUS Client

                            Universal Beamforming

                            Explicit Beamforming

• Administration

                            Diagnosis Tools

                            Feedback System

                            System Log
