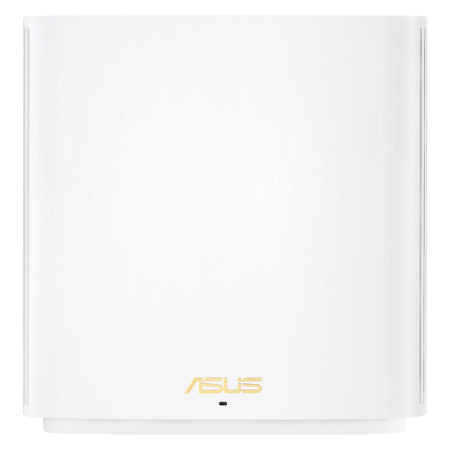

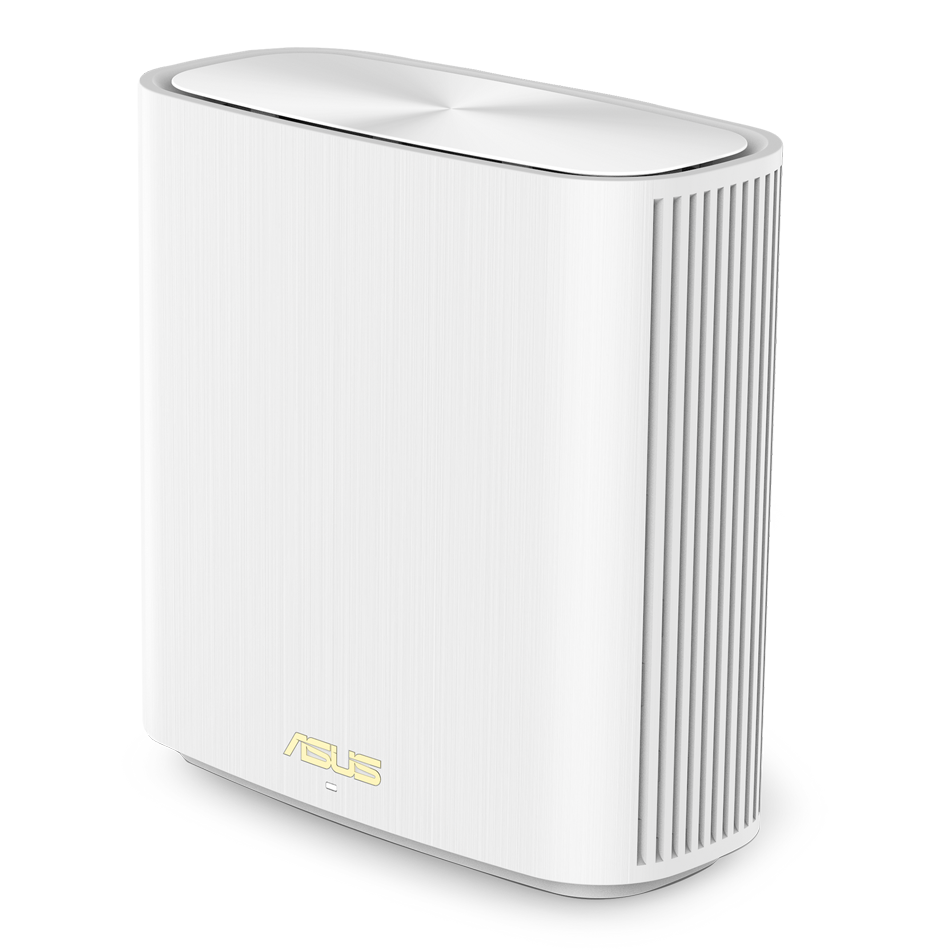

ASUS ZenWiFi XD6 - AX5400 Whole-Home Dual-Band Mesh WiFi 6 System 1 Pack - White

ASUS ZenWiFi XD6 - AX5400 Whole-Home Dual-Band Mesh WiFi 6 System - 1 Pack White

Asus AX5400 (ZenWiFi XD6) AX5400 Wireless Dual-Band Cable Router Single Unit 3x GB LAN GB WAN AiMesh Tech Tri-Core Processor White

Whole-home Coverage

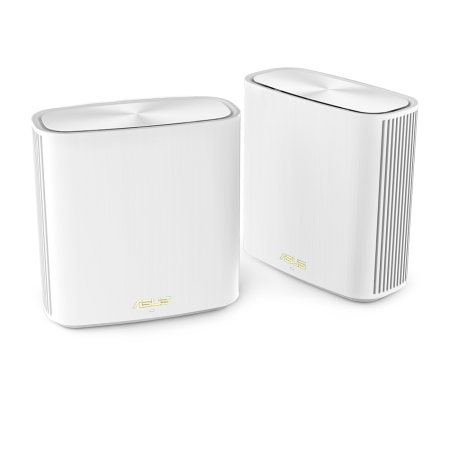

The ZenWiFi XD6 series system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

Smart & Flexible Backhaul Configuration

ASUS ZenWiFi XD6 series give you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.

WiFi 6

True 8K Streaming

• ZenWiFi XD6 series put your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it's up to 2.2X faster* than WiFi 5 routers**.
• *The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
• * Compatible WiFi 6 device required.
• ** The data compares speed of 4x4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to speed of 4x4 11ac on 5GHz 80MHz with 256QAM modulation.
• *** The number of speed is calculated with data rate of 2.4 GHz band and of 5 GHz band, which are respectively 574 and 4804 Mbps. And the DFS channels may not be supported in some countries due to local regulations.

Easier-than-ever Setup

What makes ZenWiFi XD6 series setup so easy?

• One-time setup, with auto synchronization for all the hubs in each package
• Hassle-free: each unit can work as the main router or an extender node

Make the Internet a

Safer Place for Everyone

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

More Privacy, Anywhere

Instant Guard gives you one-click secure internet access via ZenWiFi XD6 series from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6 , you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Smart Looks for Smart Homes

ZenWiFi XD6 series work perfectly with smart-home services- including Alexa skills.

Space-saving wall-mount

The iconic design comes with a wall-mount kit. Hang it on the wall or place it anywhere, the choice is yours!

*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.

AiMesh Technology

Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications

Model Name

• XD6 (W-1-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX5400 ultimate AX performance : 574+4804 Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

• internal antenna x 6

Transmit/Receive

• 2.4GHz 2x2
• 5GHz 4x4

Processor

• 1.5 GHz tri-core processor

Memory

• XD6
• 256 MB Flash
• 512 MB RAM
• XD6S
• 128 MB Flash
• 512 MB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4 G Hz / 5 GHz

Ports

• XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
• XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1

Button

• WPS Button, Reset Button

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 2 A current

Package content

• ZenWiFi XD6S
• RJ-45 cable
• Power adapter
• Wall mount kit
• Warranty card
• Quick start guide
• *Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.

Product Weight (g)

• XD6: 435 g
• XD6S: 425 g

Remark

• Content may vary in different regions and packages.

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Alexa

• Support Alexa skill

AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule : 32
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Website history

Wireless

• IPv6
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 9
• Guest Network Connection time limit
• Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• Universal beamforming
• Explicit beamforming

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• DMZ
• DDNS
• Let's Encrypt

LAN

• DHCP Server
• IGMP snooping
• IPTV
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP

Administration

• Operating mode : Wireless router mode
• Range extender mode
• Access point mode
• Media bridge mode
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
