ASUS ZenWiFi XT9 Superior Whole-Home WiFi 2 Pack - Black

ASUS ZenWiFi XT9 Superior Whole-Home WiFi 2 Pack - Black

Superior

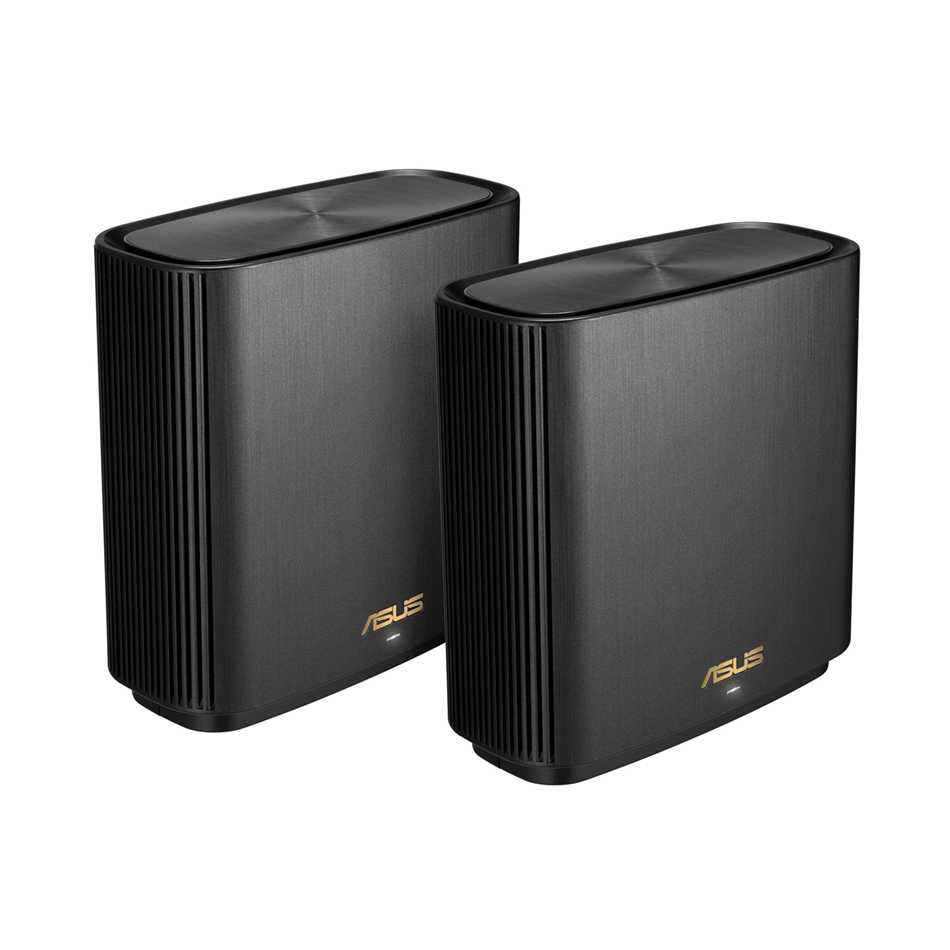

ASUS ZENWIFI XT9 Superior Whole-Home WiFi System - Black - 2 Pack

SUPERFAST WHOLE-HOME WIFI

The ASUS ZenWiFi XT9 mesh system consists of a pair of ASUS AX7800 tri-band WiFi 6 mesh routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections for your streaming videos, gaming and all other smart IoT gadgets.

Wider Coverage

The latest ASUS RangeBoost Plus technology, along with the flagship Broadcom WiFi 6 chipset, significantly improves WiFi signal range and overall coverage by up to 38%*, offering expansive coverage in spaces up to 5700 square feet.

Easy Setup & Management

The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone.

3-Step Easy Setup

Simply follow the on-screen directions, and you will be up and running in no time!

Flexible Backhaul Choice

ASUS ZenWiFi XT9 gives you flexible backhaul options: wireless or wired Ethernet speeds. You can use either the second 5GHz band or an Ethernet cable to connect to a local network node. Or just let the ZenWiFi XT9 choose the best connection type for you. The choice is always yours!

Flexible Backhaul Choice

ASUS ZenWiFi XT9 gives you flexible backhaul options: wireless or wired Ethernet speeds. You can use either the second 5GHz band or an Ethernet cable to connect to a local network node. Or just let the ZenWiFi XT9 choose the best connection type for you. The choice is always yours!

Ultra-fast Wired Connection, Flexible Deployment

With a 2.5Gbps WAN port, the ASUS ZenWiFi XT9 empowers you to take full advantage of 2.5Gbps speeds offered by internet service providers for your compatible wired devices. You can also enjoy up to 2Gbps wired speeds by using the LAN aggregation feature.

Comprehensive Home Network Security

Home network security is more important than ever, as many households now have multiple connected devices while lacking appropriate security measures to protect them and their users. The ASUS ZenWiFi helps you stay safe online with our AiProtection Pro network security and Instant Guard secured VPN features.

AiProtection Pro Security for Your Home Network

Alongside the latest WPA3 security protocol, the ASUS ZenWiFi XT9 also features AiProtection Pro powered by Trend Micro and advanced parental controls, providing everything you need in one device.

Make Free WiFi Secure with

Instant Guard

ASUS Instant Guard gives you one-click secure internet access via the ZenWiFi XT9 mesh router from anywhere in the world, thanks to its encrypted VPN tunneling technology. You can essentially take your home network with you wherever you go — while saying goodbye to third-party VPN subscription fees!

Specifications

Model

• ASUS ZenWiFi XT9

Model Name

• XT9 (W-2-PK)
• XT9 (W-1-PK)
• XT9 (B-2-PK)
• XT9 (B-1-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX7800 ultimate AX performance : 574+2402+4804Mbps

WiFi Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps
• WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps

Antenna

• Internal antenna x 6

Transmit / Receive

• 2.4GHz 2x2
• 5GHz-1 2x2
• 5GHz-2 4x4

Processor

• 1.7 GHz quad-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts Speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth
• * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

• 2.4G Hz, 5 GHz-1, 5 GHz-2

Operating Mode

• Wireless router mode
• Access point mode

I/O Ports

• RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
• USB 3.2 Gen 1 x 1

Buttons

• WPS Button, Reset Button, Power Switch

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 3 A current

Package Content

• ZenWiFi XT9
• RJ-45 cable
• Power adapter
• Warranty card
• Quick start guide

Product Weight (g)

• 740g

Product Dimensions

• 160 x 75 x 161.5 mm

Remark

• Content and color may vary in different regions and packages.

AiMesh

• AiMesh
• • Primary AiMesh Router
• • AiMesh Node

Parental Control

• "Allow you to block access to unwanted websites and apps."
• Parental Control - Safe Browsing
• Customized Internet Schedule

Router APP

• APP: ASUS Router APP

Guest Network

• Support Guest Network
• • Maximum Guest Network Rule : Max 9 rules
• Guest Network Connection Time Limit

Security

• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• Let's Encrypt
• DNS-over-TLS
• Security Scan
• Firewall
• • Maximum Firewall Keyword Filter : Max 64 rules
• • Maximum Firewall Network Service Filter : Max 32 rules
• • Maximum Firewall URL Filter : Max 64 rules

AiProtection

• AiProtection Pro
• • Router Security Assessment
• • Malicious Site Blocking
• • Two-Way IPS
• • Infected Device Prevention and Blocking

VPN

• Instant Guard
• VPN Client L2TP
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

Traffic Control

• Adaptive QoS
• • Bandwidth Monitor
• • Bandwidth Limiter
• Traffic Monitor
• • Real-time Traffic Monitor
• • Wired Traffic Monitor
• • Wireless Traffic Monitor
• Traffic Analyzer
• • Website History

WAN

• Dual WAN
• DMZ
• DDNS

LAN

• IGMP Snooping
• IPTV
• LAN Link Aggregation
• Wake on LAN (WOL)

Wireless

• UTF-8 SSID
• WiFi MAC Address Filter
• • Maximum MAC Filters : Max 64 rules
• Wireless Scheduler
• Airtime Fairness
• RADIUS Client
• Universal Beamforming
• Explicit Beamforming

USB application

• File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
• Safely Remove Disk
• AiCloud
• Download Master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder Privileges

Administration

• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update
