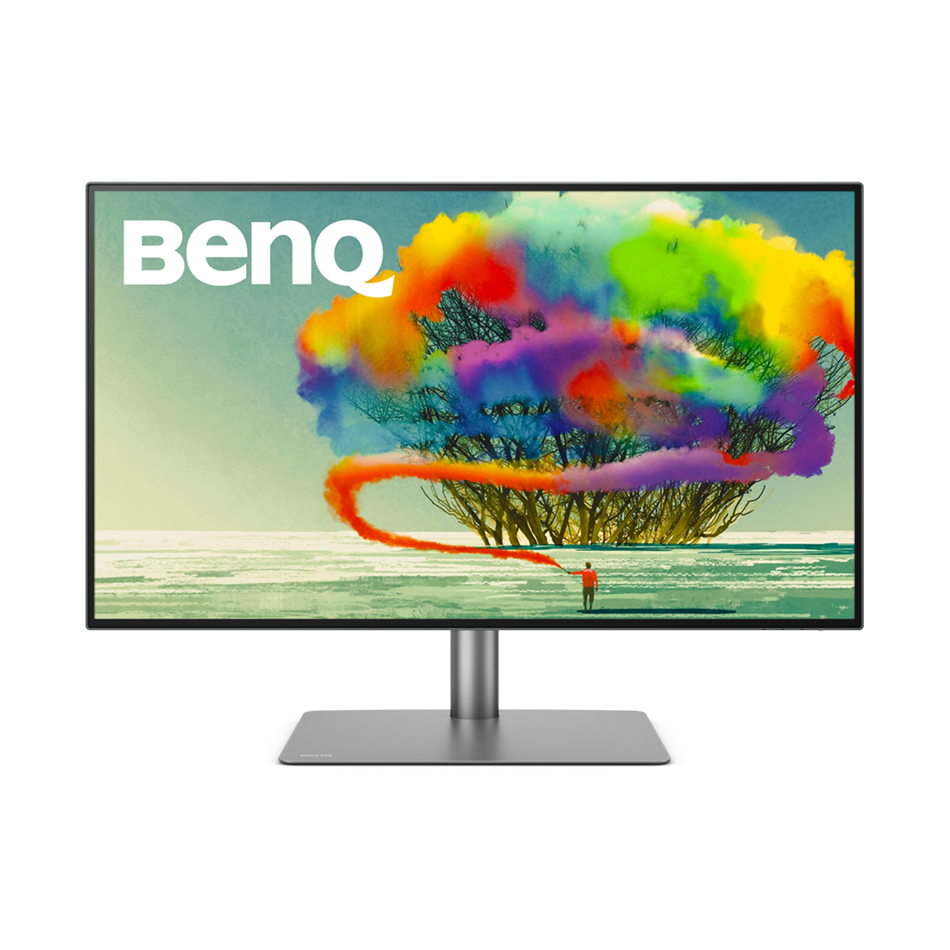

BENQ PD3220U 31.5 Inch 4K Thunderbolt 16:9 HDR IPS Monitor - Black

BENQ PD3220U - 31.5 Inch 4K Thunderbolt 16:9 HDR IPS Monitor - Black

Make Inspirations Come Alive.

Accurate Color speaks your mind

HDR Technology

HDR10 gets better results more efficiently, letting you preview the HDR effect on video while editing.

Take needless complexity out of the creative process. PD3220U eliminates tedious, repetitive adjustments, freeing your time and energy for what matters most.

Simplified Connectivity

Thunderbolt 3 does it all. One cable lets you transfer audio, video, and data along with 85W power delivery. Its single cable convenience eliminates distracting clutter. For added connectivity, there's also a convenient USB hub.

Simplified Color Synchronization

PD3220U natively supports the P3 color space, essential for color-critical design work. Also, M-Book mode auto-adjusts and syncs PD3220U with Macs for assured consistency and easy usage across two screens. Adjusting settings is simple with the Hotkey Puck G2.

Simplified Management

Available for Mac* or Windows, Display Pilot software saves time and boosts efficiency. This proprietary software lets you preset multiple monitor settings with a mouse. And it offers support tools to make design work more convenient and flexible.

*Apple M1 Platform not currently supported

Defined by Details

Select the color mode that suits your workflow.

pd2725u dualview mode shaowcases designs in two modes side by side for improved workflow and enhanced productivity

DualView

Showcase designs in two modes side-by-side for improved workflow and enhanced productivity.

pd2725u animation mode enhances clarity of dark areas without exposing bright regions

Animation Mode

Enhance the clarity of dark areas without overexposing bright regions.

pd2725u cad and cam mode showcase superior contrast of lines and shapes.

CAD/CAM Mode

Enjoy superior contrast of lines and shapes in technical illustrations.

Free Your Creativity

Add flow to your workflow. These professional perks boost productivity so your creativity can soar.

Create with Fresh Eyes

BenQ's industry-leading eye care technologies reduce eye fatigue while ensuring greater user comfort during long periods of use.

Create with Fresh Eyes

BenQ's industry-leading eye care technologies reduce eye fatigue while ensuring greater user comfort during long periods of use.

Specifications

Display

• Screen Size : 31.5 inch
• Panel Type : IPS
• Backlight Technology : LED backlight
• Resolution (max.) : 3840x2160
• Brightness (typ.) : 250 nits
• Brightness (peak)(HDR) : 300 nits
• HDR : HDR10
• Native Contrast : 1000:1
• Viewing Angle (L/R) (CR>=10) : 178°/178°
• Response Times (GtG) : 5 ms
• Refresh Rate (Hz) : 60 Hz

• Color Gamut : 100% Rec.709, 100% sRGB, 95% P3
• Color Mode : Animation, CAD/CAM, Darkroom, DCI-P3, DICOM, Display P3, HDR, Low Blue Light, M-Book, Rec.709, sRGB, User
• Aspect Ratio : 16:9
• Display Colors : 1.07 billion colors
• PPI : 140
• Display Screen Coating : Anti-Glare
• Color Temperature : 5000K, 6500K, 9300K, User Define
• Gamma : 1.8 - 2.6
• HDCP : 2.2
• OSD Language : Arabic, Chinese (simplified), Chinese (traditional), Czech, Deutsch, English, French, Hungarian, Italian, Japanese, Korean, Netherlands, Polish, Portuguese, Romanian, Russian, Spanish, Swedish
• AMA : Yes

Audio

• Built-in Speaker : 2Wx2
• Headphone Jack : Yes

Power

• Voltage Rating : 100 - 240V
• Power Supply  : Built-in
• Power Consumption (normal) : 37 W
• Power Consumption (max) : 220 W
• Power Consumption (sleep mode) : <0.5 W
• Power Delivery(USB C / Thunderbolt 3) : 85 W

Dimension and Weight

• Tilt (down/up) : -5 - 20
• Swivel (left/right) : 30/30
• Pivot : 90
• Height Adjustment Stand : 150 mm
• Dimensions (HxWxD) (mm) : 477.6 - 627.6 x714.8x273.3
• Dimensions (HxWxD) (inch) : 18.8 - 24.7x28.1x10.8
• Dimensions (HxWxD) (w/o Base) (mm) : 412.2x714.8x86.6
• Dimensions (HxWxD) (w/o Base) (inch) : 16.2 x 28.1 x 3.4
• Net Weight (kg) : 10.7
• Net Weight (lb) : 23.6
• Net Weight (w/o Base) (kg) : 7.9
• Net Weight (w/o Base) (lb) : 17.4
• VESA Wall Mount : 100x100 mm

Accessories

• Other Accessories : Calibration Report, Hotkey Puck G2, QSG, Warranty Card

Connectivity

• HDMI (v2.0) : 2
• DisplayPort (v1.4) : 1
• Thunderbolt 3 ( PowerDelivery 85W, DisplayPort Alt Mode, Data ) : 1
• Thunderbolt 3 out ( PowerDelivery 15W ) : 1
• Daisy Chain Technology : Thunderbolt 3
• USB Type B ( Upstream ) : 1
• USB C ( Downstream ) : 1
• USB 3.1 ( Downstream ) : 3
• All-in-One Connection : Thunderbolt 3

Eye Care

• Flicker-free Technology : Yes
• Low Blue Light : Yes

Certification

• Solidworks : Yes
• calman verified : Yes
• Pantone Validated : Yes

Professional

• Video Format Support : Yes
• Factory Calibration Report : Yes
• Delta E(avg) : 3
• Animation mode : Yes
• CAD/CAM mode : Yes
• Darkroom mode : Yes
• KVM Switch : Yes
• DualView : Yes
• Auto Pivot : Yes
• Uniformity Technology : Yes
• Hotkey Puck G2 : Yes
• PIP/PBP : Yes
• ICCsync : Yes

Software

• Display Pilot : Yes

Accessory Dimension and Weight

• Dimensions (HxWxD) (mm) : 477.6 - 627.6 x714.8x273.3
• Dimensions (HxWxD) (inch) : 18.8 - 24.7x28.1x10.8
• Net Weight (kg) : 10.7
• Net Weight (lb) : 23.6
