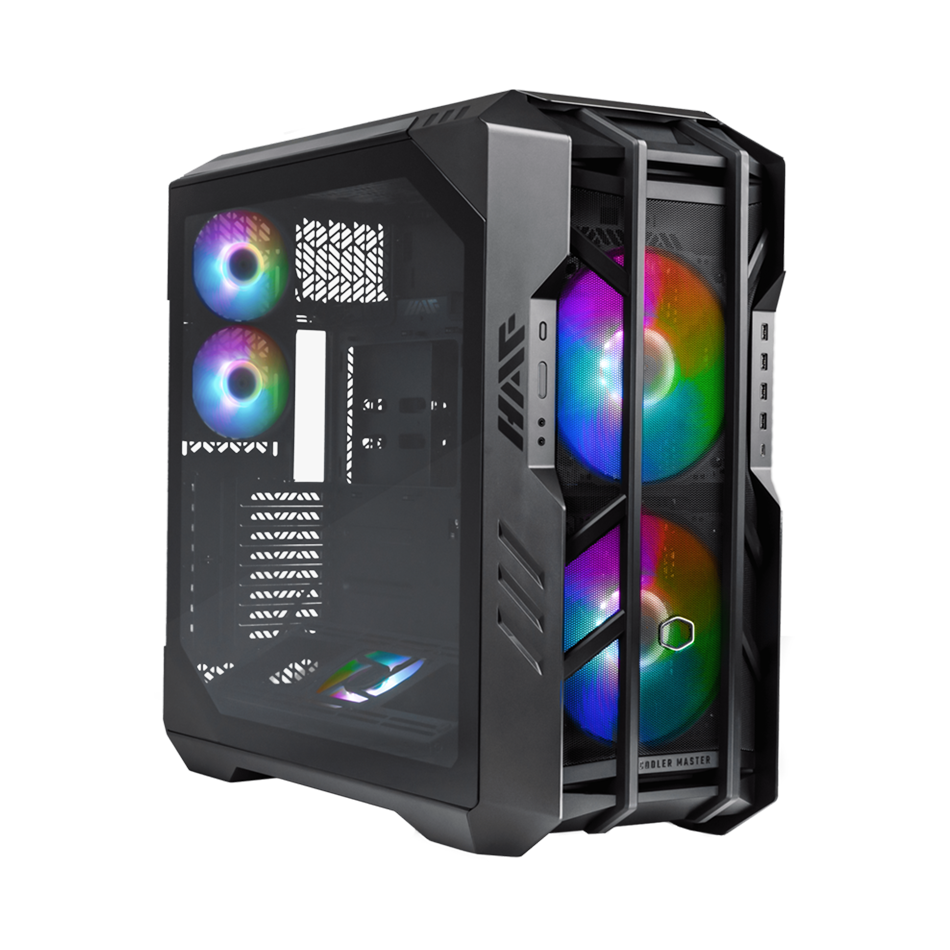

COOLER MASTER HAF 700 ARGB Full Tower ATX Case - Black

COOLER MASTER HAF 700 ARGB Full Tower Case - Titanium Grey

In Spirit of Cooler Masters HAF Legacy

HAF 700 embodies the spirit of HAFs performance oriented design, boasting attention to mechanical detail.

No Limits.

The HAF 700 is capable of housing up to SSI-EEB motherboards (E-ATX), as well as any sized graphics cards in BOTH horizontal and vertical orientations.

Rich Connectivity

The front I/O is designed to maximize the front connectivity for most high end motherboards, featuring four USB Gen 3.1 Type A ports, a USB Gen 3.2 Type C, a 4 pin audio/mic headset jack as well as a dedicated mic jack.

Mammoth Radiator Support

Unparalleled Options for Custom Cooling

480mm: Side Panel *1

360mm: Front Panel *1 or Bottom Panel *1 / Top Panel *2

240mm: Rear Panel *1

Advanced Mounting Options

The unique removable top panel design allows you to effortlessly install, reach and maintain cooling components such as fans and radiators even in builds with complex custom cooling systems.

This, coupled with the rotatable radiator/fan bracket included out of the box allows for an unparalleled building experience.

Exclusive 200mm SickleFlow ARGB PWM Performance Edition

HAF 700 comes with dual exclusive 200mm Sickleflow ARGB PWM "Performance Edition" fans tailored to strike a balance between performance potential and noise levels.

Integrated 7x PWM & 5x ARGB Hub

This chassis features a fully integrated PWM/ARGB Hub that allows for effortless cable management and control over multiple fans and ARGB devices. The Hub is fully compatible with ARGB Gen2 devices.

ARGB Gen2 Ready, Controller Included

ARGB Gen2 technology allows users to explore full range customization down to the lighting effecting of each individual LED, while remaining compatible with third party devices.

MasterPlus+ Software Integration

HAF 700 comes equipped with a software suite in MasterPlus+, facilitating user-friendly management and customization of the integrated ARGB Gen2 controller (A1).

The A1 controller plugin will automatically be activated on MasterPlus+ once the controller has been connected to the system.

Unrestricted Front Panel Intake

HAF 700 sports a fully meshed front panel, specifically designed to allow for maximum air intake.

With the front panel structurally reinforced to prevent resonation caused by fan vibrations, systems can run smoothly at minimal noise levels.

Multi Chamber Layout

HAF 700s structure segregates non heat sensitive components so heat dissipation can be targeted towards heat sensitive components at an overall higher efficiency.

Tool-less Vertical GPU Mounting (Patent Pending)

No more fiddling with screws! HAF 700 features a unique clamping mechanism that allows users to install, remove, and upgrade graphics cards without the need to use any tools.

Tool-less PSU Mount

To install PSUs, simply slide the power supply in place and secure it with the two included thumbscrews on the rear end of the case. No tools, no hassle.

Tool-less HDD Cage

The rear chambers includes a tool-less, swiveling drive cage that allows users to quickly access drives with ease.

Tool-less MultiFunction Brackets

Multifunction, repositionable brackets can be used to mount SSDs, HDDs, or pumps/reservoirs for liquid cooling.

Specifications

• Model Number : H700-IGNN-S00
• Exterior Color : Titanium Grey
• Materials - Exterior : Steel, Plastic
• Materials - Left Side Panel : Tempered Glass, Steel, Plastic
• Dimensions (L x W x H) : 556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)
• Motherboard Support : Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB
• Expansion Slots  : 8
• 2.5" / 3.5" Drive Bays (Combo) : 9 (4*HDD bracket, 5*Screw+Rubber)
• I/O Panel - USB Ports : 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)
• I/O Panel - Audio In / Out  : 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack
• Pre-installed Fans - Front  : 2x SickleFlow 200 ARGB PWM
• Pre-installed Fans - Rear  : 2x SickleFlow 120 ARGB PWM
• Pre-installed Fans - Bottom  : 1x SickleFlow 120 ARGB PWM
• Fan Support - Top  : 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)
• Fan Support - Front  : 2x 200mm
• Fan Support - Rear  : 2x 120mm
• Fan Support - Bottom  : 3x 120/140mm
• Fan Support - Side  : 4x 120mm / 3x 140mm
• Radiator Support - Top  : Up to 2x 360mm / 1x 420mm
• Radiator Support - Rear  : Up to 240mm
• Radiator Support - Bottom  : Up to 420/360mm
• Radiator Support - Side  : Up to 480/420/360mm
• Clearance - CPU Cooler : 166mm / 6.53 inch
• Clearance - PSU  : 200mm / 7.87 inch
• Clearance - GFX  : 490mm
• Cable Routing - Behind Motherboard Tray  : 90-101mm
• Included Accessories  : 1x Rotatable Radiator Bracket, 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub
• Dust Filters  : Bottom, Right side
• Power Supply Support : Bottom Mount, ATX
• Series : HAF Series
• Size : Full Tower
• Note  : * For regular 30mm thick radiators, for thicker please reference compatibility sheet.
