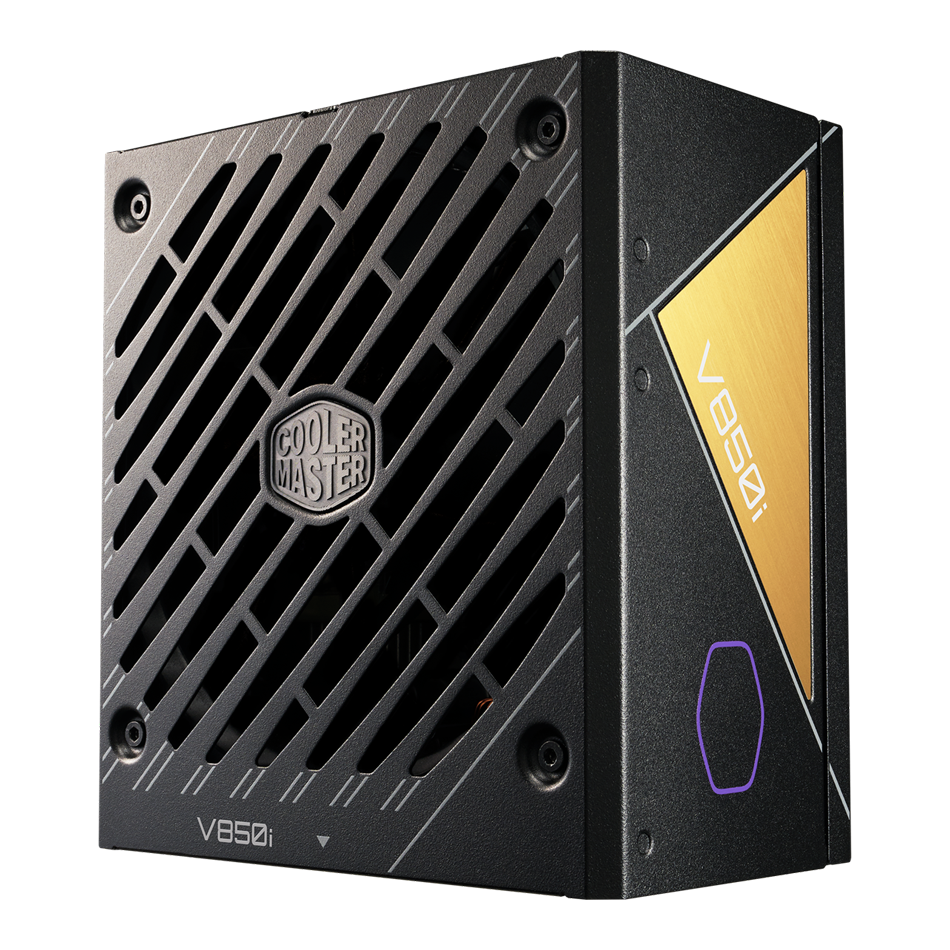

COOLER MASTER V850 GOLD I MULTI 80 Plus Modular ATX 3.0 Power Supply - Black

COOLER MASTER V850 GOLD I MULTI - 80 Plus Gold Gen 5.0 Fully Modular Power Supply Unit - Black

V850 Gold i multi

Fully Modular 80 PLUS Gold Digital Power Supply

Make It Digital

An indispensable digital power supply in the digital age, in addition to its excellent hardware design and materials, coordinate MasterPlus+ the platform to let you manage power more effectively.

The Future Starts Now

This power supply unit contains a semi-digital platform. This allows you to connect the PSU directly to the motherboard via an included USB 3.0 cable.

The Power is Yours

With the digital platform you can monitor performance in real time, tracking details such as fanspeed, temperature, and current load. You can even get readouts of performance data collected over time. Make the most of your PSU by taking control of it directly.

Fully Support ATX3.0

Compliant with ATX3.0 standard and 12VHPWR connector, the V Gold i can support the peak power up to 200% more than rated power.

Play Loud, Cool Quietly

The V Gold i uses a 135mm silent fan. This bearing is ideal because of it's quiet performance in both low and high fanspeed scenarios.

Build Your Way

With a fully modular setup, each system only needs to include the cables required for its individual components. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling and carrying an aesthetic benefit.

Built to Last

The V Gold i series offers top quality power supply units that can and will deliver professional grade performance. Whether it’s for the occasional light session after work or several consecutive hours of hardcore competitive play, you can trust this PSU for all your gaming and other normal computing needs. Cooler Master believes in this product's safety and reliability so much that it comes standard.

Specifications

• Model : MPZ-8501-AFAG

• ATX Version : ATX 12V Ver. 3.0

• PFC : Active PFC

• Input Voltage : 100-240V

• Input Current  : 12-6A

• Input Frequency : 50-60Hz

• Dimensions (L x W x H)  : 160 x 150 x 86 mm

• Fan Size : 135mm

• Fan Bearing  : FDB

• Fan Speed : 2200 RPM

• Efficiency : ≥90% @ Typical Load

• 80 PLUS Rating : 80 PLUS Gold

• ErP 2014 Lot 3  : Yes

• Operating Temperature : 0-50°C

• Power Good Signal : 100 - 150 ms

• Hold Up Time :  ≥ 20ms

• MTBF : >100,000 Hours

• Protections  : OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection

• Regulatory  : UL, TUV, CE, FCC, BSMI, CCC, KC, KCC, EAC, BIS, UKCA, RoHS2.0

• ATX 24 Pin Connectors : 1

• EPS 4+4 Pin Connectors : 1

• EPS 8 Pin Connector : 1

• SATA Connectors  :12

• Peripheral 4 Pin Connectors : 4

• PCI-e 6+2 Pin Connectors  : 3

• 12VHPWR Connector  : 1

• USB Connectors : 1

• Series  : V Gold Series

• 80 Plus : Gold

• Modular : Fully Modular

• Wattage : Above 750W
