COOLER MASTER Vertical GPU Holder Kit V3 White

COOLER MASTER Vertical Graphics Card Holder Kit V3 - White

Vertical Graphics Card Holder Kit V3

Make of It What You Will

Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.

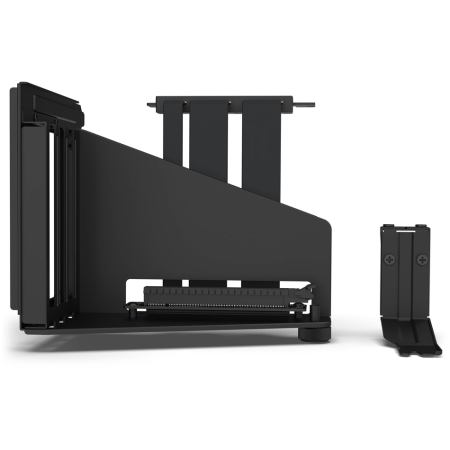

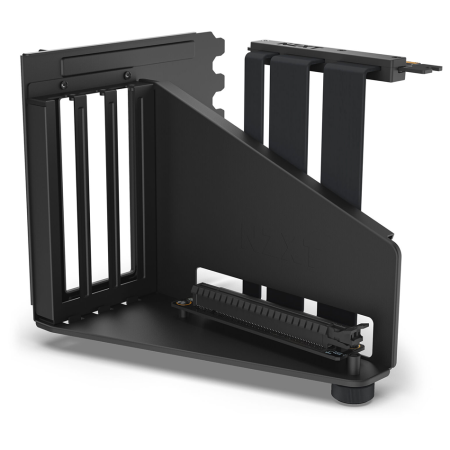

Available in both Black and White Colorations

The Vertical GPU Holder Kit V3 is available in both BLACK and WHITE so you can choose the color that best matches your setup!

Cooler Master Riser Cable PCIe 4.0 Included

Allows for efficient data transmission and connectivity between the latest hardware components.

Learn More about our premium PCIe 4.0 riser cables:

200mm Riser Cable

300mm Riser Cable

Effortlessly Showcase Your Graphics Card

Bring the best out of your components by showing off your GPU.

ATX & m-ATX Compatibility

Designed for both ATX and mATX cases, this accessory is compatible with the lastest GPUs available on the market.

Installation in a m-ATX Case

When installing the Vertical GPU Holder Kit V3 in a m-ATX case users may need to remove the rear case fan for additional clearance.

It is also necessary to use low profiles CPU air-coolers, all-in-one liquid coolers, or custom water cooling loops to guarantee optimal clearances between components.

Compatible with all Standard ATX Chassis

The newly revised Vertical Graphics Card Holder Kit fits all standard ATX chassis, now providing even more options for adjusting graphics card position.

and all Standard M-ATX Chassis

Compatibility with m-ATX cases is guaranteed thanks to the brand new design that simply requires 4 PCi slots for installation.

GPU connection to external monitors is facilitated due to the modular design, now 100% adjustable according to preference and needs.

Toolless, Instantly Adjustable Design

Granted compatibility with all standard ATX and m-ATX chassis.

X Axis Adjustability

Toollessly adjustable up to 65mm horizontally...

Z Axis Adjustability

...as well as up to 30mm towards the side panel.

Premium Materials, 42% Increased Durability

Premium SGCC steel provides reliable support, eliminating possibilities of sagging or deformation.

Supports up to 3.5kg*.

*Reference weight

GeForce RTX 4090 Founder's Edition: 2.2kg

ROG STRIX GeForce RTX 4090 O24G: 2.5kg

Natively Compatible with "flow-through" GPU Coolers

The fully ventilated design is specially designed to allow unrestricted airflow for "flow-through" GPU coolers.

Intuitive Installation Process

The modular design allows GPUs to placed in the system after the holder has been fixed in a preferred layout.

Specifications

• Model Number : MCA-U000R-WFVK03 (White)
• Color(s) : White / Gray
• Dimensions (L x W x H) : GFX Holder kit: 249 x 148.1 x 141.8 mm (close size), GFX Holder kit: 305 x 178.1 x 141.8 mm (open size), Riser cable: 165mm (6.49in)
• Supported Chassis Type  : E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
• Supported Graphics Cards : Any length, up to 3 slots wide
• Riser Cable Model : Riser Cable PCIe 4.0 x16
• Compatibility  : PCIe 4.0 and older
• CE Certifications Number : BKC210933AC
• PCB / Wire UL Numbers   : E1895721 / E252840
• Component Materials  : PCBA, Silver Plated Copper Wire 30 AWG
• Insulation Materials : PE, TPE
• Other Materials : ABS, PP, SGCC Steel, Nickel, Gold, Brass
• Connectors : PCIe x16 Male to PCIe x16 90° Female
• Rated Working Voltage and Current : DC 12V / 5A
• Operating Temperature : -20° to +100° Celsius
• Required PCI slots : Minimum 4 PCI slots required for mounting
• Weight : 0.81 kg
• Series : Others
