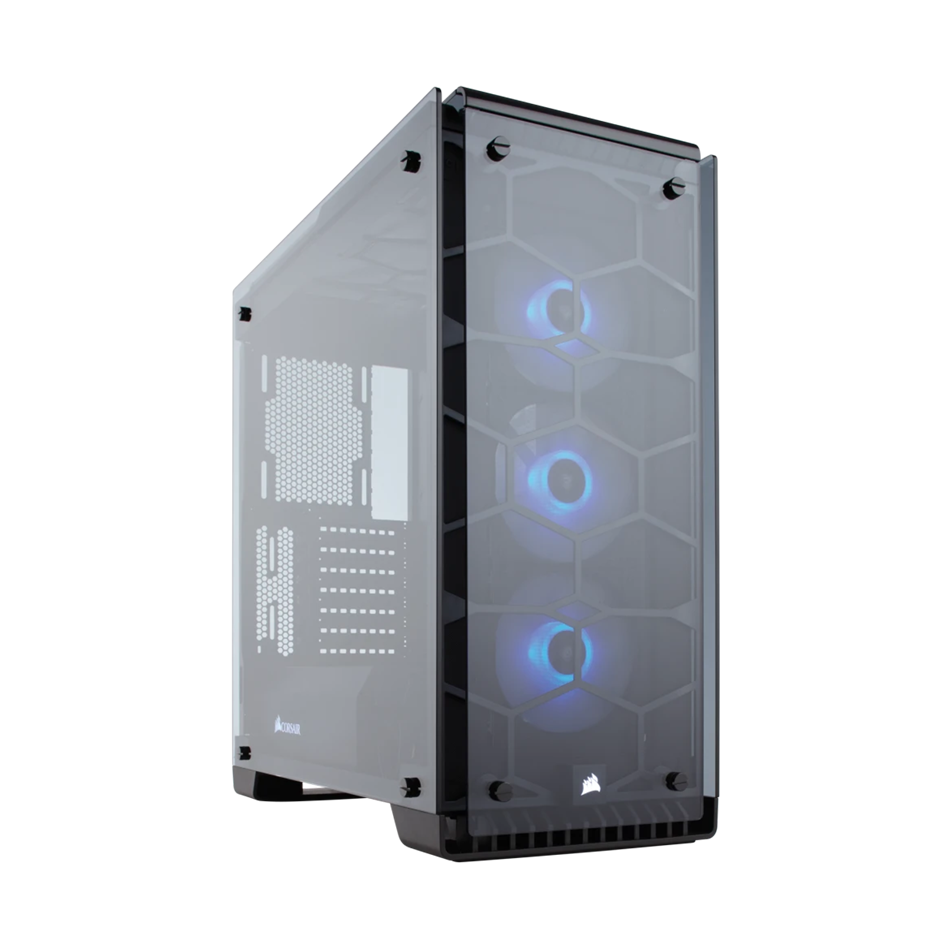

CORSAIR Crystal Series 570X RGB Mid Tower Case

CORSAIR Crystal Series 570X RGB ATX Mid-Tower Case

Clearly Superior

With immaculate tempered glass enclosing the entire chassis, every component of your build is on display for all to see, including three vivid SP120 RGB LED fans and a built-in LED controller.

The Final Frontier

Room for up to 6 case fans, and fully compatible with 360mm, 280mm, and 120mm radiators. Removable fan trays in the front and top of the chassis allows for additional space or mounting cooling outside of the chassis.

Four-panel tempered glass on every side of the case

Possibly the most beautiful case CORSAIR has ever made. With tempered glass enclosing the entire chassis, every component of your build is on display for all to see.

Direct airflow path to keep your CPU and GPU running cooler

Light up your build with brilliant LED effects. Three included SP120 RGB LED fans and included LED controller keeps your components running cool.

Room for practically anything

Create as much space as you want with room for up to 6 case fans, virtually every size radiator or by removing fan trays.

Cable management made simple

Cable routing channels with included velcro cable straps for clean cable management.

Direct Airflow Path

Drive cages are moved up and out of the path of cool air from the front intake fans and high-temperature components.

Minimal setup

With tool-free drive installation and three-point dust filter access, the CORSAIR Crystal 570X is easy to build — and even easier to keep clean. You âll spend less time on setup and maintenance, and more time enjoying your PC.

Contents and Specifications

Package contents

• Crystal Series 570X RGB ATX Mid-Tower Case
• Accessory kit
• Quick start guide

Compatibility

• Motherboard: ATX (Up to 272mm), MicroATX, Mini ITX

Technical specifications

• Dimensions (L x W x H): 480 x 234 x 512mm
• Maximum GPU Length: 370 mm
• Maximum CPU Cooler Height: 170mm
• Maximum PSU Length: 225mm
• Expansion Slots: 7
• 3.5" Hard Drive Bays: 2
• 2.5" Drive Bays: 2

• Cooling Layout:
• Front: 3 x 120mm or 2 x 140mm
• 3 x 120mm RGB LED Included
• Top: 2 x 120/140mm
• Rear: 1 x 120mm
• Radiator Compatibility:
• 360mm: Front only
• 280mm: Front only
• 240mm: Front or Top
• 120mm: Front, Top, or Rear
• Dust filters on all intakes
• Front I/O Panel includes: 3-Button RGB Controller, USB 3.0 port (2), Headphone and Microphone jacks, Power on button
