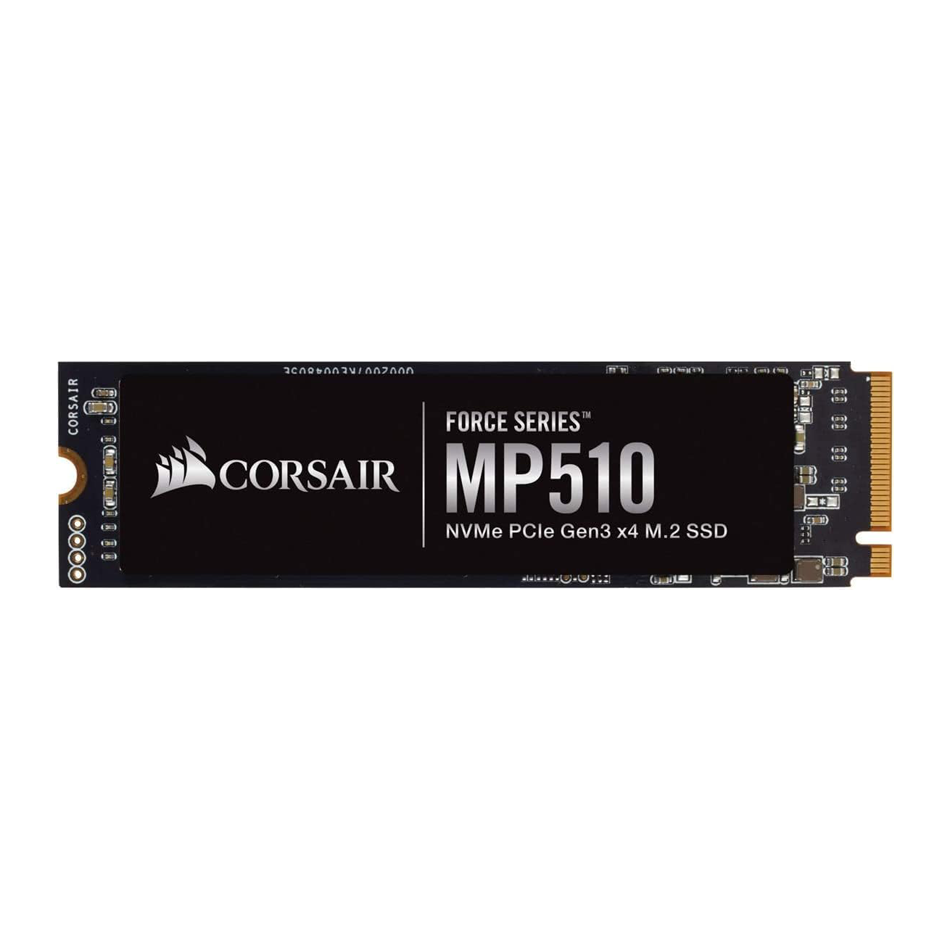

CORSAIR Force Series MP510 M.2 SSD - (R-3,480MB/s,W-2,000MB/s) 480GB

Corsair Force Series MP510 M.2 SSD - 480GB

EXTREME STORAGE PERFORMANCE

All-new extreme data performance controller delivers up to 3,480MB/sec sequential read, and up to 3,000MB/s sequential write, for blazing fast read, write and response times.

HIGH-SPEED NVME PCIE GEN3 x4 M.2 INTERFACE

For simple connection and maximum bandwidth.

HIGH-DENSITY 3D TLC NAND

Provides the ideal mix of performance, endurance and value to keep your drive performing at its best for years.

COMPACT M.2 2280 FORM FACTOR

Ultra-compact M.2 2280 size fits directly into your notebook or motherboard with no additional cables or connectors.

Specifications

• SSD Unformatted Capacity : 480 GB
• SSD Smart Support : Yes
• Weight : 0.055kg
• SSD Interface : PCIe Gen 3.0 x4
• SSD Max Sequential Read CDM : Up to 3,480MB/s
• SSD Max Sequential Write CDM : Up to 2,000MB/s
• Max Random Write QD32 IOMeter : Up to 440K IOPS
• Max Random Read QD32 IOMeter : Up to 360K IOPS
• Form Factor : M.2 2280
• Dimensions : 80mm x 22mm x 3mm
• Application Consumer : Client
• Weight : 0.0082
• NAND Technology : 3D TLC NAND
• Voltage : 3.3V, +/- 5%
• Endurance : 800 TBW
• TBW : 800
• MTBF : 1,800,000 Hours
• DEVSLP : L1.2 < 2mW
• Encryption : AES 256-bit Encryption
• Storage Temperature : -40°C to +85°C
• SSD Operating Temperature : 0°C to +70°C
• SSD Shock : 1500 G
• Storage Humidity : 93% RH (40° C)
• Operating Humidity : 90% RH (40° C)
• Vibration : 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
