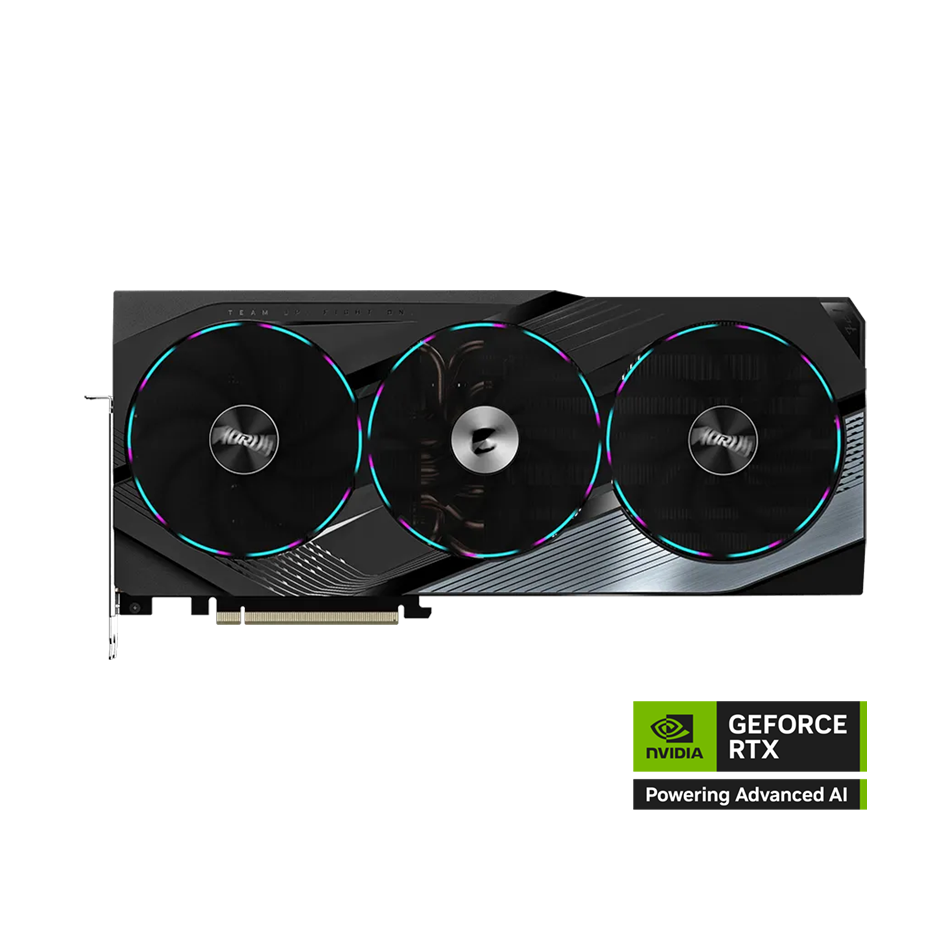

GIGABYTE AORUS NVIDIA GEFORCE 4070 Ti AORUS ELITE 12GB OC GDDR6X Graphic Card - Black

Brand

AcerAcer
Availability: In stock
SKU
GV-N407TAORUS E-12GD
$1,019.70
  • Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX 4070 Ti
  • Integrated with 12GB GDDR6X 192bit memory interface
  • WINDFORCE cooling system
  • RGB Fusion
  • Dual BIOS
  • Protection metal back plate
  • Anti-sag bracket
  • CORE CLOCK : 2655 MHz (Reference card: 2610 MHz)


Delivery & Return

Categories:

GIGABYTE AORUS NVIDIA GEFORCE 4070Ti ELITE OC 12GB GDDR6X DLSS 3 Graphics Card - Black

The Ultimate Platform for Gamers and Creators

Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors

Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

Up to 4x performance with DLSS 3

vs. brute-force rendering

Third-Gen RT Cores

Up to 2x ray tracing performance

WINDFORCE COOLING SYSTEM

THE EVOLVING POWER OF WINDFORCE

The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

COOLING, UPSCALED.

AORUS BIONIC FAN TECH

The sharks dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.

DOUBLE BALL BEARING

The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

DIRECTLY.

SO FAST.

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

THE OTHER WAY AROUND.

ALTERNATE SPINNING

Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

CHANNELED AIRFLOW.

ANGULAR FIN DESIGN

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

MAKE ROOM FOR THE AIRFLOW.

SCREEN COOLING

To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .

EXCELLENT IN ESSENTIAL

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

PCB COATING

Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture resistant - prevents unwanted conduction paths and board damage.

Corrosion resistant - protects from salt spray, humidity, and corrosion.

BUILT STRONG

EXTREME OVERCLOCKING

The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

  • Graphics Processing : GeForce RTX 4070 Ti
  • Core Clock : 2655 MHz (Reference card: 2610 MHz)
  • CUDA® Cores : 7680
  • Memory Clock  21 Gbps
  • Memory Size : 12 GB
  • Memory Type : GDDR6X
  • Memory Bus : 192 bit
  • Card Bus : PCI-E 4.0
  • Digital max resolution : 7680x4320
  • Multi-view : 4
  • Card size : L=342 W=153 H=70.6 mm
  • PCB Form : ATX
  • DirectX : 12 Ultimate
  • OpenGL : 4.6
  • Recommended PSU : 750W
  • Power Connectors : 16 pin*1
  • Output

                    DisplayPort 1.4a *3

                    HDMI 2.1 *1

  • Accessories

                    1. Quick guide

                    2. Warranty registration

                    3. Anti-sag bracket

                    4. Anti-sag bracket installation guide

                    5. One 16-pin to three 8-pin power adaptor

                    6. AORUS Metal sticker
