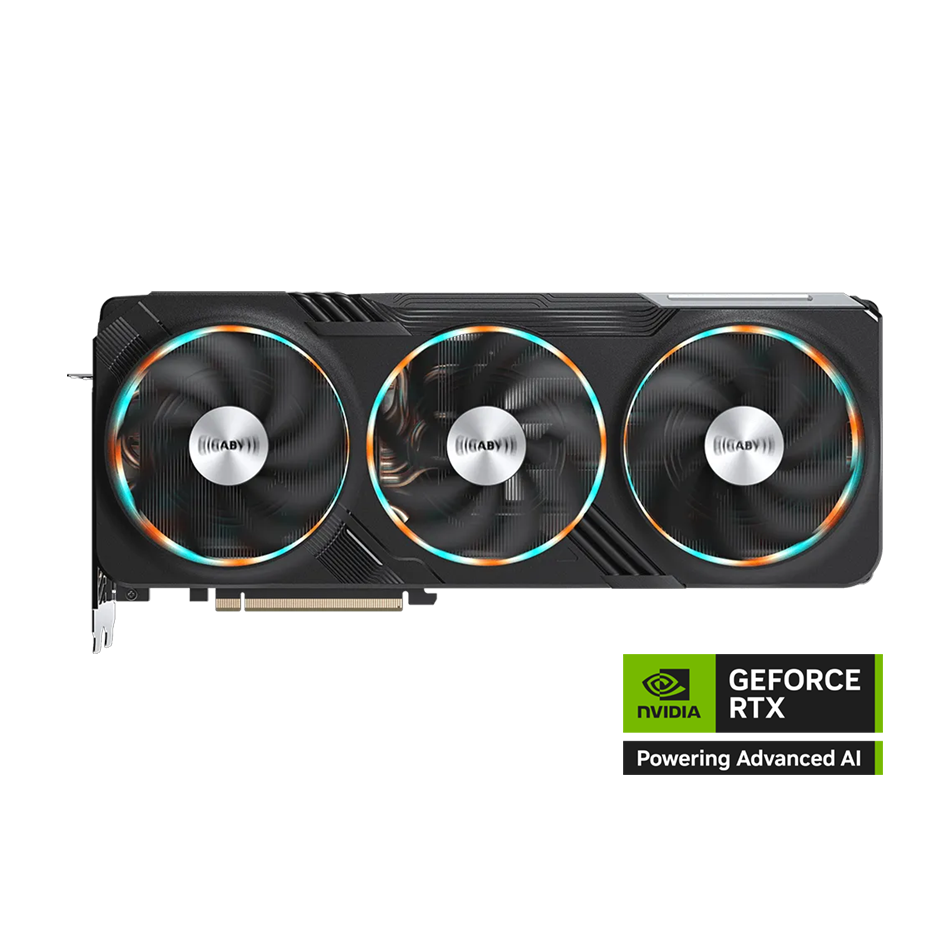

GIGABYTE GEFORCE 4070 Ti GAMING OC 12GB GDDR6X DLSS 3 Graphic Card - Black
Brand
Acer- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4070 Ti
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- Anti-sag bracket
Categories:
GIGABYTE NVIDIA GEFORCERTX 4070Ti Gaming OC 12GB GDDR6X DLSS 3 Graphics Card
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
VAPOR CHAMBER & HEAT-PIPE
The vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
- Graphics Processing : GeForce RTX 4070 Ti
- Core Clock : 2640 MHz (Reference card : 2610 MHz)
CUDA® Cores : 7680
- Memory Clock : 21 Gbps
- Memory Size : 12 GB
- Memory Typ : GDDR6X
- Memory Bus : 192 bit
- Card Bus : PCI-E 4.0
- Digital max resolution : 7680x4320
- Multi-view : 4
- Card size : L=336 W=140 H=58 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 16 pin *1
- Output : DisplayPort 1.4 *3
HDMI 2.1 *1
- Accessories
1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to two 8-pin power adaptor
