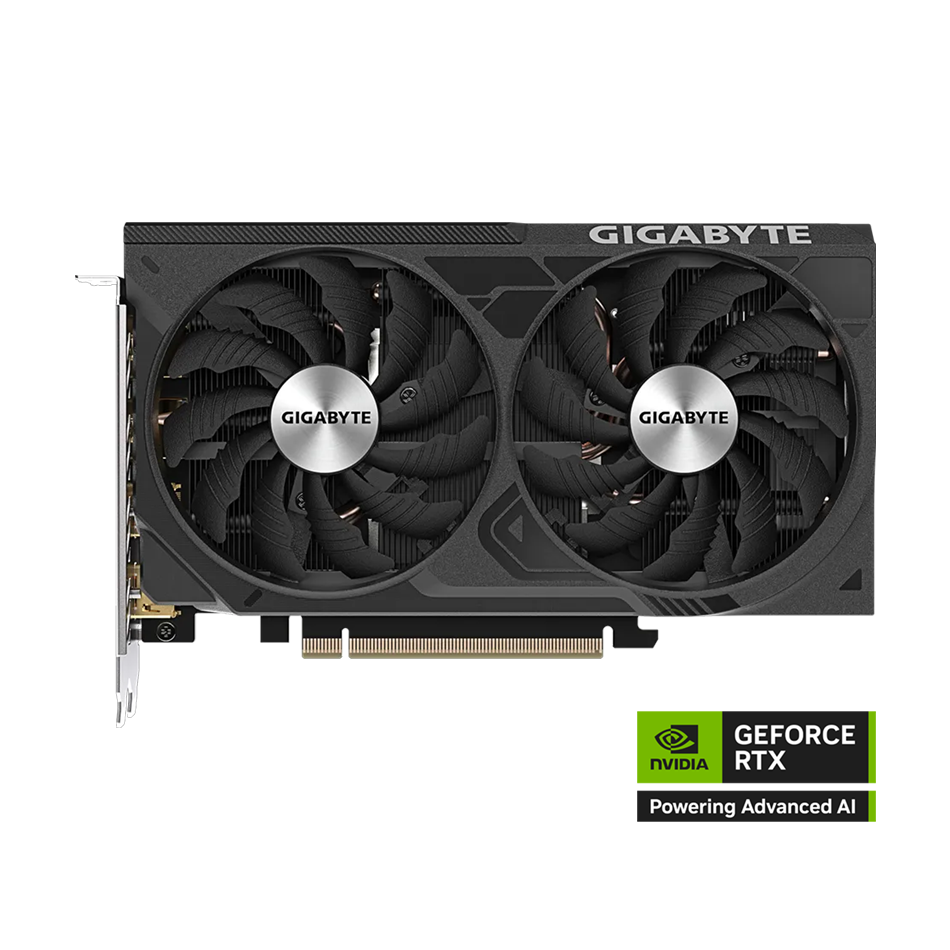

GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC 16GB Graphic Card - Black

Brand

AcerAcer
Availability: Out of stock
SKU
GV-N406TWF2OC-16GD
$511.50
  • Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX™ 4060 Ti (16GB)
  • Integrated with 16GB GDDR6 128bit memory interface
  • WINDFORCE cooling system
  • Protection metal back plate
  • CORE CLOCK : 2565 MHz (Reference Card: 2535 MHz)


Delivery & Return

Categories:

GIGABYTE NVIDIA GEFORCE RTX 4060Ti WINDFORCE OC 16GB GDDR6 DLSS 3 Graphics Card - Black

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.

EXCELLENT IN ESSENTIAL

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

BUILD STRONG

ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications

  • Graphics Processing : GeForce RTX™ 4060 Ti (16GB)
  • Core Clock : 2565 MHz (Reference Card: 2535 MHz)
  • CUDA® Cores : 4352
  • Memory Clock : 18 Gbps
  • Memory Size : 16 GB
  • Memory Type : GDDR6
  • Memory Bus : 128 bit
  • Card Bus : PCI-E 4.0
  • Digital max resolution : 7680x4320
  • Multi-view : 4
  • Card size : L=201 W=120 H=41 mm
  • PCB Form : ATX
  • DirectX : 12 Ultimate
  • OpenGL :  4.6
  • Recommended PSU : 500W
  • Power Connectors : 8 pin*1
  • Output : DisplayPort 1.4a*2

                            HDMI 2.1a*2

  • Accessories : Quick guide
