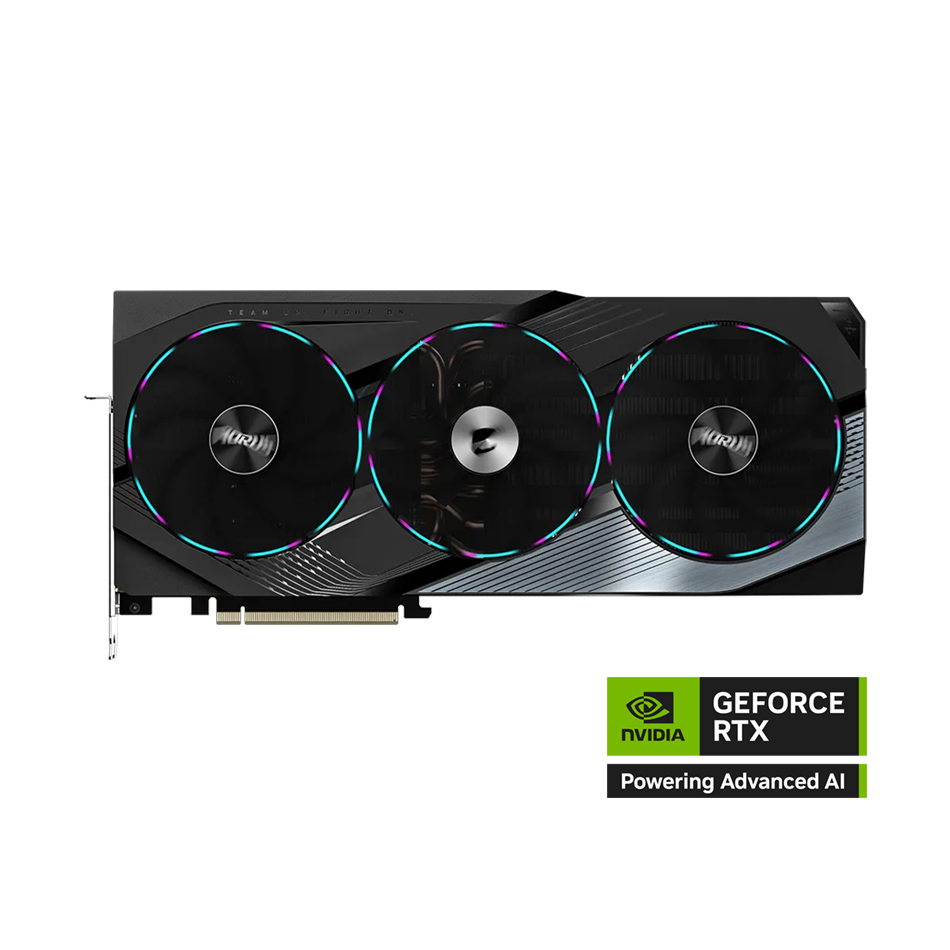

GIGABYTE NVIDIA GEFORCE 4070 SUPER Aorus Master 12GB Graphic Card - Black

GIGABYTE AORUS NVIDIA GEFORCE 4070 SUPER Master 12GB GDDR6X DLSS 3 Graphics Card

WINDFORCE COOLING SYSTEM

THE EVOLVING POWER OF WINDFORCE

The WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

COOLING, UPSCALED.

AORUS BIONIC FAN TECH

The sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.

DOUBLE BALL BEARING

The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

DIRECTLY.

SO FAST.

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

THE OTHER WAY AROUND.

ALTERNATE SPINNING

Each fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

CHANNELED AIRFLOW.

ANGULAR FIN DESIGN

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

MAKE ROOM FOR THE AIRFLOW.

SCREEN COOLING

To create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.

RGB FUSION

The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER

EXCELLENT IN ESSENTIAL

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

PCB COATING

Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.

Moisture resistant - prevents unwanted conduction paths and board damage.

Corrosion resistant - protects from salt spray, humidity, and corrosion.

Specifications

• Graphics Processing : GeForce RTX™ 4070 SUPER
• Core Clock : 2655 MHz (Reference card: 2475 MHz)
• CUDA® Cores : 7168
• Memory Clock : 21 Gbps
• Memory Size : 12 GB
• Memory Type : GDDR6X
• Memory Bus : 192 bit
• Card Bus : PCI-E 4.0
• Digital max resolution : 7680x4320
• Multi-view : 4
• Card size : L=342 W=153 H=70.6 mm
• PCB Form  : ATX
• DirectX : 12 Ultimate
• OpenGL : 4.6
• Recommended PSU : 700W
• Power Connectors : 16 pin*1
• Output : DisplayPort 1.4a *3

                            HDMI 2.1a *1

• Accessories

                1. Quick guide

                2. Warranty registration

                3. Anti-sag bracket

                4. Anti-sag bracket installation guide

                5. One 16-pin to two 8-pin power adaptor

                6. AORUS Metal sticker
