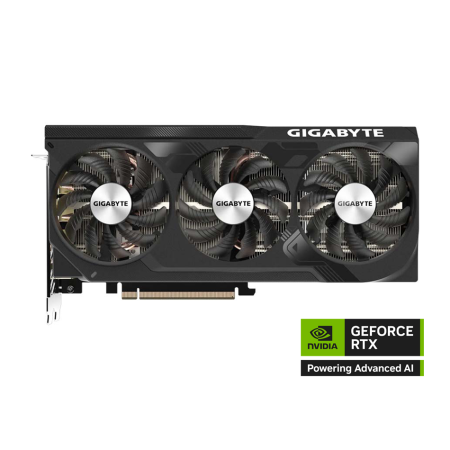

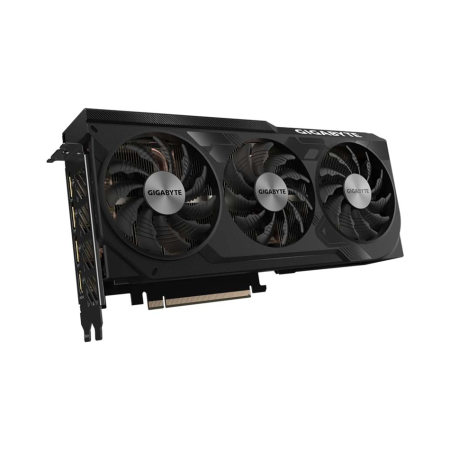

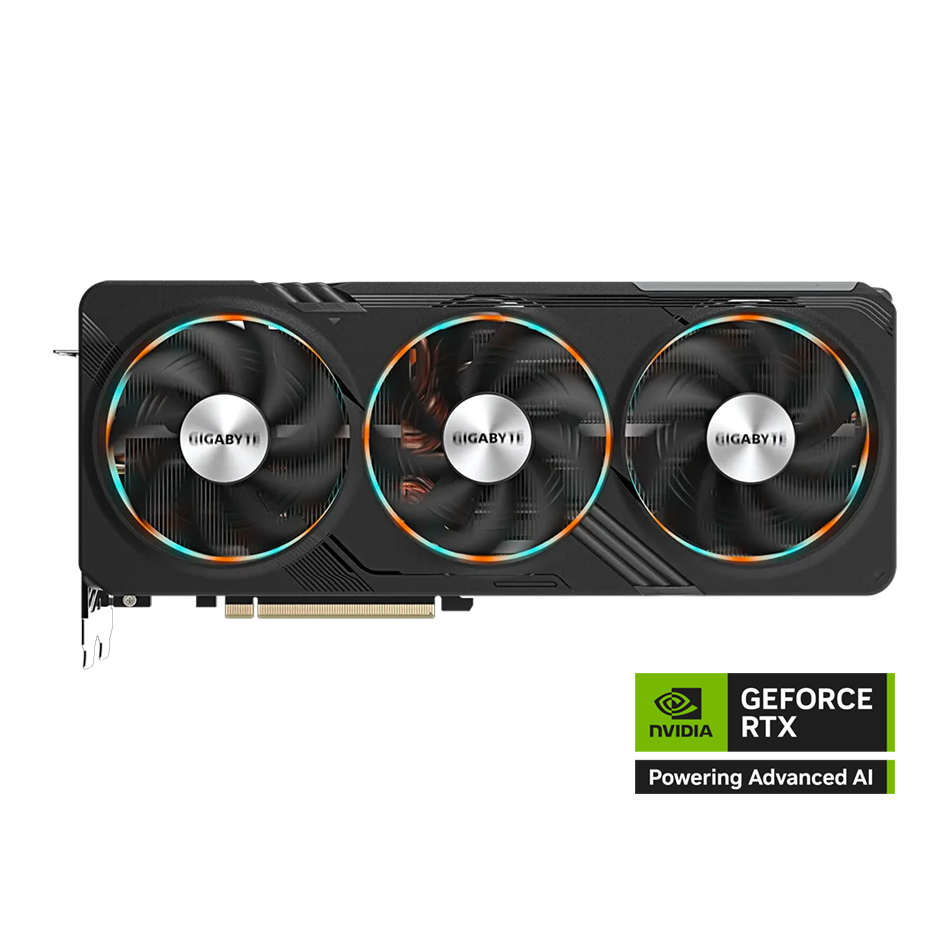

GIGABYTE NVIDIA GEFORCE 4070 SUPER Gaming OC 12GB Graphic Card - Black
Brand
Acer- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070 SUPER
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- CORE CLOCK : 2565 MHz (Reference card: 2475 MHz)
Categories:
GIGABYTE NVIDIA GEFORCE 4070 SUPER Gaming OC 12GB GDDR6X DLSS 3 Graphics Card - Black
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
BUILT STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
- Graphics Processing : GeForce RTX™ 4070 SUPER
- Core Clock : 2565 MHz (Reference card: 2475 MHz)
- CUDA® Cores : 7168
- Memory Clock : 21 Gbps
- Memory Size : 12 GB
- Memory Type : GDDR6X
- Memory Bus : 192 bit
- Card Bus : PCI-E 4.0
- Digital max resolution : 7680x4320
- Multi-view : 4
- Card size : L=300 W=130 H=57.6 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 700W
- Power Connectors : 16 pin*1
- Output : DisplayPort 1.4a *3
HDMI 2.1a *1
- Accessories
1. Quick guide
2. Warranty registration
3. One 16 pin two 8-pin power adaptor
