GIGABYTE NVIDIA GEFORCE RTX 3080 GAMING OC 12GB GDDR6X Graphics Card - Black
Brand
Acer- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX 3080
- Integrated with 12GB GDDR6X 384-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
- CORE CLOCK : 1755 MHz (Reference Card : 1710 MHz)
Categories:
GIGABYTE NVIDIA GEFORCE RTX 3080 GAMING OC 12GB GDDR6X Graphics Card - Black
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

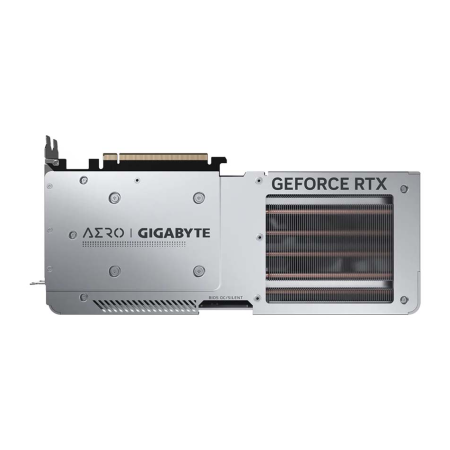

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your games requirements.
Specifications
- Graphics Processing : GeForce RTX 3080
- Core Clock : 1755 MHz (Reference Card: 1710 MHz)
- CUDA® Cores : 8960
- Memory Clock : 19000 MHz
- Memory Size : 12 GB
- Memory Type : GDDR6X
- Memory Bus : 384 bit
- Memory Bandwidth (GB/sec) : 912 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680x4320
- Multi-view : 4
- Card size : L=320 W=129 H=55 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*2
- Output
DisplayPort 1.4a *3
HDMI 2.1 *2
- SLI Support : N/A
- Accessories
1. Quick guide
2. Warranty registration
