MSI MAG Max F12A-3H ARGB PWM Triple Fan Kit With Controller - Black

Brand

AcerAcer
Availability: In stock
SKU
OE3-7G09F04-W57
$49.50
  • Fan Included: Addressable RGB Fan x 3
  • Bundle with ARGB Controller and RF Remote


Delivery & Return

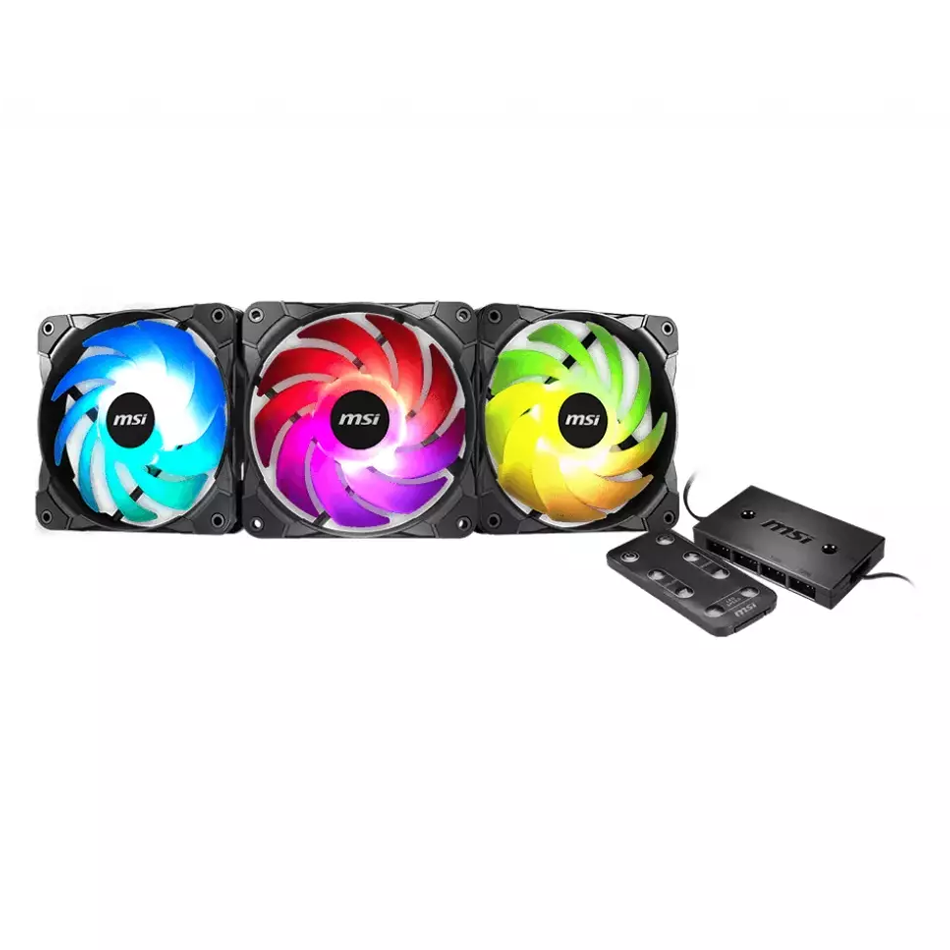

MSI MAG Max F12A-3H PWM 3 Fans ARGB Controller

Control is in Your Hands

The 4-PIN PWM design fully supports speed control via the MSI Dragon Center or BIOS setting. This gives users a more complete overview of their fans performance as well as the option to decide what they want for their fans.

Less is More

The 1 to 3 cable provides multiple positive attributes. By decreasing the total number of cables from 3 to 1, it saves up more space and makes it easier to keep things organized. This leads to a more embellished case interior as well as solving the issue of not having enough sys fan power pin on the motherboard.

Anti-Vibration Gasket Pads

Noise and vibration are both reduced with the brand new anti-vibration gasket pad. The silicone-made pad is shock-absorbing and is capable of reducing the vibration of the fan to the minimum. This decreases the fans noise and improves the overall users experiences.

MYSTIC LIGHT SYNC

MSI Mystic Light SYNC built with open SDK for all the peripherals. With Mystic Light application, you can easily control all the color and effect in one application.

*Some lighting effects require the MSI Mystic Light software and vary by model.

The Default lighting controls with control button: Static, Flashing, Rainbow, Breathing, Meteor, MB Sync and Close.

TAKE CONTROL OF THE SPECTRUM

The Addressable RGB Controller with RF Remote easily fits inside your case. It conveniently attaches to any metallic surface with its built in magnet, and allows users to cycle through lighting effects, effect speeds, and colors with remote control.

1 TO 8 ARGB HUB

The 1 to 8 ARGB LED HUB helps you have more attractive ways to decorate your gaming rig by the LED devices

Sync With the motherboard

Connect the LED Switch port on the hub to the front panel of the chassis to make the reset button an LED effect button. (The reset button and the led effect button cannot work at the same time)

LED effects control Button

Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

7 LED EFFECTS

The included 1 to 8 LED HUB can manage system lights via the LED effects control button and provides seven different modes of lighting effects.

CREATES A SYMPHONY OF COLOR

The MAG MAX F12A-3H features addressable RGB LEDs function that controls fans' lighting effects through the motherboard and supports plug-and-play functionality to showcase vibrant lighting and bright lighting changes.

Fans of MSI ARGB Series are compatible with 5V JRainbow headers.

Please checks the compatibility list for more information.

MAG MAX F12A-3H

Fan Included :     Addressable RGB Fan x 3

Fan Dimension :     120 x 120 x 25 mm/ 4.7 x 4.7 x 1 inch

Light :     Addressable RGB

Fan Speed :     600 ± 200 (30%DUTY) ~ 1500 ± 10% RPM

Air Flow :     8 ~ 40.1 CFM

Air Pressure :     0.30 ~ 1.50 mmH2OM

Fan Noise Level :     20.0 ~ 28.0 dBA

Rated Voltage :     12 VDC

Rated Current :     0.15A ± 20%

Bearing Type :     Hydro Bearing

Fan Connector :     3-Pin (Addressable RGB) / 4-Pin (PWM)

Fan Weight :     161 g x 3

ARGB CONTROLLER

Dimension :     80 x 46 x 12 mm/ 3.1 x 1.8 x 0.5 inch

Connector :    SATA Power x 1/ 3-Pin(Addressable RGB) x 8

RF REMOTE

Selectable Effect Speed Support :     Yes

Selectable ARGB Color Support :     Yes

Selectable Effect Mode Support :     Yes

Specifications

  • FAN INCLUDED :     Addressable RGB Fan x 3
  • FAN SPEED  :     600 ± 200 (30%DUTY) ~ 1500 ± 10% RPM
  • FAN NOISE LEVEL :     20.0 ~ 28.0 dBA
  • FAN CONNECTOR :     3-Pin (Addressable RGB) / 4-Pin (PWM)
  • LIGHT :     Addressable RGB
  • AIR FLOW :     8 ~ 40.1 CFM
  • AIR PRESSURE :     0.30 ~ 1.50 mmH2O
  • RATED VOLTAGE :     12 VDC
  • RATED CURRENT : 0.15A ± 20%
  • BEARING TYPE :     Hydro Bearing
  • ARGB CONTROLLER DIMENSION :     80 x 46 x 12 mm/ 3.1 x 1.8 x 0.5 inch
  • ARGB CONTROLLER CONNECTOR :     SATA Power x 1/ 3-Pin (Addressable RGB) x 8
  • RF REMOTE SELECTABLE EFFECT SPEED SUPPORT :     Yes
  • RF REMOTE SELECTABLE ARGB COLOR SUPPORT :      Yes
  • RF REMOTE SELECTABLE EFFECT MODE SUPPORT :     Yes
  • PACKAGE CONTENTS :     1 to 3 PWM Fan Splitter Cable 450 mm x 1
                                                         RF Remote x 1
                                                         ARGB Controller x 1
                                                         Addressable RGB Fan x 3
                                                         Screw x 14
  • WEIGHT : 161 g x 3
  • DIMENSION : 120 x 120 x 25 mm/ 4.7 x 4.7 x 1 inch
