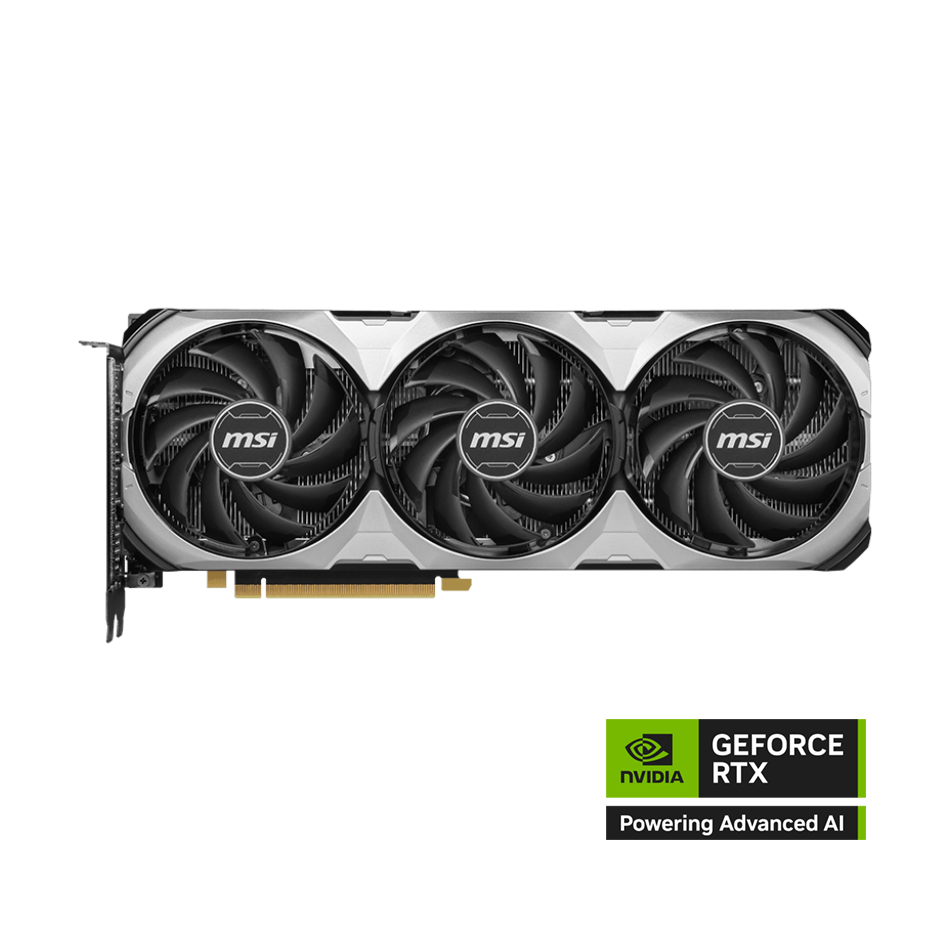

MSI NVIDIA GEFORCE 4060 TI VENTUS 3X 8GB E OC DLSS Graphic Card - Black
Brand
Acer
Boost Clock / Memory Speed
- 2565 MHz / 18 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Categories:
MSI NVIDIA GEFORCE RTX 4060Ti VENTUS 3X 8GB GDDR6 OC DLSS 3 Graphics Card - Black
Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Take The Essentials
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
Revolutionary
Triple-Fan Thermal
Three fans on a huge heatsink ensures a cool and quiet experience.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Copper baseplate
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Airflow control
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Specifications
- Model Name : GeForce RTX™ 4060 Ti VENTUS 3X 8G OC
- Graphics Processing Unit : NVIDIA® GeForce RTX™ 4060 Ti
- Interface : PCI Express® Gen 4 x16 (uses x8)
- Core Clocks : Extreme Performance: 2580 MHz (MSI Center)
Boost: 2565 MHz
- CUDA® CORES : 4352 Units
- Memory Speed : 18 Gbps
- Memory : 8GB GDDR6
- Memory Bus : 128-bit
- Output : DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
- HDCP Support : Y
- Power consumption : 160 W
- Power connectors : 8-pin x 1
- Recommended PSU : 550 W
- Card Dimension (mm) : 308 x 120 x 43 mm
- Weight (Card / Package) : 713 g / 1065 g
- DirectX Version Support : 12 Ultimate
- OpenGL Version Support : 4.6
- Maximum Displays : 4
- G-SYNC® technology : Y
- Digital Maximum Resolution : 7680 x 4320
