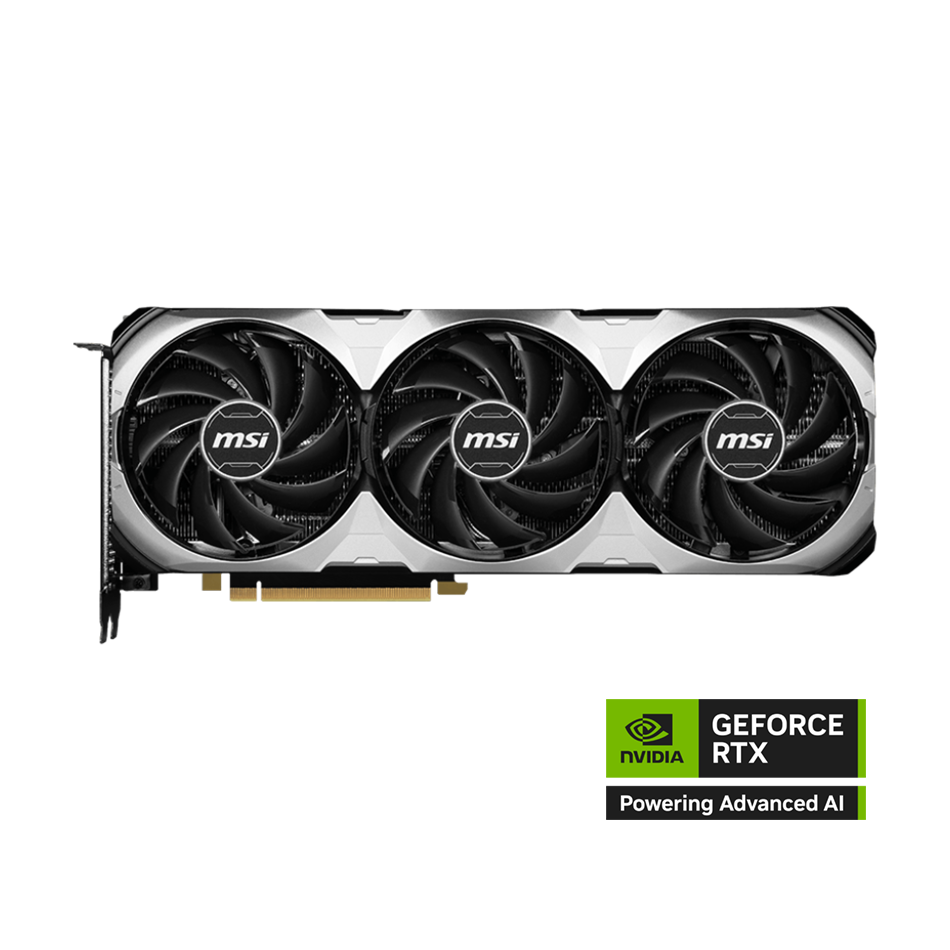

MSI NVIDIA GEFORCE 4070 TI SUPER VENTUS 3X OC 16GB Graphic Card - Black
Brand
Acer
Boost Clock / Memory Speed
- 2640 MHz / 21 Gbps
- 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Categories:
MSI NVIDIA GEFORCE 4070Ti SUPER VENTUS 3X OC 16GB GDDR6X DLSS 3 Graphics Card - Black
Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Take The Essentials
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
Revolutionary Triple-Fan Thermal
Three fans on a huge heatsink ensures a cool and quiet experience.
Core pipe
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Copper baseplate
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Airflow control
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Support Bracket
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
Specifications
- Model Name : GeForce RTX™ 4070 Ti SUPER 16G VENTUS 3X OC
- Graphics Processing Unit : NVIDIA® GeForce RTX™ 4070 Ti SUPER
- Interface : PCI Express® Gen 4
- Core Clocks : Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz
- CUDA® CORES : 8448 Units
- Memory Speed : 21 Gbps
- Memory : 16GB GDDR6X
- Memory Bus : 256-bit
- Output : DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- HDCP Support : Y
- Power consumption : 285 W
- Power connectors : 16-pin x 1
- Recommended PSU : 700 W
- Card Dimension (mm) : 308 x 120 x 50 mm
- Weight (Card / Package) : 1107g / 1661g
- DirectX Version Support : 12 Ultimate
- OpenGL Version Support : 4.6
- Maximum Displays : 4
- G-SYNC® technology : Y
- Digital Maximum Resolution : 7680 x 4320
