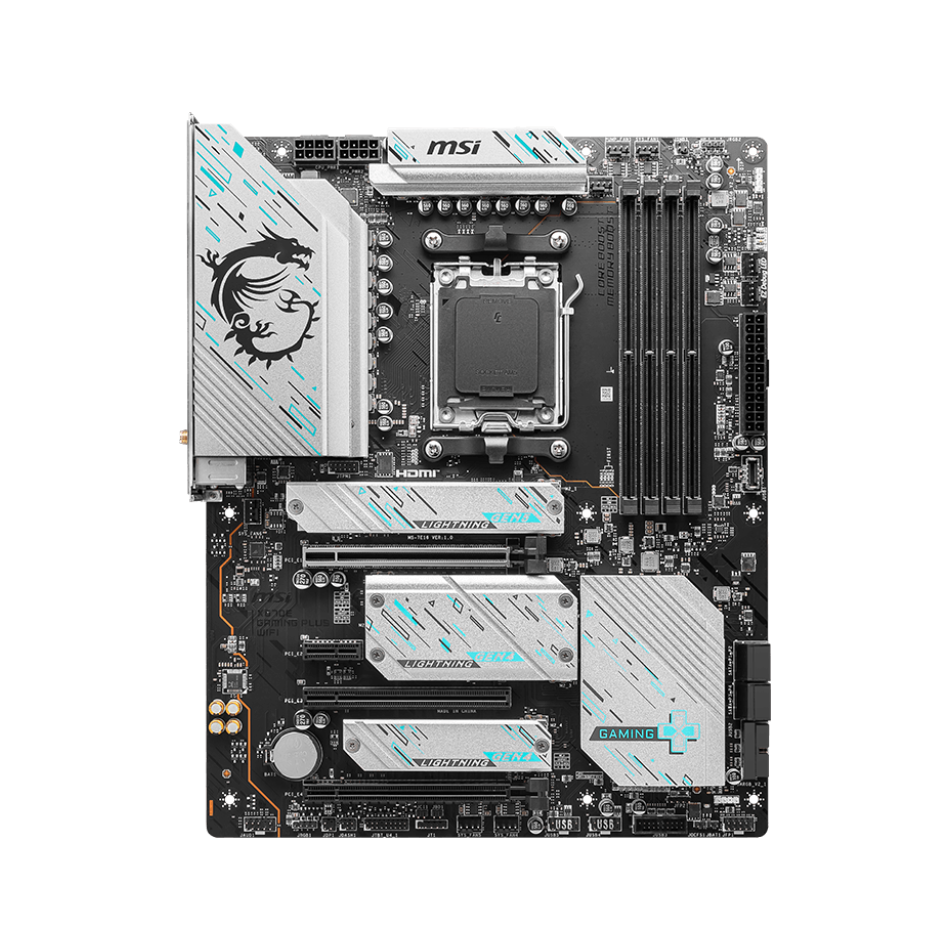

MSI X670E GAMING PLUS WIFI DDR5 Motherboard - White

MSI X670E GAMING PLUS WIFI DDR5 AM5 ATX Motherboard - White

14+2+1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI X670E GAMING PLUS WIFI motherboard is ready to sustain heavy gaming loadings.

PCB Design

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 6 PCB layers
• IT-170GR PCB material
• 2oz Thickened Copper

Diy Friendly

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

Protection

solid pin design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Anti-corrosive Stainless Steel IO Shield

Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.

The Grounding Structure of Power Phases

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

Over Current Protection

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

PERFORMANCE

Lightning Gen 5 PCI-e with Steel Armor

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Connectivity

mystic light

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Networking

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E
• Bluetooth 5.3
• 2.5G LAN

Specifications

• Chipset  : AMD X670
• CPU : Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

                        Socket AM5

• Memory  : 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

            Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/             6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

            Max. overclocking frequency:

            • 1DPC 1R Max speed up to 7800+ MHz

            • 1DPC 2R Max speed up to 6400+ MHz

            • 2DPC 1R Max speed up to 6400+ MHz

            • 2DPC 2R Max speed up to 5400+ MHz

            Supports Dual-Channel mode

            Supports non-ECC, un-buffered memory

            Supports AMD EXPO™

• Onboard Graphics : 1x HDMI™

            Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

            1x DisplayPort

            Support DP 1.4, maximum resolution of 4K 60Hz*

            *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot : 3x PCI-E x16 slot

                        Supports x16/x1/x4

            • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors)

            • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

            • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor)

                1x PCI-E x1 slot

            PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

            PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

            PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

            PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

• Storage : 4x M.2

            M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

            M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

            M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

            M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

            4x SATA 6G

            • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed

• RAID  : Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

                            Supports RAID 0, RAID 1 for M.2 NVMe storage devices

• USB : 4x USB 2.0 (Rear)

                        4x USB 2.0 (Front)

                        4x USB 5Gbps Type A (Rear)

                        4x USB 5Gbps Type A (Front)

                        3x USB 10Gbps Type A (Rear)

                        1x USB 10Gbps Type C (Front)

                        1x USB 20Gbps Type C (Rear)

• LAN : Realtek® RTL8125BG 2.5Gbps LAN
• WIRELESS LAN & BLUETOOTH  : AMD Wi-Fi 6E

            The Wireless module is pre-installed in the M.2 (Key-E) slot

            Supports MU-MIMO TX/RX

            Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

            Supports 802.11 a/ b/ g/ n/ ac/ ax

            Supports Bluetooth® 5.3**

            * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

            ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• Audio  : Realtek® ALC897 Codec

                            7.1-Channel High Definition Audio

• Internal IO  : 1x Power Connector(ATX_PWR)

                                    2x Power Connector(CPU_PWR)

                                    1x CPU Fan

                                    1x Pump Fan

                                    6x System Fan

                                    2x Front Panel (JFP)

                                    1x Chassis Intrusion (JCI)

                                    1x Front Audio (JAUD)

                                    1x TBT connector (JTBT, supports RTD3)

                                    1x Tuning Controller connector(JDASH)

                                    2x Addressable V2 RGB LED connector (JARGB_V2)

                                    2x RGB LED connector(JRGB)

                                    1x TPM pin header(Support TPM 2.0)

                                    1x USB4 card connector (JTBT_U4_1, supports RTD3)

                                    4x USB 2.0 ports

                                    4x USB 5Gbps Type A ports

                                    1x USB 10Gbps Type C ports

• LED FEATURE : 4x EZ Debug LED
• BACK PANEL PORTS

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps (Type-A)
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. USB 2.0 (Type-A)
5. 2.5G LAN
6. Flash BIOS Button
7. HDMI™
8. USB 3.2 Gen 2x2 20Gbps (Type-C)
9. Wi-Fi / Bluetooth
10. Audio Connectors

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info  : ATX
• 243.84mmx304.8mm
