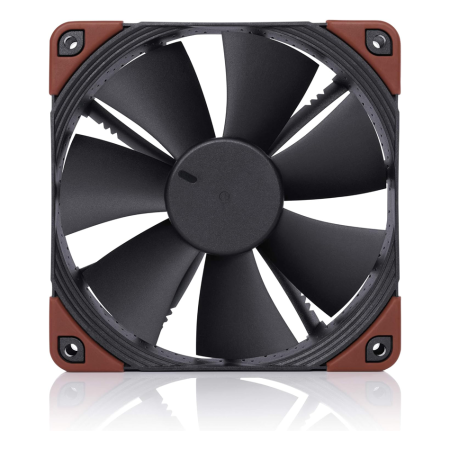

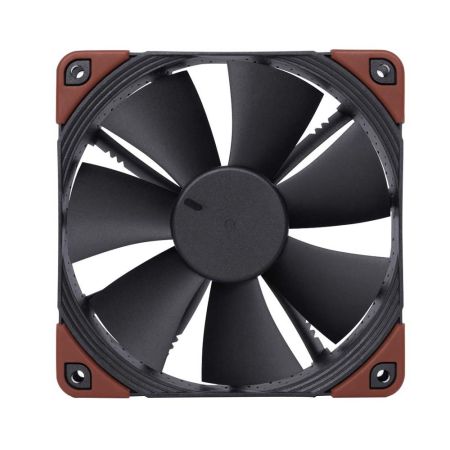

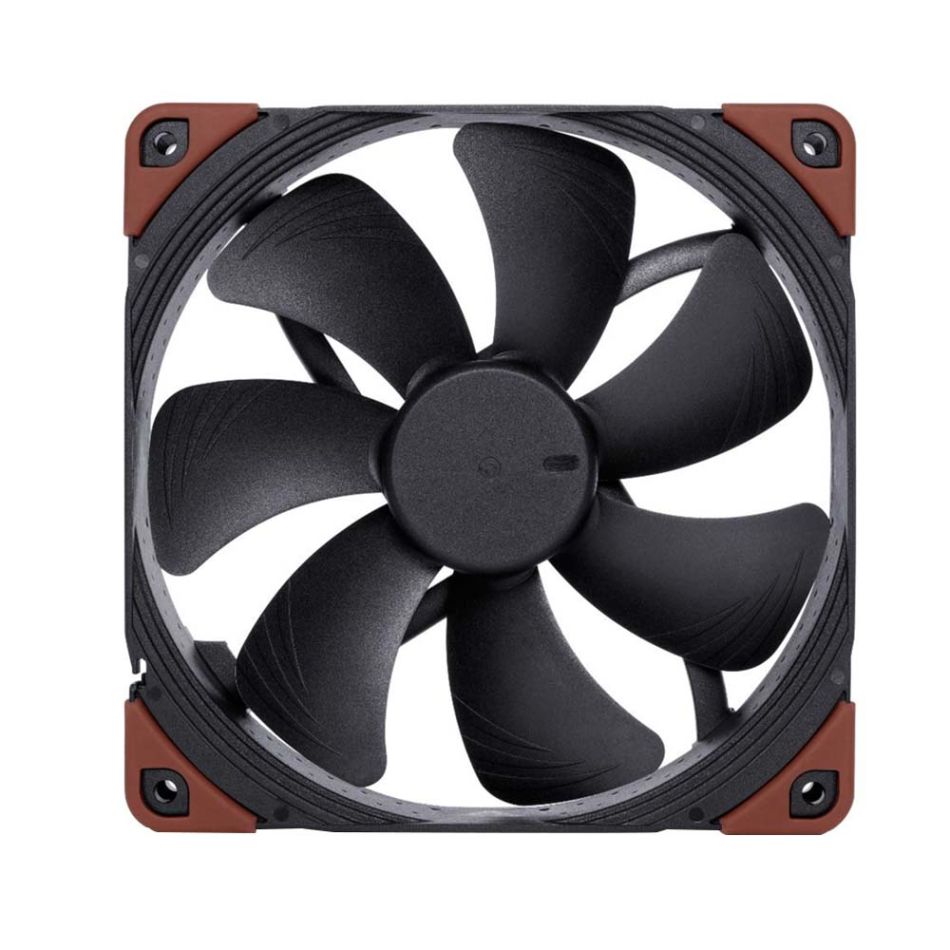

NOCTUA NF-A14 Industrial PPC-3000 PWM 140mm Fan - Black
Brand
Noctua
- Heavy duty cooling fan, 140x140x25 mm, 12V, 4-pin PWM, max. 3000 RPM, max. 41.3 dB(A), >150,000 h MTTF
- Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior cooling efficiency
- 12V 3000rpm model (41.3dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 800-3000rpm speed range
- High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
- Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
Categories:
NOCTUA NF-A14 Industrial PPC-3000 PWM 140mm Fan - Black
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Specifications
- Fan Size : 140x140x25 mm
- Mounting hole spacing : 124,5x124,5 mm
- Connector & pin-configuration : 4-pin PWM
- Cable length : 40cm
- Bearing : SSO2
- Blade geometry : A-Series with Flow Acceleration Channels
- Frame technology : AAO
- Material : Fibre-glass reinforced polyamide
- Ingress protection : IP52
- Motor type : Three-phase
- Rotational speed (+/- 10%) : 3000 RPM
- Min. rotational speed @ 20% PWM (+/-20%) : 800 RPM
- Airflow : 269,3 m³/h
- Acoustical noise : 41,3 dB(A)
- Static pressure : 6,58 mm H₂O
- Input power (typical) : 6,6 W
- Input power (max.) : 7,26 W
- Input current (typical) : 0,55 A
- Max. input current : 0,61 A
- Operating voltage : 12 V
- MTTF : > 150.000 h
- Scope of delivery : Fan
4 Fan Screws
