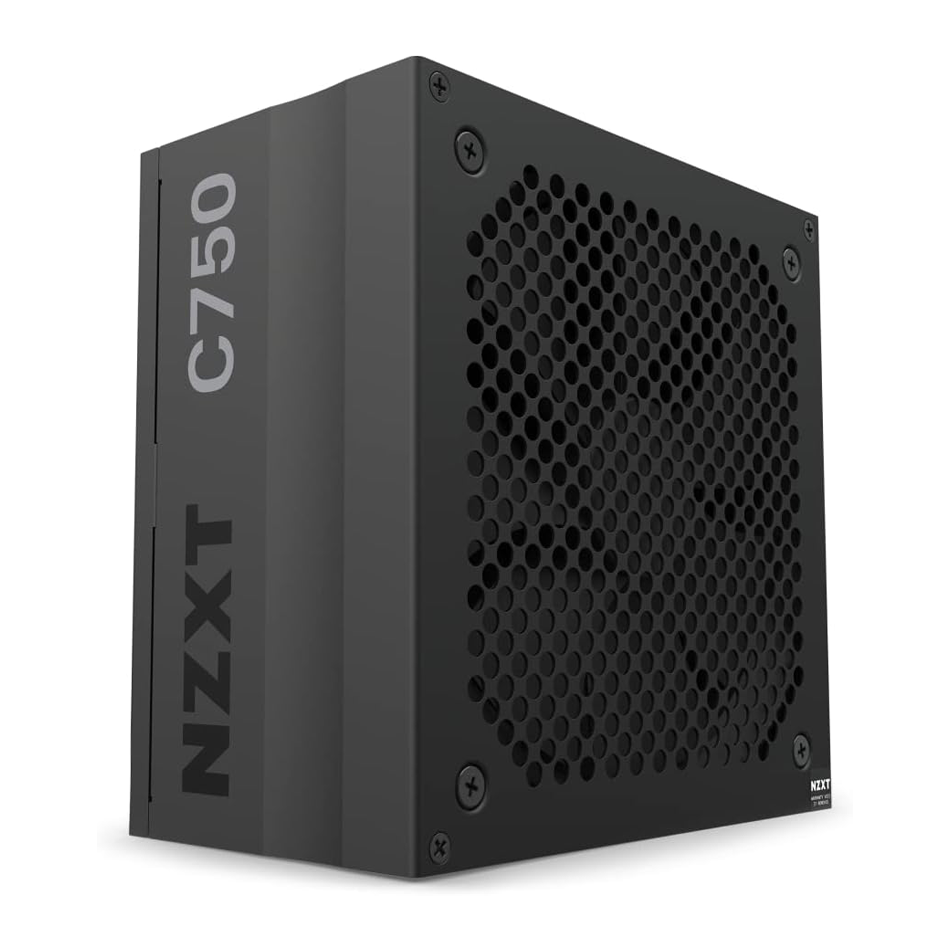

NZXT C750 750 W 80+ Gold Certified Fully Modular ATX Power Supply
Brand
Acer
- MORE EFFICIENT : At 50% load and high-line input voltage, power conversion efficiency reaches 2% higher than 80plus Gold Standard.
- FULLY MODULAR : Use only the cables you need to keep your system clean and organized. Black sleeved cable and a matte black finish seamlessly fit any PC style.
- COMPATIBLE AND HIGHLY-TESTED : C series is built and tested with strict standards for trouble-free installation. It fits most ATX case and supports the latest NVIDIA and AMD GPUs up to 30 series and AMD 6000 Series.
- MORE PRECISE AND ERROR-FREE : Micro controller (MCU) enabled protection mechanism monitors current and voltage and output wattage.
- OPTIMIZED AND SILENT : Gold PSU includes low thermal dissipation optimization with upgraded components and optimized circuit design.
Categories:
NZXT C750 750 W 80+ Gold Certified Fully Modular ATX Power Supply Unit - Black
This PSU delivers 750 watts of clean, stable power which is plenty for most gaming needs while providing headroom for future upgrades and is an ideal wattage to start overclocking.
- Modular design lets builders use only the cables they need
- The sleeved main cables resist heat damage as well as fraying
- Fits any case conforming to the ATX standard
- Supports NVIDIA GPUs up to 3090 and AMD GPUs up to RX 6800 XT
- Zero RPM Fan mode silences the fan under low-load conditions
- Dynamic 120mm fluid-dynamic bearing fan
Specifications
Output Connectors
- 24-pin ATX power:1
- 4+4-pin CPU power:2
- 6+2-pin PCIe power:6
- SATA power:6
- Peripherals:6
Cable Specs
- 24-pin ATX power:600 mm, Nylon sleeving
- 4+4-pin CPU power:700 mm, Nylon sleeving
- 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
- SATA power:500 + 150 mm
- Peripherals:500 + 150 mm
AC Input Rating
- 100 - 240Vac:10A-5A 50Hz-60Hz
DC Output Rating
- +3.3V and +5V:22A (120W)
- +12V:62.5A (750W)
- -12V:0.3A (3.6W)
- 5Vsb:3A (15W)
- Total:750W
Operation
- PF Correction:Active @0.96
- MTBF:100,000 hours
- Temperature:0 - 50°C (derating from 100 % to 80 % from 40 °C to 50 °C)
Energy Efficiency
- Rating:80 Plus Gold
- 20% loading:87% @115Vac
- 50% loading:90.5% @115Vac
- 100% loading:87.5% @115Vac
Fan Specs
- Dimensions:135 x 135 x 25 mm
- Speed:0-2300 ± 10% RPM
- Airflow:93.02 CFM (Tpy.)
- Noise:44.5 dBA max
- Bearing:Fluid Dynamic Bearing (FDB)
General
- Dimensions:150 x 150 x 86 mm
- Material(s):Steel, PCB and plastic
- Compliance Standard:ATX12V v2.52 / EPS12V v2.92
- Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA
- Model Number : PA-7G1BB
