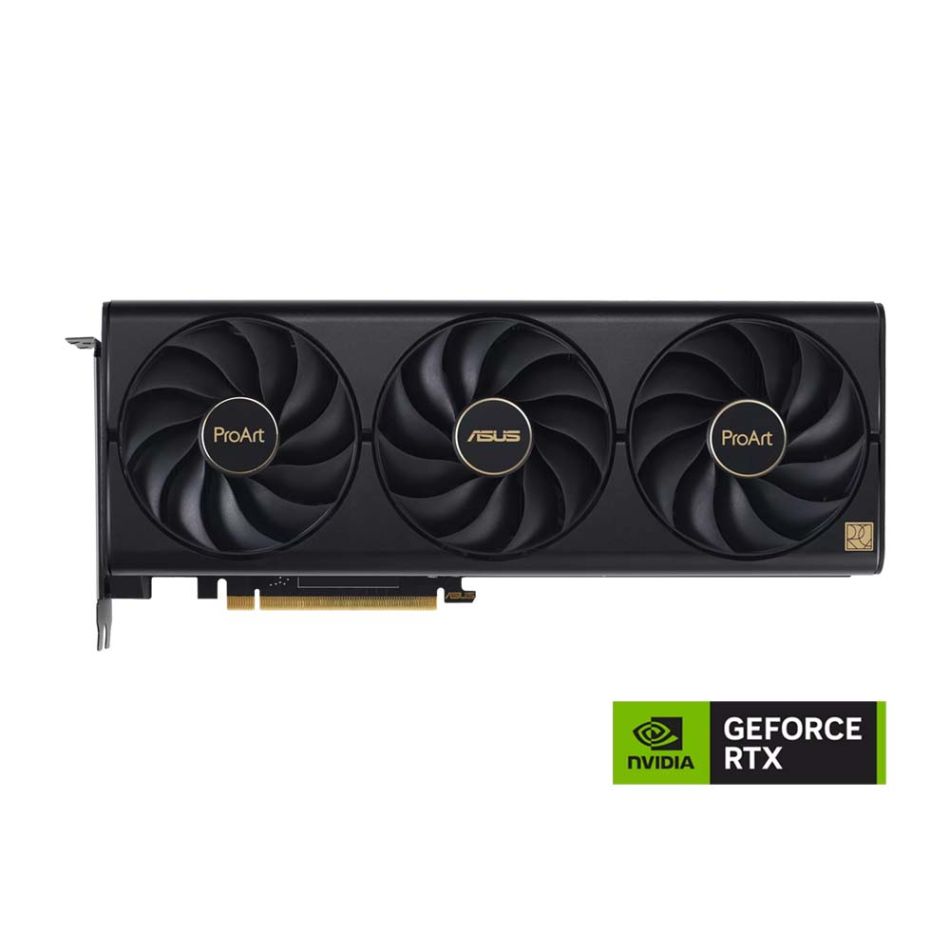

ASUS ProArt NVIDIA GEFORCE RTX 4070 Ti OC 12GB GDDR6X Graphic Card - Black

ASUS ProArt Nvidia GeForce RTX 4070Ti OC 12GB GDDR6X DLSS 3 Graphics Card

ProArt GeForce RTX™ 4070 Ti OC edition 12GB GDDR6X bring elegant and minimalist style to empower creator PC builds with full-scale GeForce RTX™ 40 Series performance.

Compact. Creative. Power.

Blur the lines between imagination, the digital world, and reality. The ProArt GeForce RTX™ 4070 Ti packs the venerable Ada Lovelace architecture and potent cooling into a 2.5-slot frame, bringing immense creative power to compact builds and full-scale workstations.

Axial-tech Upgrades

A Fresh Spin

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

Reverse Rotation and 0dB Technology

Orchestrated Chill

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

2.5-slot Design

Custom Heatsink

Heatpipes efficiently wick heat into a fin stack optimized for airflow from the Axial-tech fans. The entire array is dressed in stealthy black to match the ProArt theme.

Premium Power Delivery

1st Responder

Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

*Illustration for reference only

Compact PCB

Packs a Punch

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.

*Illustration for reference only

Compact. Creative. Power.

The ProArt GeForce RTX 4070 Ti is a finely-crafted synthesis of brawn and beauty.

Auto−Extreme Technology

Reliability Boost

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Graphics Card Holder

Pillar of Support

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

Software

GPU Tweak III

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make performance tuning even easier. Additional goodies, such as, 0dB fan technology, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card. And Profile Connect allows you to seamlessly bring it all together for every creative app and task.

QuantumCloud

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

Specifications

• Model : PROART-RTX4070TI-O12G
• Graphic Engine : NVIDIA® GeForce RTX™ 4070 Ti
• Bus Standard : PCI Express 4.0
• OpenGL : OpenGL®4.6
• Video Memory : 12GB GDDR6X
• Engine Clock : OC mode: 2760 MHz
• Default mode: 2730 MHz (Boost clock)
• CUDA Core : 7680
• Memory Speed : 21 Gbps
• Memory Interface : 192-bit
• Resolution : Digital Max Resolution 7680 x 4320
• Interface : Yes x 1 (Native HDMI 2.1a)

                                Yes x 3 (Native DisplayPort 1.4a)

                                HDCP Support Yes (2.3)

• Maximum Display Support : 4
• NVlink/ Crossfire Support : No
• Accessories : 1 x Collection Card

                                        1 x Speedsetup Manual

                                        1 x Adapter Cable (1 to 2)

                                        1 x ProArt Graphics Card Holder

                                        1 x ASUS Velcro Hook & Loop

                                        1 x Thank you Card

• Software : ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions : 300 x 120 x 50 mm

                                        11.81 x 4.72 x 1.97 inches

• Recommended PSU : 750W
• Power Connectors : 1 x 16-pin
• Slot : 2.5 Slot
