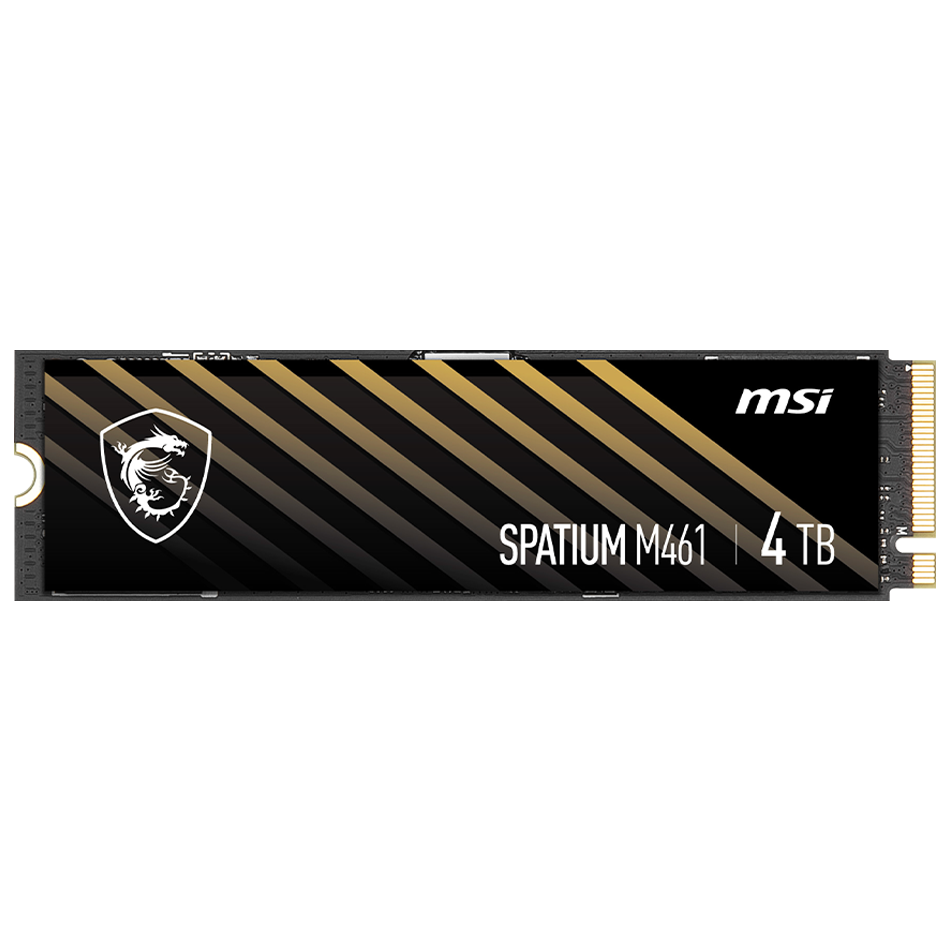

SPATIUM M461 PCIe 4.0 NVMe M.2 4TB

MSI SPATIUM M461 PCIe Gen4x4 NVMe M.2 SSD - 4TB

M461

CHARGING AHEAD WITH SPEED

From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

• Read : 5000 MB/s
• Write : 4200 MB/s

A Need for Speed!

Optimized for the PCIe Gen4 interface, SPATIUM M461 SSD reaches read/write speeds up to 5000/4200 MB/s, allowing for rapid data transfer and shortened game load times.

Small Size,

More Storage

The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 4TB.

Fulfill Unlimited Potential

Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.

TRIM

To process unnecessary data efficiently and extend the life of SSD for more games or content creations.

S.M.A.R.T

To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.

ECC

To maintain your important records or files intact and ensure a nonstop gaming experience from system failure.

E2E DATA PROTECTION

To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.

BUILT TO WIN

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

CREATE. PRODUCE. DONE.

SPATIUM SSDs get more done by opening up images, movies, documents, and heavy-duty applications at lightning speeds, keeping up your nonstop creativity and productivity.

Specifications

• Model Name  : SPATIUM M461 PCIe 4.0 NVMe M.2
• Capacity  : 4TB

• Controller  : PHISON E21T
• Flash Memory  : 3D NAND
• Form Factor  : M.2 2280
• Interface   : PCIe Gen4x4, NVMe 1.4
• Compatibility  : PCIe Gen4 / Gen3 / Gen2 / Gen1
• Dimensions  : 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
• Sequential Read up to (MB/s)  :  5000

• Sequential Write up to (MB/s)  :   4200
• Random Read 4KB up to (IOPS)  :  600,000

• Random Write 4KB up to (IOPS) :  850,000

• Maximum Operating Power (W)  : 5.1

• Idle Power PS3 (mW)  : 50
• Low Power L1.2 (mW)  : 5
• Operating Temperatures  : 0°C – 70°C
• Storage Temperatures  : -40°C – 85°C
• Terabytes Written (TBW)  :  900

• Mean Time Between Failure (MTBF)  : Up to 1,500,000 Hours
• Advanced Features  : TRIM (Performance Optimization, OS Support required)

                                                    SMART (Self-Monitoring, Analysis and Reporting Technology)

                                                    LDPC (Low Density Parity Check) ECC Algorithm

                                                    End to End Data Path Protection

                                                    APST (Autonomous Power State Transition)

                                                    Pyrite (Encryption, Data Security)
