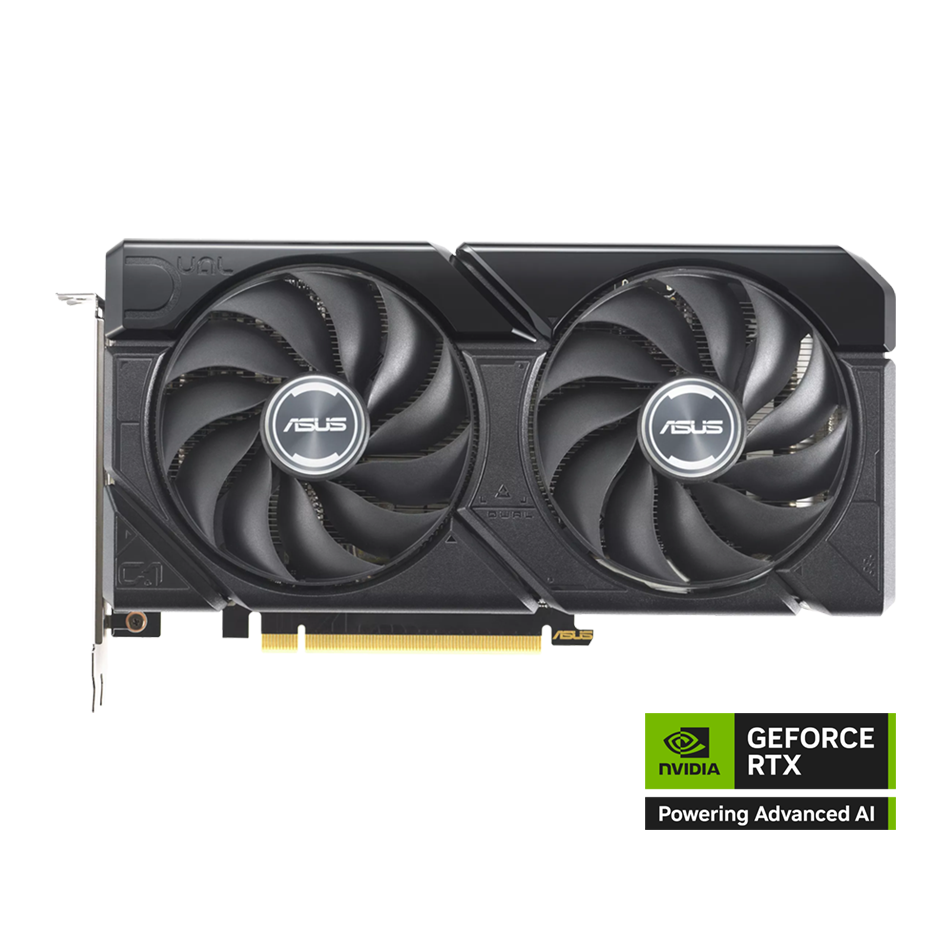

ASUS Dual GeForce RTX 4060 Ti EVO OC 8GB GDDR6 Graphic Card - Black

ASUS DUAL NVIDIA GEFORCE RTX 4060Ti EVO OC 8GB GDDR6 DLSS 3 Graphics Card - Black

ASUS Dual GeForce RTX™ 4060 Ti EVO OC Edition 8GB GDDR6 is designed for broad compatibility, with Axial-tech fan design, 0dB technology, Auto-Extreme Technology, and more.

2x Fans. 2x Fun.

ASUS Dual GeForce RTX™ 4060 Ti EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

COOLING

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology

Quiet intelligence

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 55 degrees and power consumption is low.

Dual Ball Fan Bearings

2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

ENGINEERING

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate

That's so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

Stainless Steel Bracket

Steel yourself

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

SOFTWARE

GPU TWEAK III

Monitor, tweak, and tune

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

EXPERIENCE

144-hour Validation Program

“Extensive” may be an understatement

A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

Specifications

• Model : DUAL-RTX4060TI-O8G-EVO
• Graphic Engine : NVIDIA® GeForce RTX™ 4060 Ti
• AI Performance : 357
• Bus Standard : PCI Express 4.0
• OpenGL : OpenGL®4.6
• Video Memory : 8GB GDDR6
• Engine Clock : OC mode : 2595 MHz
• Default mode : 2565 MHz (Boost)
• CUDA Core : 4352
• Memory Speed : 18 Gbps
• Memory Interface : 128-bit
• Resolution : Digital Max Resolution 7680 x 4320
• Interface : Yes x 1 (Native HDMI 2.1a)

                        Yes x 3 (Native DisplayPort 1.4a)

                        HDCP Support Yes (2.3)

• Maximum Display Support : 4
• NVlink/ Crossfire Support : No
• Accessories : 1 x Thank you card

                                1 x Speedsetup Manual

• Software : ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions : 227.2 x 123.24 x 49.6 mm
• Recommended PSU :650W
• Power Connectors : 1 x 8-pin
• Slot : 2.5 Slot
