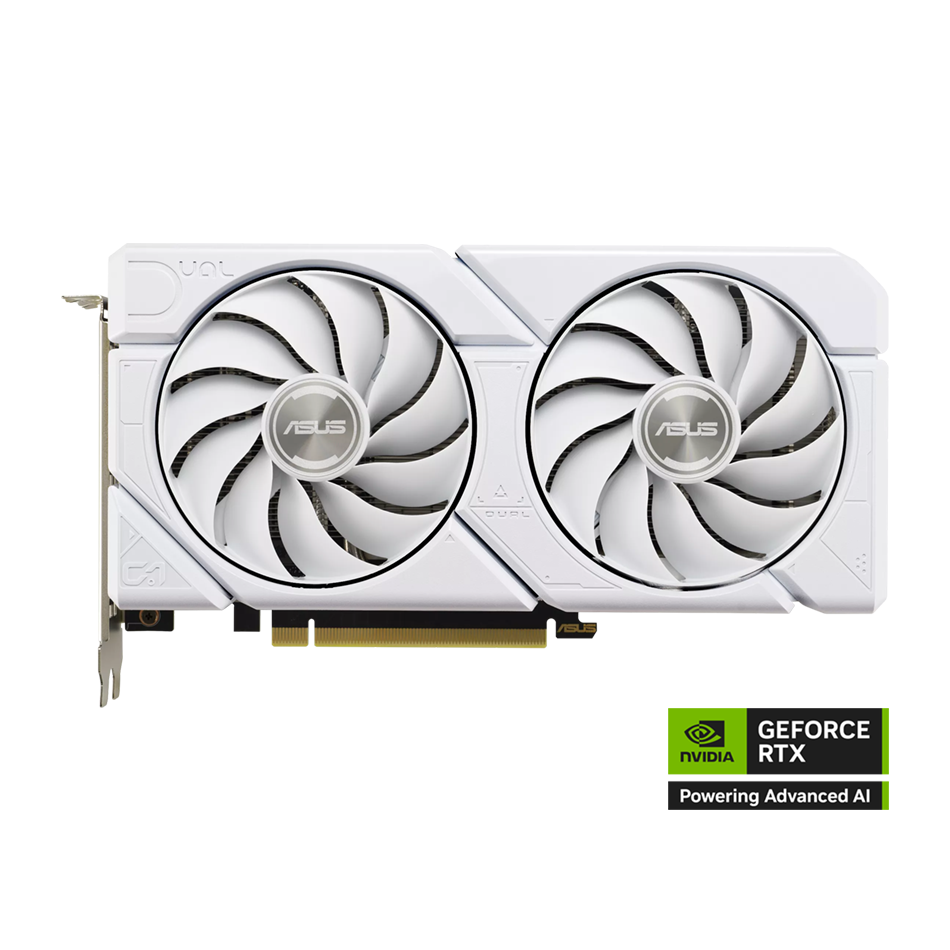

ASUS DUAL GeForce RTX 4070 SUPER EVO OC 12GB GDDR6X Graphic Card - White

ASUS DUAL NVIDIA GEFORCE RTX 4070 SUPER EVO OC 12GB GDDR6X DLSS3 Graphics Card - White

The SFF-ready ASUS Dual GeForce RTX™ 4070 SUPER EVO White OC Edition 12GB GDDR6X with two powerful Axial-tech fans and a 2.5-slot design for broad compatibility

2x Fans. 2x Fun.

ASUS Dual GeForce RTX™ 4070 SUPER EVO White Edition fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

COOLING

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology

Quiet intelligence

To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

Dual Ball Fan Bearings

2x longer lifespan

Different bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

2.5-slot Design

Sink your heat into this

A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.

Dual BIOS

Choose wisely

Do you prioritize low core temps or low noise levels? Performance mode will let the fans spin up to keep the card running cool all the time. Quiet mode keeps the same power target and top-end settings, but offers a less aggressive fan curve for quieter operation at medium temps. For even more customization and control, check out our GPU Tweak III software.

ENGINEERING

Auto-Extreme Technology

Precision automated manufacturing

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate

That's so metal!

The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage. The rear features a wide vent that allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

Stainless Steel Bracket

Steel yourself

The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that's harder and more resistant to corrosion.

SOFTWARE

GPU Tweak III

Monitor, tweak, and tune

ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud

Profit from GPU power

QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card's computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn't collect any personal data, so your privacy stays protected. Get started right away with just one click!

EXPERIENCE

144-hour Validation Program

"Extensive" may be an understatement

A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.

Specifications

• Model : DUAL-RTX4070S-O12G-EVO-WHITE
• Graphic Engine : NVIDIA® GeForce RTX™ 4070 SUPER
• AI Performance : 578
• Bus Standard : PCI Express 4.0
• OpenGL : OpenGL®4.6
• Video Memory : 12GB GDDR6X
• Engine Clock : OC mode : 2550 MHz (Boost Clock)

                                        Default mode : 2520 MHz (Boost Clock)

• CUDA Core : 7168
• Memory Speed : 21 Gbps
• Memory Interface : 192-bit
• Resolution : Digital Max Resolution 7680 x 4320
• Interface : Yes x 1 (Native HDMI 2.1a)

                                Yes x 3 (Native DisplayPort 1.4a)

                                HDCP Support Yes (2.3)

• Maximum Display Support : 4
• NVlink/ Crossfire Support : No
• Accessories : 1 x Speedsetup Manual

                                        1 x Thank you card

                                        1 x Adapter Cable (1 to 2)

• Software : ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions : 227.2 x 123.24 x 49.6 mm

                                        8.94 x 4.85 x 1.95 inch

• Recommended PSU : 750W
• Power Connectors : 1 x 16-pin
• Slot : 2.5 Slot
• SFF Ready : Compatible

Note

• * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
• * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
