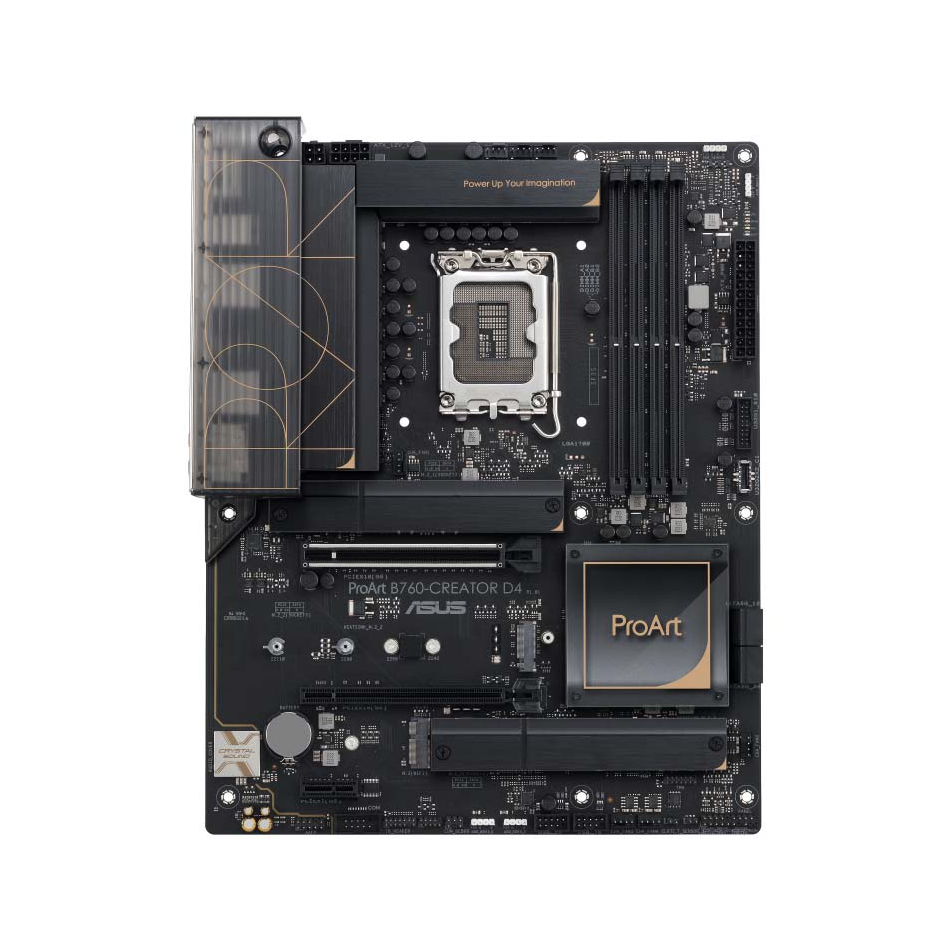

ASUS PROART B760 CREATOR DDR4 ATX Motherboard - Black
Brand
Acer![Acer Acer](https://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- ATX Form Factor
- Intel B760 Chipset
- LGA 1700 Socket
- 4x Dual-Channel DDR4 Slots
- 4 x SATA III, 3 x M.2 Slots
- 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4)
- 1 x PCIe 3.0 x1 Slot
- 2.5 Gb & 1 Gb Ethernet Ports
- Windows 10 & 11 (64-Bit) Support
Categories:
ASUS PROART B760 CREATOR DDR4 ATX Motherboard - Black
B760-CREATOR D4
ProArt B760-Creator D4 is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector and a ThunderboltTM 4 header.
Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
Networking
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.
M.2 Slot (Key E)
The ProArt B760-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.
*WiFi/BT modules are sold separately.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator D4 features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
DDR4 Memory
ProArt B760-Creator D4 supports up to 128 GB of DDR4 memory across four slots. ASUS-exclusive OptiMem II technology improves trace layout to significantly reduce signal distance and crosstalk, enhancing memory stability and compatibility while giving memory kits higher clock speed margins.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.
Everything you need to optimize workflows
Two-Way AI Noise Cancelation
As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancellation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.​
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Customize your personal settings
ProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.
Specifications
Model
- ProArt B760-CREATOR D4
CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors
- Supports Intel® 10 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
- Intel® B760 Chipset
Memory
- 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information
Graphics
- 1 x HDMI® port**
- 1 x DisplayPort port***
- * Graphics specifications may vary between CPU types.
- ** Support 4K@60Hz as specified in HDMI 2.1.
- *** Support max. 8K@60Hz as specified in DisplayPort 1.4.
Expansion Slots
- Intel® 13th & 12th Gen Processors
- 1 x PCIe 5.0/4.0/3.0 x16 slot
- Intel® B760 Chipset*
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x1 slot**
- ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
Storage
- Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280/22110
- - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
- Intel® B760 Chipset**
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports***
- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- *** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.
Ethernet
- 1 x Realtek 2.5Gb Ethernet
- 1 x Intel® 1Gb Ethernet
- ASUS LANGuard
Wireless & Bluetooth
- M.2 slot only (Key E, PCIe)*
- *Wi-Fi module is sold separately.
USB
- Rear USB (Total 9 ports)
- 1 x USB 3.2 Gen 2 Type-C® port
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- Audio Features
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Audio cover
- - Unique de-pop circuit
Back Panel I/O Ports
1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x Realtek 2.5Gb Ethernet port
- 1 x Intel® 1Gb Ethernet port
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x SPI TPM header (14-1pin)
- 1 x 20-5 pin System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with DrMOS)
- - Enhanced DRAM Overcurrent Protection
- - ESD Guards
- - LANGuard
- - Overvoltage Protection
- - SafeSlot
- - Stainless-Steel Back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-Connector
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - Flexible M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - ProCool
- - Pre-mounted I/O shield
- AURA Sync
- - AURA RGB header
- - Addressable Gen 2 headers
Software Features
- ASUS Exclusive Software
- Armoury Crate
- - AURA Creator
- - AURA Sync
- - Fan Xpert 4
- - Power Saving
- - Two-Way AI Noise Cancelation
- AI Suite 3
- - Performance And Power Saving Utility
- DIGI+ VRM
- Turbo app
- ASUS CPU-Z
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- ProArt Creator Hub
- CreationFirst
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUS EZ Flash 3
- - ASUS UEFI BIOS EZ Mode
BIOS
- 128 Mb
Manageability
- WOL by PME, PXE
Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 2 x M.2 Rubber packages
- 1 x Screw package for M.2 Key E
- 1 x ProArt ruler
- 1 x Q-connector
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User guide
Operating System
- Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
