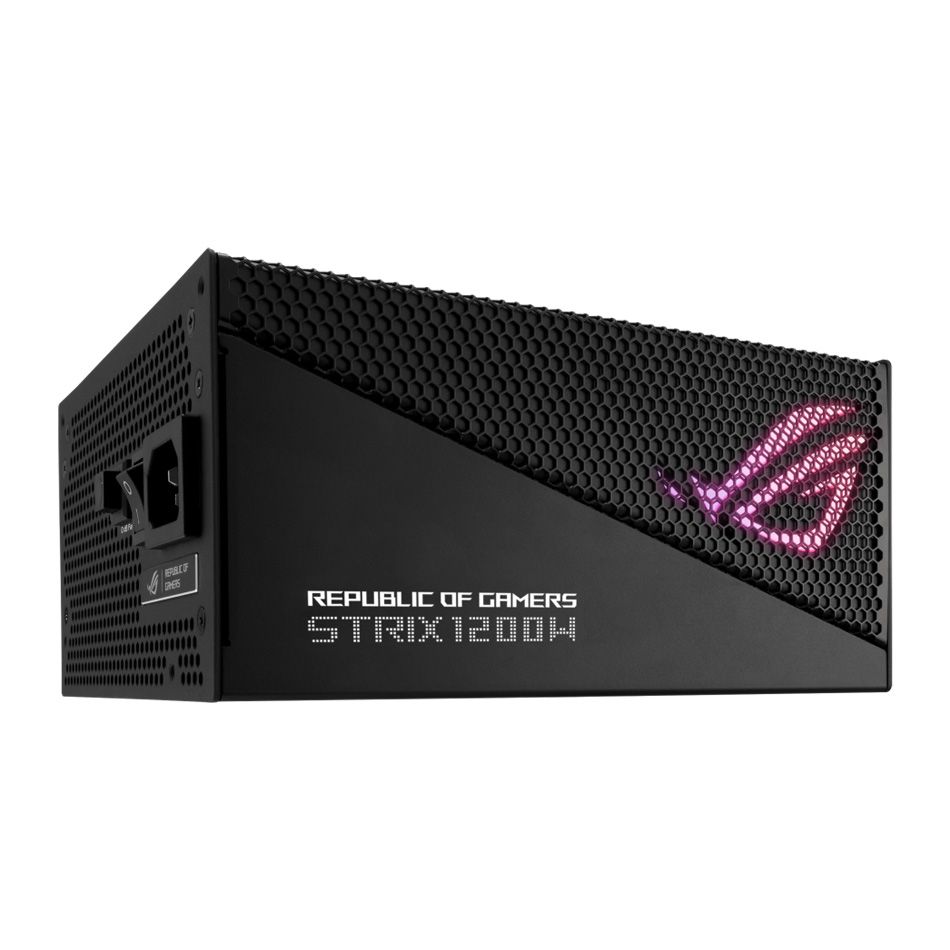

ASUS ROG STRIX 1200W 80 Plus Gold Aura Edition PCIe Gen5 Power Supply - Black
Brand
Acer![Acer Acer](https://q8quadra.com/media/magiccart/shopbrand/brand/a/c/acer.png)
- Features an Aluminum Case that is coupled to the internal power transformer, helping to reduce temperatures and noise levels. heatsink to reduce temperatures and noise levels.
- Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB Technology lets you enjoy light gaming in relative silence.
- ATX 3.0 Compatible: ROG Strix Aura Edition is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards.
- Lambda A+ Certification: Certified low noise levels, below 20 dB.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
Categories:
ASUS ROG STRIX 1200W - 80 Plus Gold AURA EDITION Fully Modular Gen 5.0 Power Supply Unit - Black
ROG Strix Gold Aura Edition
Exude Power
The ROG Strix 1200W Gold Aura Edition combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
COOLING
Aluminum Case
Built to run cool
The ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Fan Design
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Fan Bearings
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Technology
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
ENGINEERING
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.
EXPERIENCE
Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
Specifications
Intel Form Factor : ATX12V
PFC Type : Active PFC
ATX 3.0 : Yes
Dimensions : 180 x 150 x 86 mm
Efficiency : 80Plus Gold
Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 22A 22A 100A 0.3A 3A
Combined Load : 120W 120W 1200W 3.6W 15W
Total Output : 1200W
Cable Connectors : MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
- Package Contents : Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
- Weight : 3.23 kg (single PSU)
- AURA SYNC : ARGB
- Cybenetics Noise Level Certification : A+
- 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
