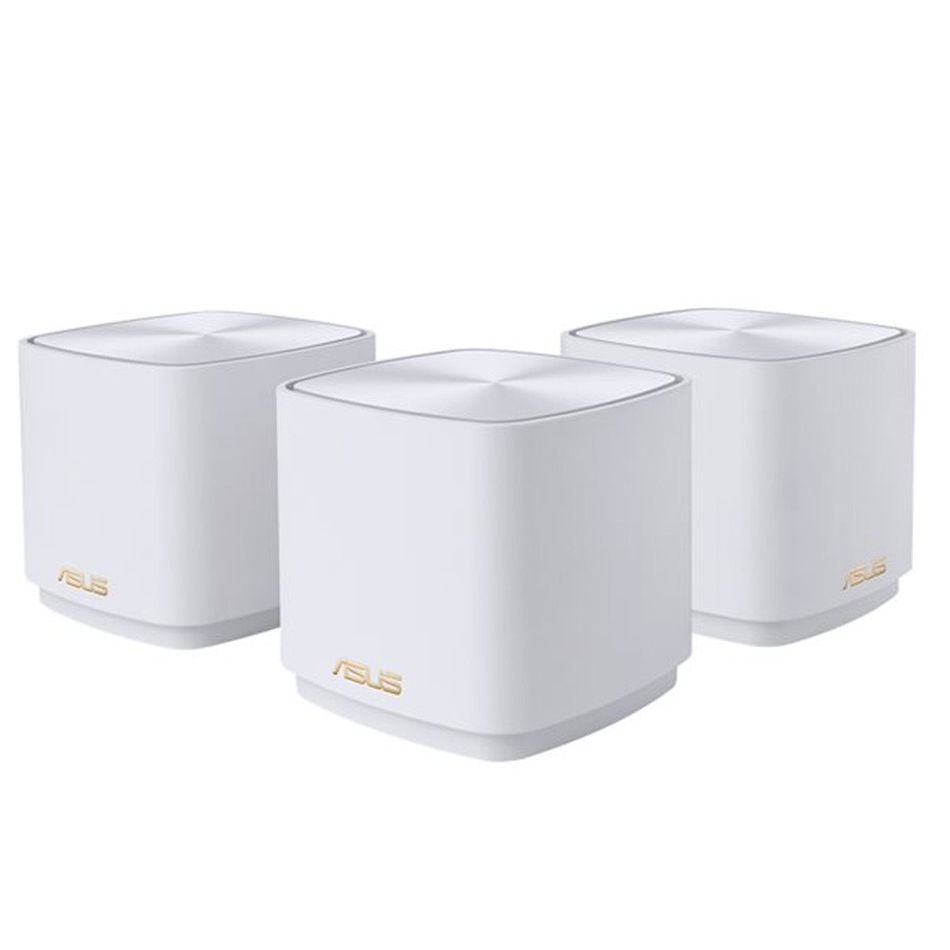

ASUS ZenWiFi AX Mini XD4 - AX1800 Whole-Home Mesh WiFi 6 System 3 Pack - White

ASUS ZenWiFi AX Mini XD4 - AX1800 Whole-Home Mesh WiFi 6 System - 3 Pack White

ASUS ZenWiFi

WiFi Coverage Everywhere. Always Secure

AX1800 Whole-Home Mesh WiFi 6 System  Coverage up to 4,800 Sq. ft. / 5+ rooms, easy setup, life-time free network security & parental controls

Whole-home Coverage

The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections  inside or outside your home!

WiFi 6

True 8K Streaming

• ZenWiFi AX Mini puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it's up to 1.4X faster* than WiFi 5 routers **.
• * Compatible WiFi 6 device required.
• ** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.

Flexible Network Naming

Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Easier-than-ever Setup

What makes ZenWiFi AX Mini setup so easy?

• One-time setup, with auto synchronization for all the hubs in each package
• At a glance: You must start setup using the router, which is the unit with a removable clear plastic strip wrapped around it.

Make the Internet a Safer Place for Everyone

AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ZenWiFi AX Mini works perfectly with smart-home services  including Alexa skills and IFTTT  and is available in charcoal or white to suit your dcor.

AiMesh Technology

Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications

Model Name

• XD4 (W-3-PK)
• XD4 (B-2-PK)
• XD4 (W-2-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

• Internal dual-band antenna x 2

Transmit/Receive

• MIMO technology
• 2.4GHz 2x2
• 5GHz 2x2

Memory

• 256 MB Flash, 256 MB RAM

Boosts speed

• MIMO technology

Operating Frequency

• 2.4 G Hz / 5 GHz

Ports

• RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Button

• WPS Button, Reset Button

LED Indicator

• Power x 1

Power Supply

• "AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5 A current"

Package content

• Router (XD4R)
• Node (XD4N)
• RJ45 Ethernet cable
• Power adapter
• Quick start guide
• Warranty Card

Product Weight (g)

• 295 g

Remark

• 3-pack router*1+node*2
• 2-pack router*1+node*1
• 1-pack router*1
• Content may vary in different regions and packages.

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Alexa

• Support Alexa skill

IFTTT

• Support IFTTT

AiProtection

• AiProtection Classic
• Malicious site blocking
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Bandwidth Monitor
• Bandwidth limiter
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Wireless

• IPv6
• Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 9
• Guest Network Connection time limit
• WPS

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Android tethering
• Port forwarding
• Port triggering
• DMZ
• DDNS
• NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Let's Encrypt

LAN

• DHCP Server
• IGMP snooping
• IPTV
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP

Administration

• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
