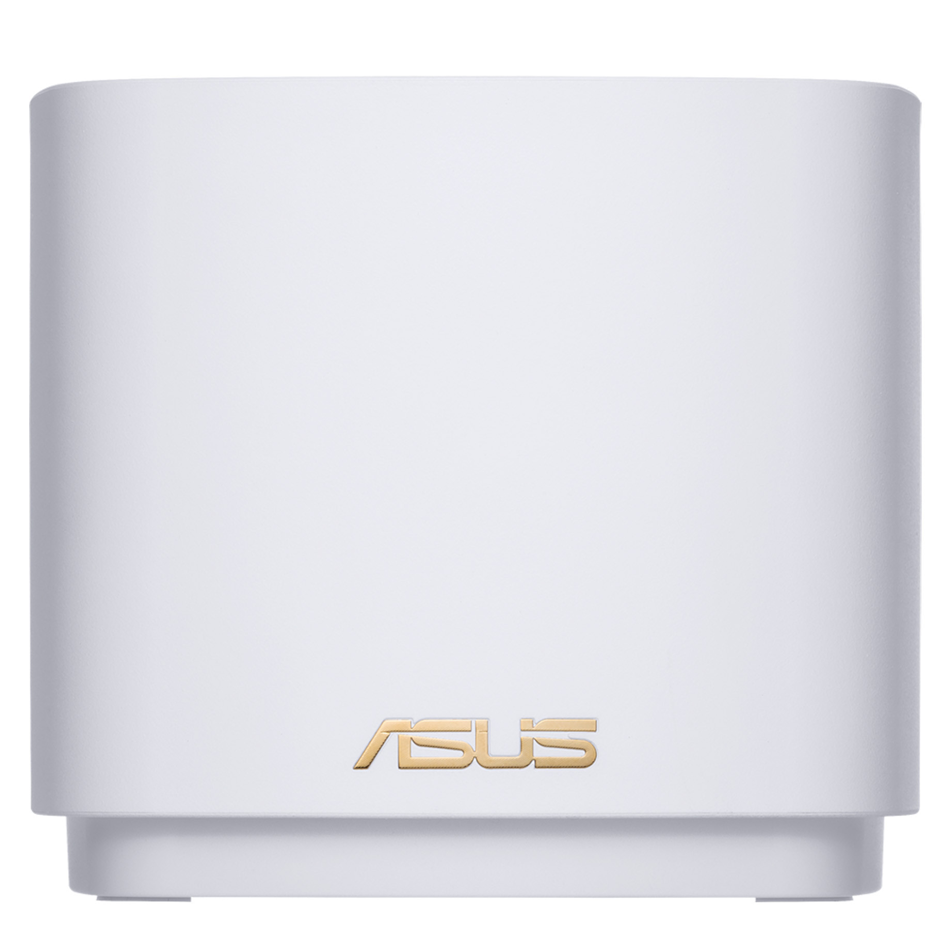

ASUS ZenWiFi XD5 (W-1-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 1 pack system - White

ASUS ZenWiFi XD5 (W-1-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 1 pack system - White

Whole-home Coverage

The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

WiFi 6

True 8K Streaming

ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.

* Compatible WiFi 6 device required.

** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation.

Explore ultimate WiFi 6 performance

The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.

*160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries, due to regulatory restrictions. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.

Flexible Network Naming

Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!

Make the Internet a Safer Place for Everyone

AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Smart Looks for Smart Homes

ZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.

Space-saving and Great Design

Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!

AiMesh Technology

Easy setup. Flexible management.

Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.

Specifications:-

Model

• ASUS ZenWiFi XD5

Model Name

• XD5 (W-1-PK)

Network Standard

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Product Segment

• AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

• Yes

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

• Internal dual-band antenna x 2

Transmit/Receive

• 2.4GHz 2x2
• 5GHz 2x2

Processor

• 1.7 GHz quad-core processor

Memory

• 128 MB Flash
• 512 MB RAM

Boosts speed

• MIMO technology

Operating Frequency

• 2.4 G Hz / 5 GHz

Ports

• RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Button

• WPS Button, Reset Button

LED Indicator

• Power x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5 A current

Package content

• ZenWiFi XD5
• RJ45 Ethernet cable
• Power adapter
• Quick start guide
• Screw Pack

Product Weight (g)

• 307 g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node
• Router APP
• ASUS Router APP

Alexa

• Support Alexa skill

AiProtection

• AiProtection Classic
• Malicious site blocking
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Bandwidth Monitor
• Bandwidth limiter
• Traditional QoS
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor

Wireless

• IPv6
• Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
• UTF-8 SSID
• Guest Network
• Guest Network Connection time limit
• WPS

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Android tethering
• Port forwarding
• Port triggering
• DMZ
• DDNS
• NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Let's Encrypt

LAN

• DHCP Server
• IGMP snooping
• IPTV
• Manually assign IP address

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP

Administration

• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
