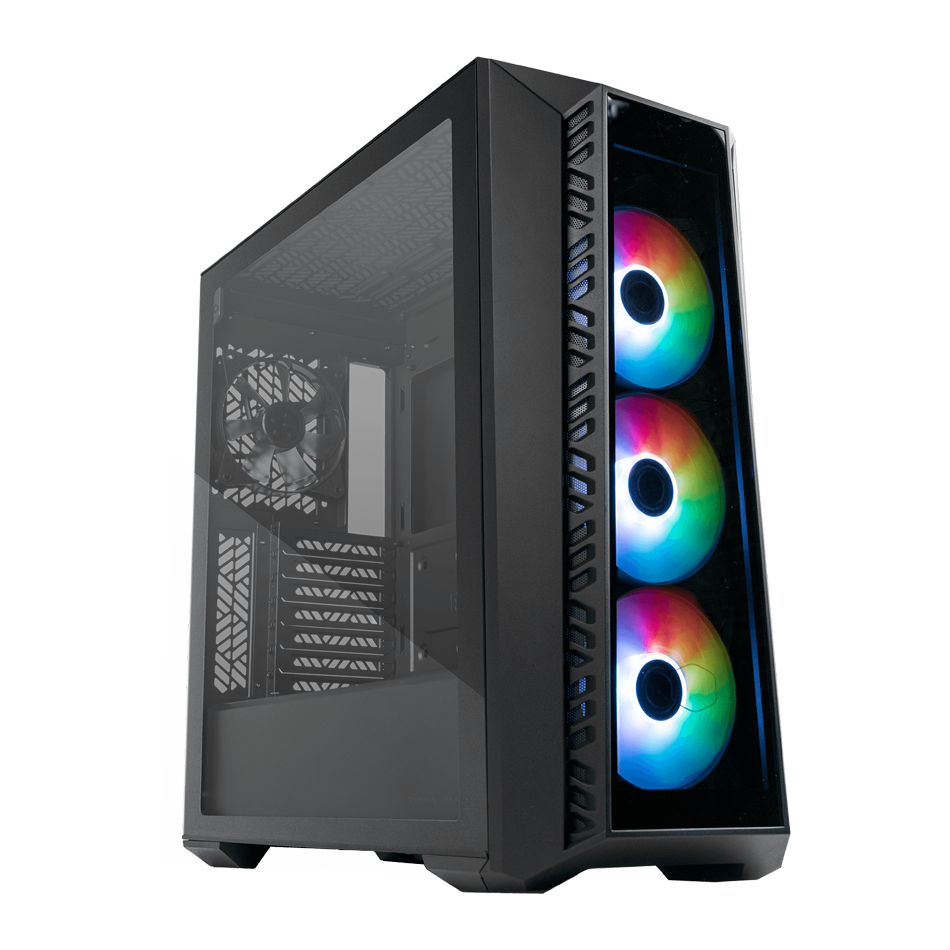

Cooler Master MasterBox 520 Mid Tower Gaming Case - Black

COOLER MASTER MasterBox 520 Mid Tower ATX Gaming Case - Black

DARKMIRROR FRONT PANEL

Shade light through a transparent, tinted front panel.

EXCELLENT THERMAL PERFORMANCE

Optimized airflow due to the large intakes on each side of the front panel.

Additional ventilation on the top panel adds thermal support.

EDGE TO EDGE TRANSPARENT SIDE PANEL

Showcase your build through the transparent side panel.

FAN AND RADIATOR SUPPORT

Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.

Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.

Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.

* 2 x 140mm fans in front can only be mounted behind the front plate

EXPANDING THE POSSIBILITIES

The spacious interior fits all standard motherboards for your gaming needs.

MAIN COMPONENTS CLEARANCE

The MasterBox MB520 case supports CPU coolers up to a height of 165mm, graphic cards up to a length of 410mm and power supplies up to a length of 180mm.

Specifications:-

• Color : Black
• Materials : Steel, Plastic
• Dimensions (L x W x H) : 496 x 217 x 468 mm
• Motherboard Support : ATX, Micro ATX, Mini ITX
• Expansion Slots : 7
• 5.25" Drive Bays : N/A
• 2.5" / 3.5" Drive Bays (Combo) : 2 (Max.2)
• 2.5" Drive Bays : 4 (Max.6)
• I/O Panel : 2x USB 3.0, Audio In & Out (Supports HD Audio)
• Pre-installed Fans - Rear : 1x 120mm (Black)
• Fan Support - Top : 2x 120mm, 2x 140mm
• Fan Support - Front : 3x 120mm, 2x 140mm
• Fan Support - Rear : 1x 120mm
• Radiator Support - Front : 120mm, 140mm, 240mm, 280mm, 360mm
• Radiator Support - Top : 120mm, 240mm
• Radiator Support - Rear : 120mm
• Clearance - CPU Cooler : 165mm/6.49"
• Clearance - PSU : 180mm/7.08"
• Clearance - GFX : 410mm/16.1"
• Cable Routing - Behind Motherboard Tray : 19-27mm / 0.74-1.06"
• Dust Filters : Front, Bottom, Top
• Power Supply Support : Bottom Mount, ATX
