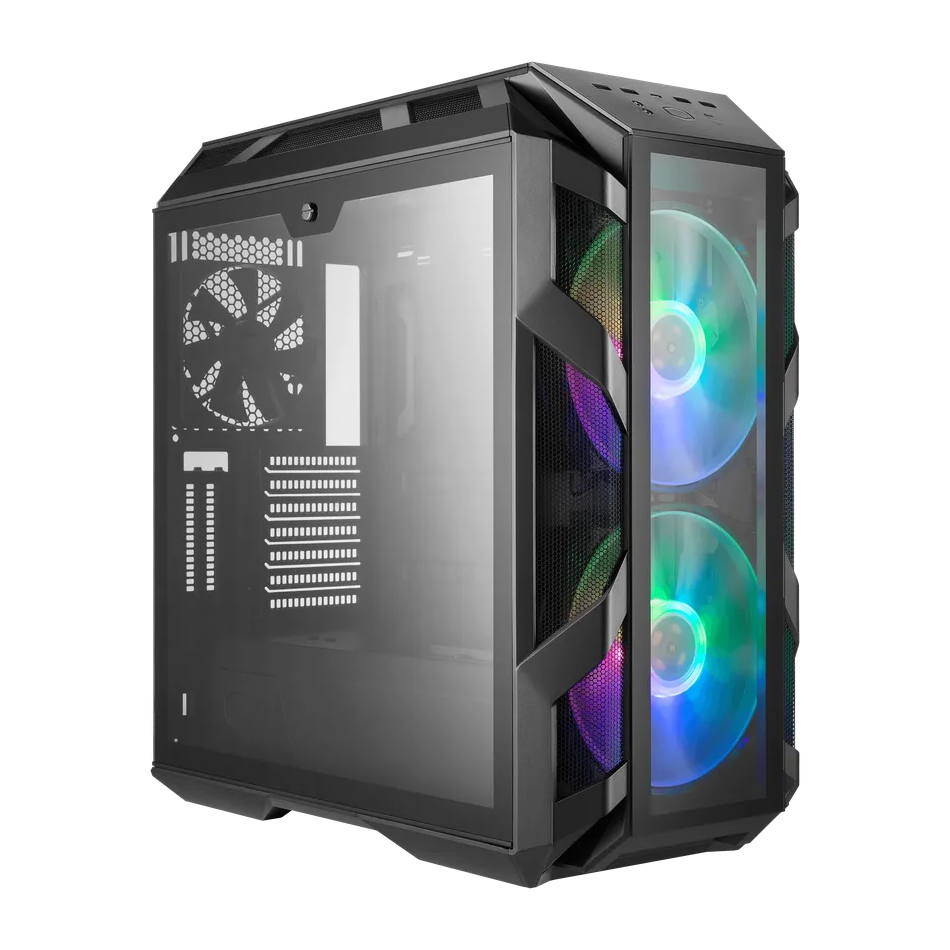

Cooler Master MasterCase H500M ARGB Mid Tower Case - Black

COOLER MASTER MasterCase H500M ATX Mid-Tower Case - Black

INTERCHANGEABLE FRONT PANELS

Choose between the mesh front panel for optimized airflow or the glass option for a balance of aesthetics and performance with the included accessory.

ADDRESSABLE RGB FANS

Move air stylishly and quietly with two 200mm Addressable RGB fans controlled by an included Addressable RGB controller.

FOUR TEMPERED GLASS PANELS

Edge-to-edge glass side panels on both sides, a glass top panel, and a glass front panel offer a clear and comprehensive system view.

GRAPHICS CARD SUPPORT ARM

Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm.

WATERCOOLING SUPPORT

The front panel is compatible with up to 360mm radiators, including support for 200mm sized radiators.

The top bracket supports up to 360mm radiators along with 200mm fans.

A dedicated water pump bracket offers mounting options directly atop the PSU shroud.

COVERS FOR CLEAN BUILDING

A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight.

• Cable Management Cover
• CPU Cut Out Cover
• PSU Cable Cover
• PSU Cut Out Cover
• PSU Shroud with SSD Mounting Support
• PSU Shroud with Water pump Bracket
• Cable Cover with SSD- and Reservoir Mounting Support
• Clearance Cover for 200mm Radiator Support
• Radiator Lid to Accommodate Thicker & Longer Radiators

RICH CONNECTIVITY

The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and four additional USB 3.0 ports. Audio-in and out with support for HD Audio.

The included addressable RGB controller manages the lighting of the system and can be connected to the reset switch.

• USB 3.0 Port
• USB 3.1 (Gen 2) Type-C Port
• Audio In & Out
• Reset Switch & Optional Addressable RGB Controller

Specifications

• Model Number : MCM-H500M-IHNN-S00
• Series : MasterCase Series
• Radiator Support - Rear : 120mm
• Power Supply Support : Bottom Mount
• Materials - Body : Steel
• Materials - Outlook : Steel Mesh
• Materials - Outlook : Glass
• Drive Bays 2.5" SSD : 6
• 5.25" Drive Bays : 0
• 2.5" / 3.5" Drive Bays (Combo) : 2
• Radiator Support - Rear : 140mm
• Size : Mid Tower
• Radiator Support - Front : 360mm
• Fan Support - Top : 2x 140/200mm
• Fan Support - Front : 2x 200mm Fan
• Fan Support - Rear : 1x 120/140mm
• Radiator Support - Top : 360mm
• Materials - Side Panel : Tempered Glass
• Radiator Support - Front : 280mm
• Radiator Support - Top : 280mm
• Pre-installed Fans - Rear : 1x 140mm fan (Speed: 1200RPM / Connector: 3Pin)
• Radiator Support - Top : 240mm
• Expansion Slots : 7+2
• Radiator Support - Front : 240mm
• Power Supply Support : ATX PS2
• Motherboard Support : E-ATX
• Clearance - PSU : 200mm
• Motherboard Support : ATX
• Radiator Support - Front : 140mm
• Radiator Support - Top : 140mm
• Pre-installed Fans - Front : 2x 200mm ARGB Fan (Speed: 800RPM / Connector: 3Pin + ARGB 3pin)
• Radiator Support - Front : 120mm
• Radiator Support - Top : 120mm
• Motherboard Support : Micro ATX
• EAN Code : 4719512072165
• UPC Code : 884102044663
• Dimensions (L x W x H) : 544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch
• Motherboard Support : Mini ITX
• Fan Support - Top : 3x 120mm
• Fan Support - Front : 3x 120/140mm
• I/O Panel : 4x USB 3.0 Type-A
• Color(s) : Iron Grey
• I/O Panel : 1x USB 3.1 Type-C
• Clearance - CPU Cooler  : 190mm
• Clearance - GFX : 412mm
• I/O Panel : Audio In & Out (Supports HD Audio)
