GIGABYTE NVIDIA GEFORCE RTX 4060 GAMING OC 8GB DLSS 3 Graphic Card - Black
Brand
Gigabyte- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- CORE CLOCK : 2550 MHz (Reference card: 2460 MHz)
Categories:
GIGABYTE NVIDIA GEFORCE RTX 4060 GAMING 8GB GDDR6 OC DLSS 3 Graphics Card - Black
WINDFORCE
COOLING SYSTEM

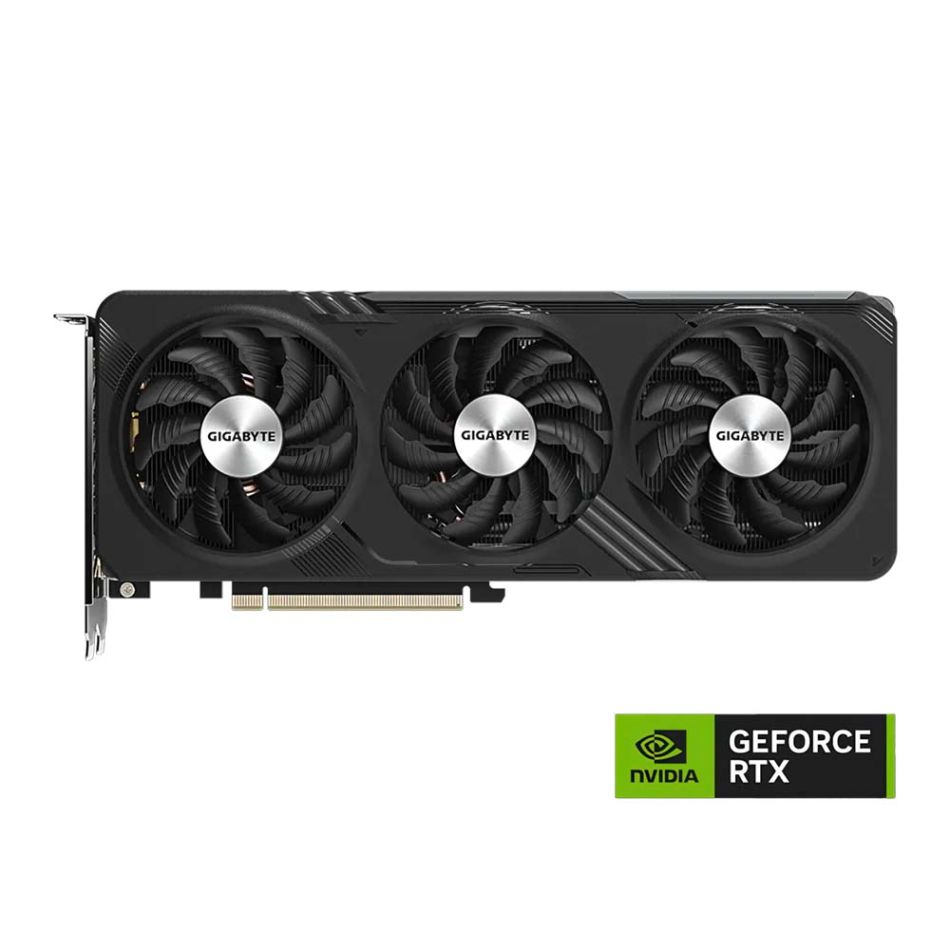

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
BUILT STRONG
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
- Graphics Processing : GeForce RTX™ 4060
- Core Clock : 2550 MHz (Reference card: 2460 MHz)
- CUDA® Cores : 3072
- Memory Clock : 17 Gbps
- Memory Size : 8 GB
- Memory Type : GDDR6
- Memory Bus : 128 bit
- Card Bus : PCI-E 4.0
- Digital max resolution : 7680x4320
- Multi-view : 4
- Card size : L=281 W=114 H=40 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 450W
- Power Connectors : 8 Pin*1
- Output : DisplayPort 1.4a *2
HDMI 2.1a *2
- Accessories : Quick guide
