Kingston fury 8gb DDR5 4800 MHz DIMM
Brand
Acer
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Categories:
Kingston 8GB DDR5 4800MT/s Non ECC Memory

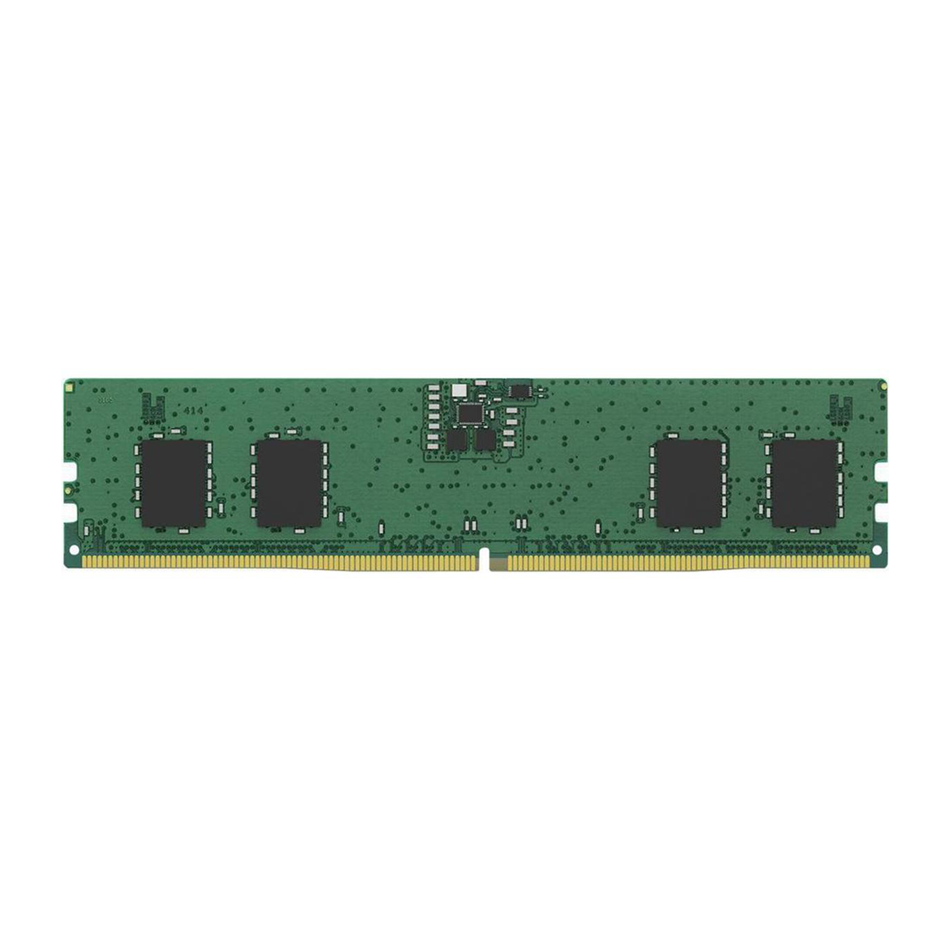

Kingston ValueRAM's KVR48U40BS6-8 is a 8GB DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Specifications
- CL(IDD) : 40 cycles
- Row Cycle Time (tRCmin) : 48ns(min.)
- Refresh to Active/Refresh : 295ns(min.)
- Command Time (tRFCmin)
- Row Active Time (tRASmin) : 32ns(min.)
- UL Rating : 94 V - 0
- Operating Temperature : 0o C to +85o C
- Storage Temperature : -55o C to +100o C
