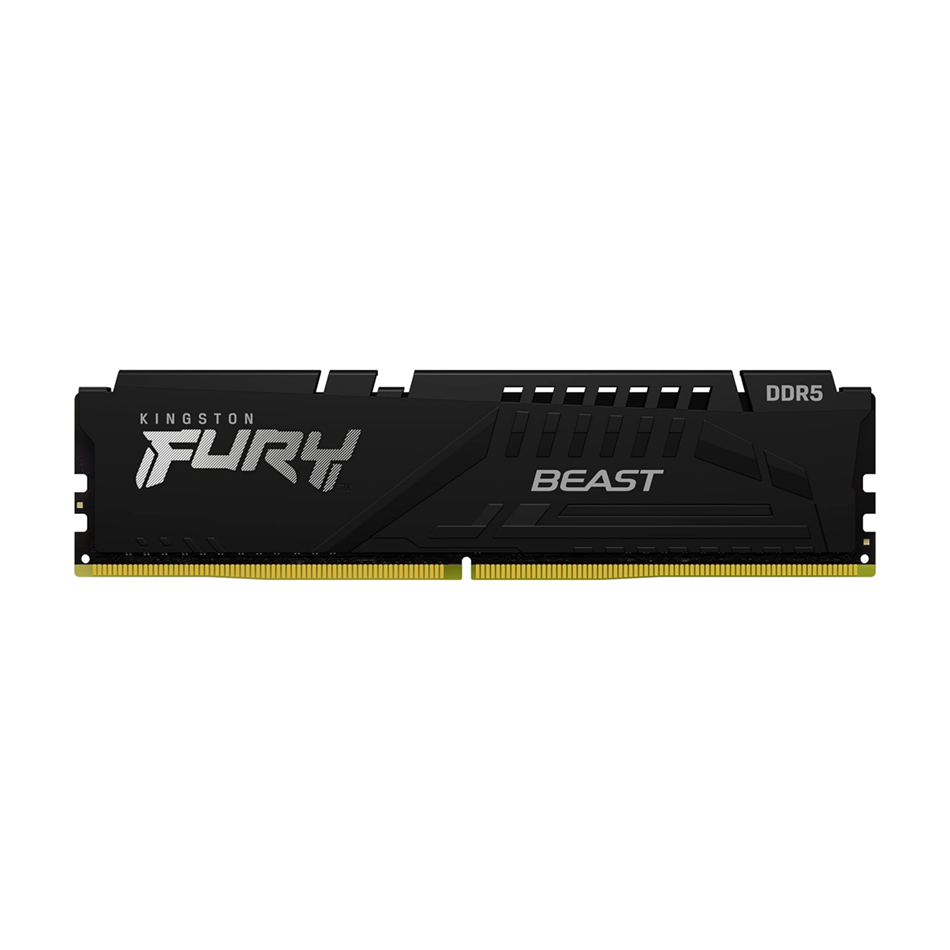

Kingston Fury Beast 16GB DDR5 5600MT/s Non ECC DIMM

Brand

AcerAcer
Availability: In stock
SKU
KF556C40BB-16
$189.75
  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • Height 1.37(34.9mm), w/heatsink


Delivery & Return

Categories:

KINGSTON FURY BEAST 16GB DDR5 5600MT/s Non ECC DIMM Memory - Black

FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on

eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications

Specifications

  • CL(IDD) : 40 cycles
  • Row Cycle Time (tRCmin) : 48ns(min.)
  • Refresh to Active/Refresh
  • Command Time (tRFCmin) : 295ns(min.)
  • Row Active Time (tRASmin) : 32ns(min.)
  • UL Rating :94 V - 0
  • Operating Temperature :  0o C to +85o C
  • Storage Temperature : -55o C to +100o C
