KINGSTON FURY RENEGADE 16GB DDR4 3200MT Memory Kit
Brand
Acer
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- On-Die termination (ODT)
- 16 internal banks; 4 groups of 4 banks each
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- Height 1.80” (45.76mm), w/heatsink
Categories:

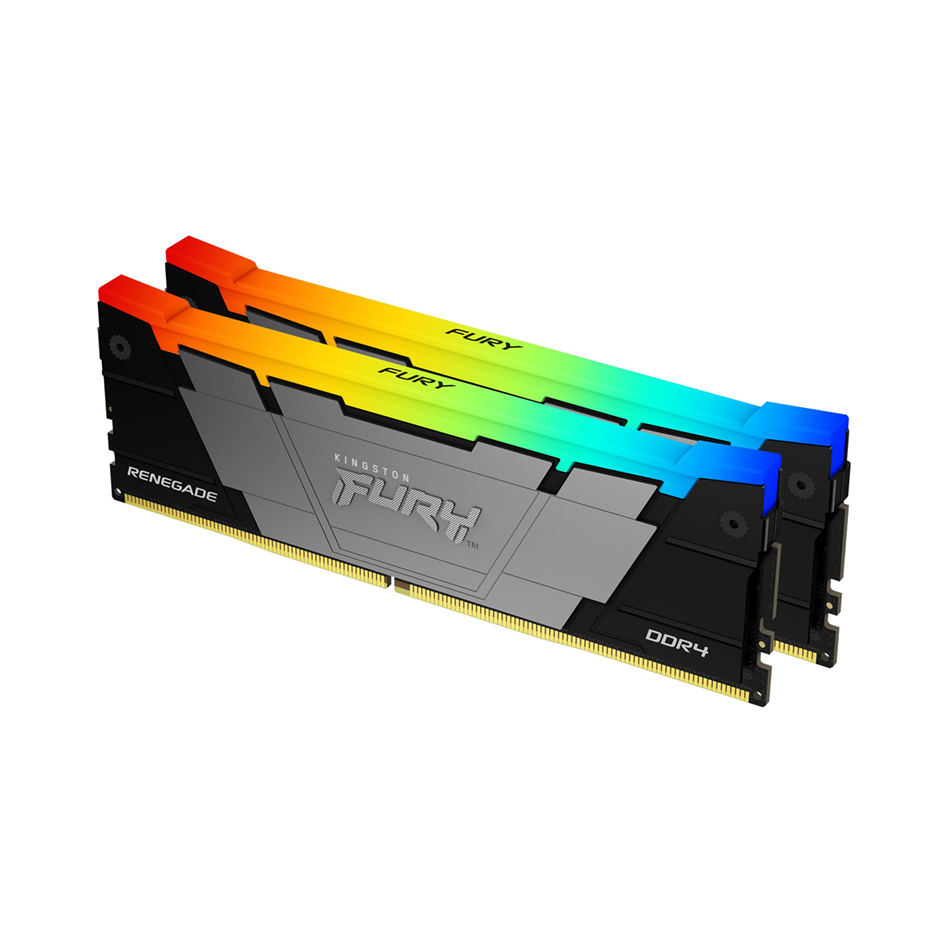

KINGSTON FURY RENEGADE RGB DDR4 - 16GB (8GB x 2) 3200MT CL16 Memory Kit
16GB (2x8GB) DDR4 3200MT/s CL16 FURY Renegade RGB Black XMP Non-ECC Unbuffered DIMM (Kit of 2) 1RX8 16-18-18 1.35V 288-pin 8Gbit.
Kingston FURY KF432C16RB2AK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8,
memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-3200 at a low latency timing
of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as
follows:
Specifications
- CL(IDD) : 16 cycles
- Row Cycle Time (tRCmin) : 45.75ns(min.)
- Refresh to Active/Refresh
Command Time (tRFCmin) : 350ns(min.)
- Row Active Time (tRASmin) : 32ns(min.)
- UL Rating : 94 V - 0
- Operating Temperature : 0o C to +70o C
- Storage Temperature : -40o C to +85o C
