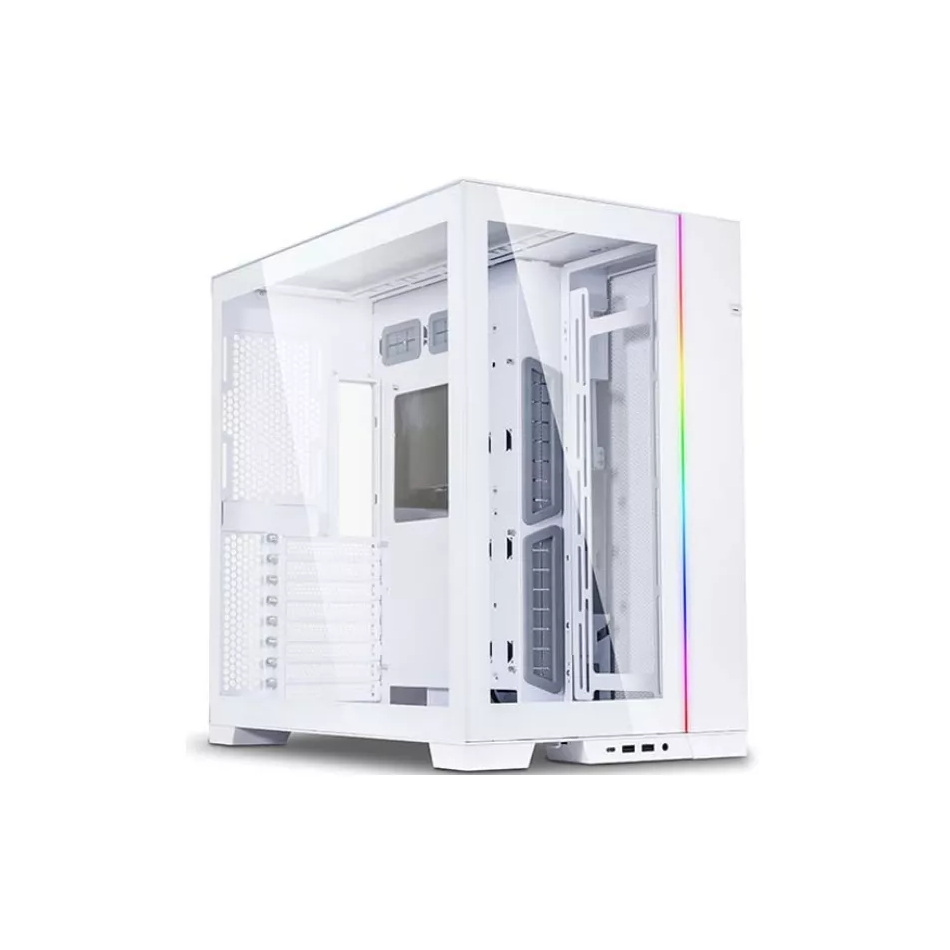

Lian LI O11D EVO Mid Tower Case - White

Lian Li O11 DYNAMIC EVO Mid Tower Case - White

Keep cool with the O11 Dynamic series all-new design and express the preferable configuration.

THE MODERN BLACK

The O11 Dynamic series classic tinted glass and brushed aluminum panel are once again combined in proper proportion.

● Brushed Aluminum

● Black Coated Mesh Panel

● Tinted Tempered Glass

VERSATILE ORIENTATION

With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.

EXQUISITE, YET FUNCTIONAL

Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

INNOVATIVE AND FLEXIBLE CONFIGURATION

Featuring a modular design, the O11D EVO offers many configuration potentials when making use of optional kits, both for air cooling and water cooling.

AIR COOLING

UNRESTRICTED AIRFLOW

The more direct the airflow, the better the cooling performance. Thanks to the upright GPU kit and the front mesh kit, which makes the addition of 3 extra fans at the front possible, the O11D EVO can provide powerful and direct airflow to the GPU and the CPU.

AIR COOLING

UPGRADED VERTICAL GPUAIRFLOW

The upgraded vertical GPU kit provides more room for bottom-mounted fans and radiators to increase the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.

CUSTOM WATER COOLING

SUPREME THERMAL CONTROL

With the upright GPU kit, users can move their water-cooled GPU next to the motherboard. This opens up the main chamber of the chassis, allowing simpler and more efficient tube runs to reach the components, and creating a restriction-free chimney-style airflow that allows the top and bottom radiators to perform more effectively.

SPACIOUS COOLING SUPPORT

The O11D EVO features sufficient space to accommodate 3x 360mm radiators, and up to 10 fans.

MASSIVE STORAGE CAPACITY

Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.

Mounting points for a 60mm fan are provided on the hard drive cage, located in the second chamber, to improve the temperature of hard drives. The same location can be used to mount a fan hub.

CLEAN LOOK

The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.

PERSONALIZED ARGB LIGHTING STRIP

The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.

FRIENDLY BUILDING PROCESS

EASILY REMOVABLE PANELS

The new mechanism to mount the side panels simplifies the process to reach the interior of the case by eliminating the need to first open the top panel.

STRUGGLE-FREE FAN BRACKETS

While each fan bracket features a quick-release design, they can be fixed to the chassis via a straightforward process.

The side bracket can be oriented in two ways to provide more clearance for fan/radiator combinations next to the motherboard.

EFFORTLESS CABLE MANAGEMENT

The O11D EVO optimizes the user’s ability to cable manage their system with a dual-chamber design and a removable bracket.

RELOCATABLE I/O PORT

At the bottom of the chassis, the I/O module can be relocated to 3 different locations without the use of any tools.

LOCATION 1

The default mode can be reached from the front.

LOCATION 2

Without any tools needed, the I/O module can be moved to the left side of the chassis.

LOCATION 3

Flip the chassis and change the position of the I/O to the right side for a PC in Reverse Mode.

LOCATION 4

Optional Accessory—Top I/O

Optimized for PC located on the floor, the top I/O additional accessory moves the chassis I/O at the top.

OPTIONAL ACCESSORIES

ADDITIONAL I/O PORTS

Double the number of USB ports for a total of 4 × USB 3.0 Type-A and 2 × USB 3.1 Type-C with the additional accessory.

POTENTIAL FOR DUAL PSU

The drive cage can be removed to make place for a second PSU, or be switched to a lower position.

ANTI-SAG BRACKET FOR PERFECTLY HORIZONTAL GPU

The GPU anti-sag bracket is included for displaying hardware through the seamless front and side tempered glass panels.

IN COLLABORATION WITH DER8AUER

In continuation of the O11D family, LIAN LI has collaborated with Der8auer and the community to finalize the O11D EVO design. Thanks to his contribution, a LIAN LI badge with De8auer’s name is provided. Users can place it on the cable management bar in their desired orientation.

5 OPTIONAL ACCESSORIES

VERTICAL GPU KIT

Black / White

Show off the GPU and increase airflow at the lower or upper position according to the clearance needed at the bottom.

UPRIGHT GPU KIT

Black/ White

Holds thin and thick GPUs next to the motherboard for unrestricted chimney-style configuration.

ADDITIONAL I/O KIT

Black/ White

Increase the number of ports with an additional USB 3.1 Type-C and two USB 3.0 Type-A.

FRONT MESH KIT

Black/ White/ Grey

Replaces the front glass panel with a mesh panel and support brackets for up to 3x120mm or 2x140mm fans at the front.

TOP I/O KIT

Black/ White/ Grey

Enables PC placed on the floor to have top accessible IOs.

Specifications

• PRODUCT NAME : O11 DYNAMIC EVO
• MODEL : O11DEW WHITE
• COLOR : White
• DIMENSION : (D)465mm × (W)285mm × (H)459mm
• MATERIAL : 4mm Aluminum

                                    4mm Tempered Glass

                                    1mm Steel Structure

• MOTHERBOARD SUPPORT : E-ATX (width: under 280mm)/ATX /M-ATX/ITX
• PSU SUPPORT : 220mm
• FAN SUPPORT : Top: 120mm × 3 or 140mm × 2

                                            Side: 120mm × 3 or 140mm × 2

                                            Bottom: 120mm × 3 or 140mm × 2

                                            Rear: 120mm × 1

• On Drive Cage: 60mm × 1
• RADIATOR SUPPORT : Top: 360mm × 1 or 280mm × 1

                *Total max thickness: 87.5mm

                                                         Side: 360mm × 1 or 280mm × 1

                *Inner scenario total max thickness:

                                                            83mm(120mm fan on top and bottom)

                                                            63mm(140mm fan on top and bottom)

                *Outer scenario total max. thickness：

                                                            120mm(120mm fan on top and bottom)

                                                            100mm(140mm fan on top and bottom)

                                                            Bottom: 360mm × 1

                *Total max thickness: 87.5mm

• DRIVE SUPPORT : Bottom：2.5” SSD × 4 or 3.5” HDD × 2

                                                Side：2.5” SSD × 4 or 3.5” HDD × 2

• Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
• Cable Management Bar：2.5” SSD × 2
•             *Only 9 sets of 2.5” SSD mounting pads are provided
• GPU LENGTH CLEARANCE : 426 mm
• CPU HEIGHT CLEARANCE : 167 mm
• EXPANSION SLOTS    : 8
• I/O PORTS : 2 × USB 3.0

                                    1 × USB 3.1 TYPE-C,

                                    1 × HD AUDIO/ MIC

• LED Color and Mode button

                                Reset Button

                                Power Button

• DUST FILTER : Bottom × 1
