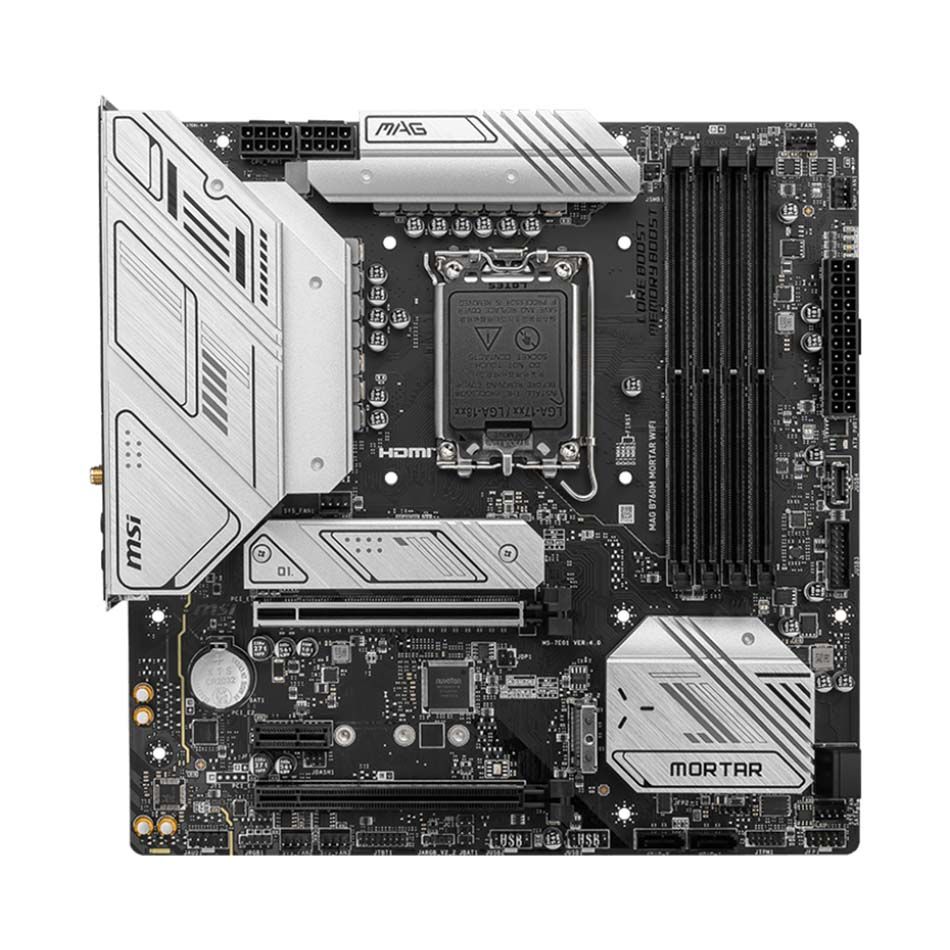

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard - Black

MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard - Black

The MAG series fights alongside gamers in pursuit of honor.

With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

Water Cooling

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

STORAGE

FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G

Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

2.5G LAN & WI-FI 6E

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

    Wi-Fi 6E

    Bluetooth 5.3

    2.5G LAN

Specification

• Chipset : INTEL B760
• CPU SUPPORT : Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

                                LGA1700

• Memory : 4x DDR5, Maximum Memory Capacity 128GB

             Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/     5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 7000+ MHz

    • 1DPC 2R Max speed up to 6600+ MHz

    • 2DPC 1R Max speed up to 6400+ MHz

    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Supports Intel® Extreme Memory Profile

• Onboard Graphics : Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

            Support DP 1.4, maximum resolution of 4K 60Hz*

            *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

                                                1x HDMI™

                                                1x DisplayPort

• EXPANSION SLOT : 2x PCI-E x16 slot

                                                    Supports x16/x4

                                                    1x PCI-E x1 slot

                                                    PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

                                                    PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

                                                    PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

• Storage : 2x M.2 slot

                                M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

                                M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

                                4x SATA 6G port

• RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB : 4x USB 2.0 (Rear)

                        4x USB 2.0 (Front)

                        2x USB 3.2 Gen1 Type A (Front)

                        3x USB 3.2 Gen2 Type A (Rear)

                        1x USB 3.2 Gen2 Type C (Front)

                        1x USB 3.2 Gen2x2 Type C (Rear)

• LAN : Realtek® 2.5Gbps LAN
• WIRELESS / BLUETOOTH : Intel® Wi-Fi 6E

            The Wireless module is pre-installed in the M.2 (Key-E) slot

            Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

            Supports 802.11 a/ b/ g/ n/ ac/ ax

            Supports Bluetooth® 5.3, FIPS, FISMA

            * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.

• Audio : Realtek® ALC897 Codec

                            7.1-Channel USB High Performance Audio

                            Supports S/PDIF output

• Internal I/O : 1x Power Connector(ATX_PWR)

                                    2x Power Connector(CPU_PWR)

                                    1x CPU Fan

                                    1x Pump Fan

                                    4x System Fan

                                    2x Front Panel (JFP)

                                    1x Chassis Intrusion (JCI)

                                    1x Front Audio (JAUD)

                                    1x TBT connector (JTBT, supports RTD3)

                                    1x Tuning Controller connector(JDASH)

                                    2x Addressable V2 RGB LED connector (JARGB_V2)

                                    1x RGB LED connector(JRGB)

                                    1x TPM pin header(Support TPM 2.0)

                                    4x USB 2.0

                                    2x USB 3.2 Gen1 Type A

                                    1x USB 3.2 Gen2 Type C

• LED FEATURE : 4x EZ Debug LED
• BACK PANEL PORTS : USB 2.0

                                                        DisplayPort 1.4

                                                        USB 3.2 Gen 2 10Gbps Type-A

                                                        2.5G LAN Port

                                                        Wi-Fi / Bluetooth Antenna

                                                        HD Audio Connectors

                                                        HDMI™ 2.1 Port

                                                        USB 3.2 Gen 2x2 20Gbps Type-C

                                                        Optical S/PDIF OUT

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension : mATX

                                243.84mmx243.84mm
