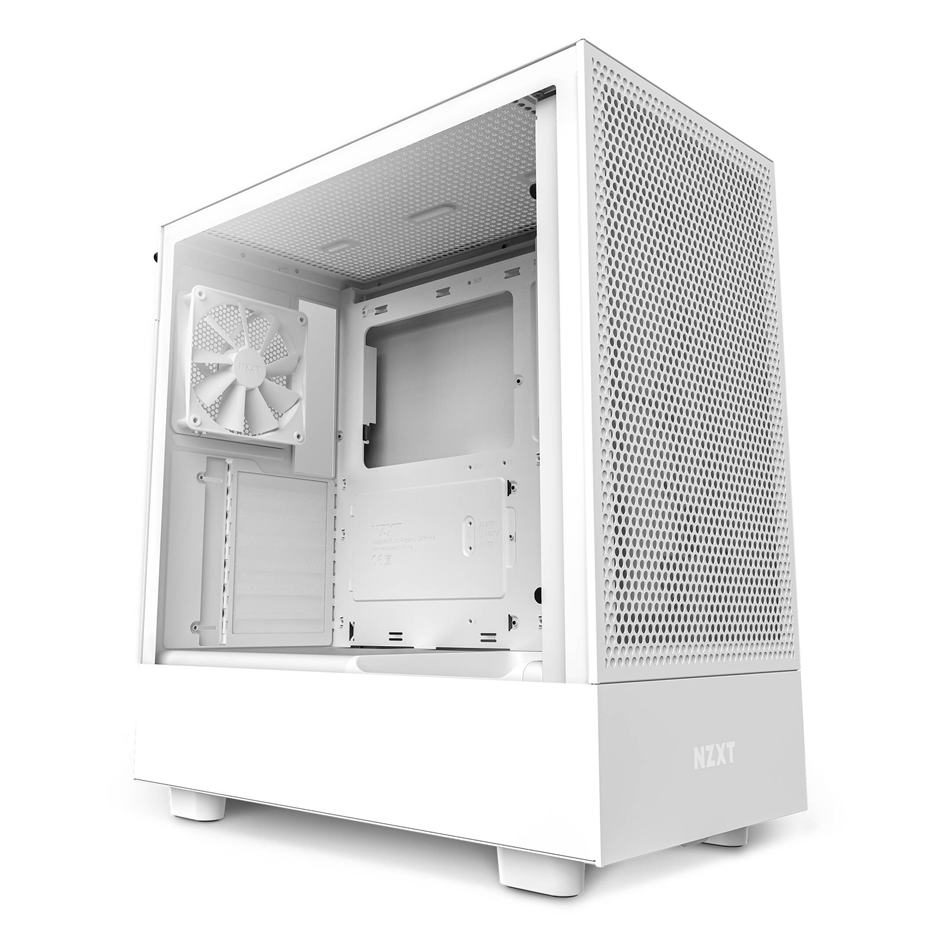

NZXT H5 Flow Edition ATX Mid Tower Case - White
The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Specifications:-
KEY SPECS
- Motherboard Support : Mini-ITX, Micro-ATX, ATX
- Enclosure Type : Mid-Tower
- Case Material : SGCC Steel, Ultra-clear Tempered Glass
DIMENSIONS
- Height : 464mm (With Feet)
- Width : 227mm
- Depth : 446mm
- Weight : 7.01 kg
COMPATIBILITY & CLEARANCE
- Max CPU Cooler Clearance : Up to 165mm
- Max GPU Clearance : Up to 365mm
- Front Radiator Clearance : 45mm
- Cable Management : Up to 23mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A : 1
- USB 3.2 Gen 2 Type-C : 1
- Headset Audio Jack : 1
EXPANSION SLOTS
- Standard : 7
- Vertical : 0
DRIVE BAYS
- 2.5" : 1+1
- 3.5" : 1
FAN SUPPORT
- Front : 2 x 120mm / 2 x 140mm
- Top : 2 x 120mm
- Rear : 1 x F Series Quiet 120mm (Case Version) included
- Bottom : 1 x F Series Quiet 120mm (Case Version) included
RADIATOR SUPPORT
- Front : Up to 280mm
- Top : Up to 240mm
- Rear : Up to 120mm
FAN SPECS
- Model : F120Q (Case Version)
- Speed : 1200 ± 240RPM
- Airflow : 62.18 CFM
- Static : 1.05 mm - H2O
- Noise : 25.1 dBA
- Fan Connector : 3-pin
Inside the Box
- H5 Flow Case : 1
- Front I/O split cables : 1
- Brown box, PE bag, polyform, manual, accessory box & parts (including the screws) : 1
