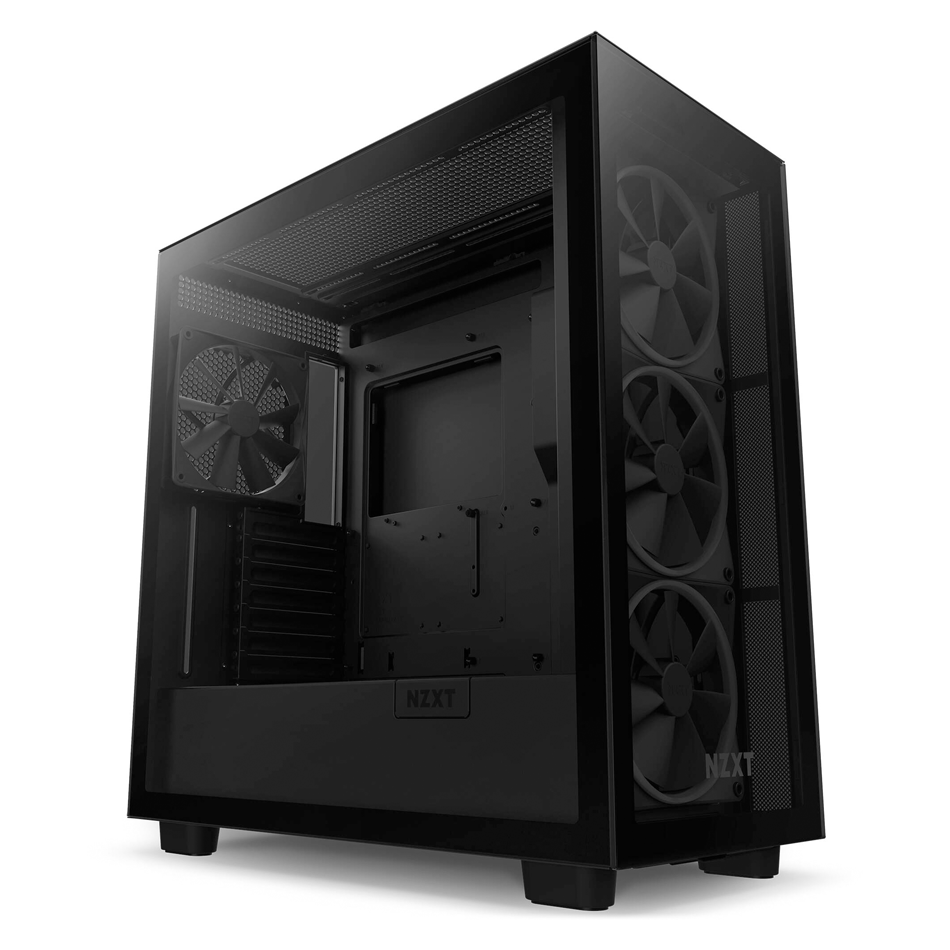

NZXT H7 Elite Edition ATX Mid Tower Case - Black (2023)

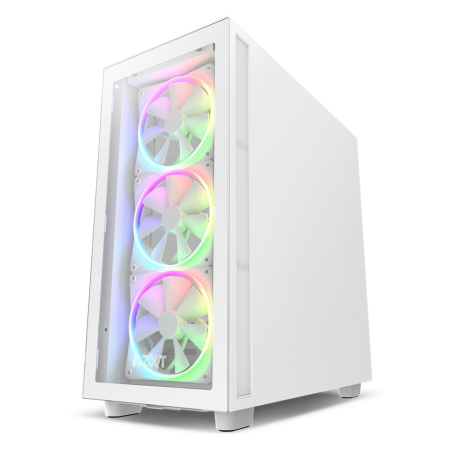

This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
Specifications:-
KEY SPECS
- Motherboard Support : Mini-ITX, Micro-ATX, ATX
- Enclosure Type : Mid-Tower
- Case Material : SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
- Height : 505mm (With Feet)
- Width : 230mm
- Depth : 480mm
- Weight : 11.36 kg
COMPATIBILITY & CLEARANCE
- Max CPU Cooler Clearance : Up to 185mm
- Max GPU Clearance : Up to 400mm
- Front Radiator Clearance : 60mm
- Top Radiator Clearance : 30mm
- Cable Management : 18-22mm
FRONT I/O PORTS
- USB 3.2 Gen 1 Type-A : 2
- USB 3.2 Gen 2 Type-C : 1
- Headset Audio Jack : 1
RGB AND FAN CONTROLLER
- Fan Channels : 3
- NZXT RGB Connector : 6 (Support up to 120 LEDs)
EXPANSION SLOTS
- Standard : 7
- Vertical : 0
DRIVE BAYS
- 2.5" : 4+2
- 3.5" : 2
FAN SUPPORT
- Front : 3 x 120mm / 3 x 140mm
- Top : 3 x 120mm / 2 x 140mm
- Rear : 1 x 120mm / 1 x 140mm
- Filters : All Air Intakes
RADIATOR SUPPORT
- Front : Up to 360mm with Push/Pull
- Top : Up to 360mm
- Rear : Up to 140mm
FAN SPECS
- Model : F140Q (Case Version)
- Speed : 1200 ± 240RPM
- Airflow : 99.56 CFM
- Static Pressure : 1.14 mm-H2O
- Noise : 24.18 dBA
- Fan Connector : 3-pin
FAN SPECS
- Model : F140 RGB
- Speed : 500 - 1800 RPM
- Airflow : 24.85 - 89.48 CFM
- Static Pressure : 0.94 - 3.39 mm-H2O
- Noise : 20 - 32.5 dBA
- Fan Connector : 4-pin
Inside the Box
- H7 Elite Case : 1
- 140mm Quiet Airflow Fan (Case Version)1
- 140mm RGB Fan : 3
- RGB and Fan Controller : 1
- Installation Accessories : 1
- Manual
