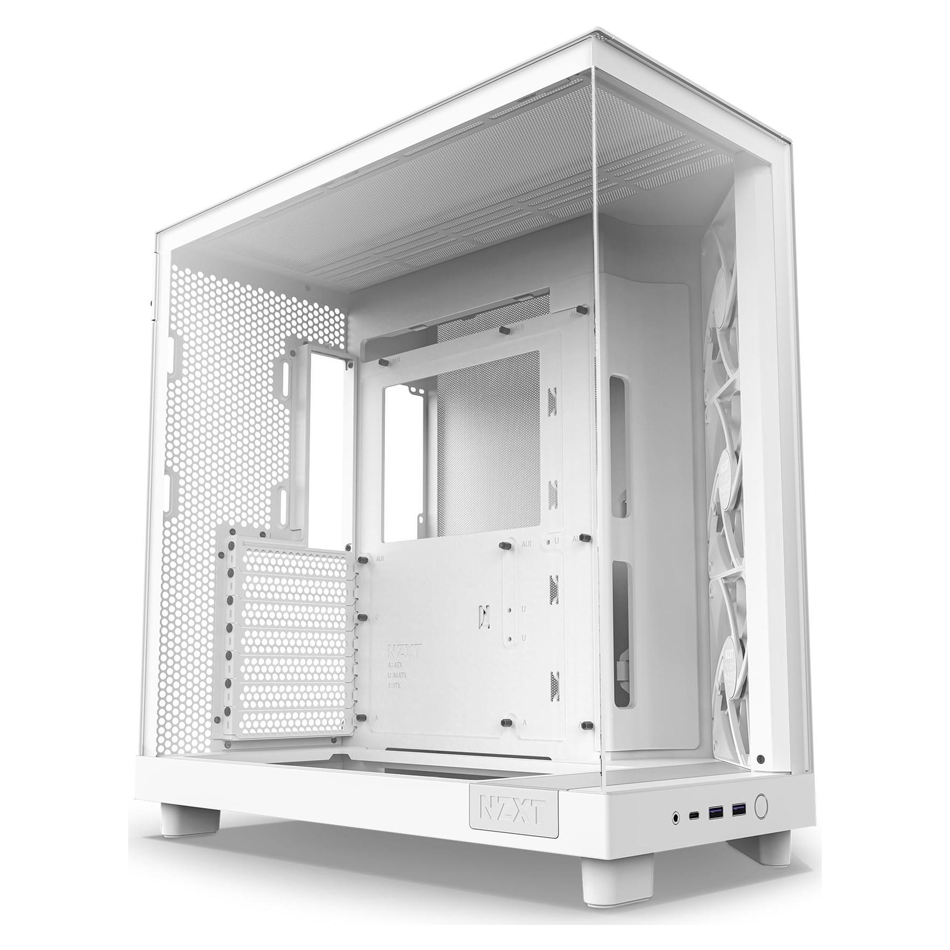

NZXT H6 Flow Compact Dual-Chamber ATX Mid Tower Case - White
Compact Dual-Chamber Mid-Tower Airflow Case
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Panoramic Paneling
Wraparound glass provides an unobstructed view of the inside.
Compact Dual-Chamber
Improves cooling performance and creates an uncrowded aesthetic.
Out-of-the-Box Cooling
3 x 120mm fans are angled for optimal out-of-the-box cooling.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
Cable Management
Easily manage cables with the wide channels and included straps.
Tool-Free Entry
Access the top and side panels without tools for quick upgrades.
Spacious Support
Up to a 360mm radiator in the top and clearance for a 365mm GPU.
Specifications
Key Specs
- Motherboard Support: ATX, Micro-ATX, Mini-ITX
- Enclosure Type: Mid-Tower
- Case Material: SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
Dimensions
- Height (with feet): 435 mm / 17.13 in
- Width: 287 mm / 11.3 in
- Depth: 415 mm / 16.34 in
- Weight: 9.4 kg
Compatibility & Clearance
- CPU Cooler Height: 163 mm / 6.42 in
- GPU Length: 365 mm / 14.37 in
- PSU Length: 200 mm / 7.87 in
- Cable Management: 91 mm / 3.58 in
- Top Radiator: 30 mm / 1.18 in
Front I/O Ports
- USB 3.2 Gen 1 Type-A: 2
- USB 3.2 Gen 2 Type-C: 1
- Headset Audio Jack: 1
Expansion Slots
- Standard : 7
- Vertical : 0
Drive Bays
- 2.5" : 2
- 3.5" : 1
Fan Support
- Front-Right : 3 x 120 mm (3 x F120Q included)
- Top : 3 x 120 mm / 2 x 140 mm
- Bottom : 2 x 140 mm
- Rear : 1 x 120 mm
- Filters : High-Performance Mesh
Radiator Support
- Top: Up to 360 mm
- Rear: Up to 120 mm
Fan Specs
- Model: F120Q Airflow Fan (Case Version)
- Speed: 1200 ± 240RPM
- Airflow: 62.18 CFM
- Static: 1.05 mm - H2O
- Noise: 25.1 dBA
- Fan Connector: 3-pin
General
- Model Number: CC-H61FW-01 (White)
- UPC: 810074844130 (White)
- EAN: 5056547204048 (White)
Inside the Box
- H6 Flow : 1
- F120Q Airflow (Case Version) : 3
- Installation Accessories : 1
- User Guide : 1
